Product Description

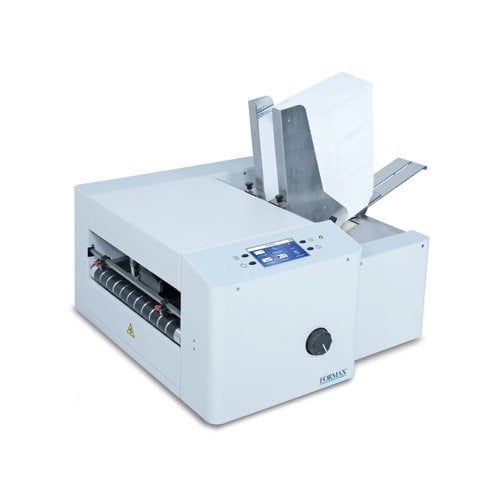

This Formax AP3 Monochrome Inkjet Digital Address Printer with Integrated Feeder is a mid-range unit that utilizes dual print banks and processes up to 26,000 #10 envelopes an hour, with variable print resolutions up to 600 DPI, and the ability to print on UV coated stock. It combines user-friendly features with speed and versatility for quality on-demand printing. The integrated feeder holds up to 500 #10 envelopes at once, and can handle materials up to 3/8” thick. Its user-friendly 4.5" color touchscreen features an adjustable backlight, and allows users full control of its functions, including the ability to store and recall common print jobs, up to 16GB. Two independent 1.5” print heads use 6 thermal inkjet cartridges simultaneously to produce an image area up to 3” x 17”, with available overlap, and can be adjusted to a maximum vertical print range of 11”. Plus, various inks are available to print on a wide range of stocks including coated and uncoated media. Additional user-friendly features include on-screen ink monitoring for both percentage used and approximate pieces remaining, USB 3.0/LAN connectivity, the ability to print any TrueType font, spot color capability, and batch/job/lifetime counters. Optional conveyor stacker is available for easy handling after printing, and infrared dryer. With the perfect balance of speed, excellent print quality and capability, the Formax AP3 Monochrome Inkjet Digital Address Printer with Integrated Feeder is an ideal choice for mid-range mailers, quick-print operations, large organizations, schools & universities.
Product Details
- Operating Features

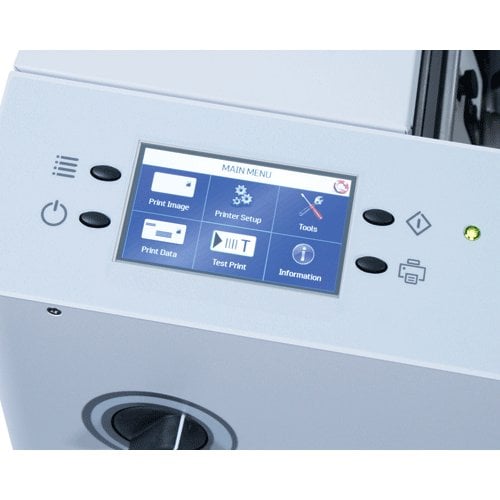

- User-Friendly Touchscreen: 4.5" color touchscreen with adjustable backlight
- Fast: Prints up to 26,000 #10 envelopes per hour, up to 34,000 postcards per hour

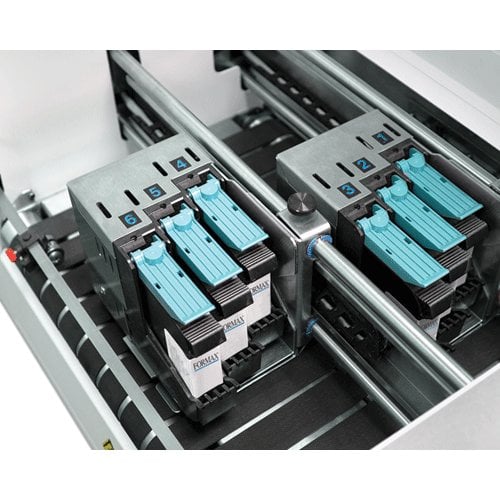

- Two Independent Print Heads: 3-pen stitched + 3-pen stitched design
- Job Memory: Store and recall common print jobs, up to 16GB

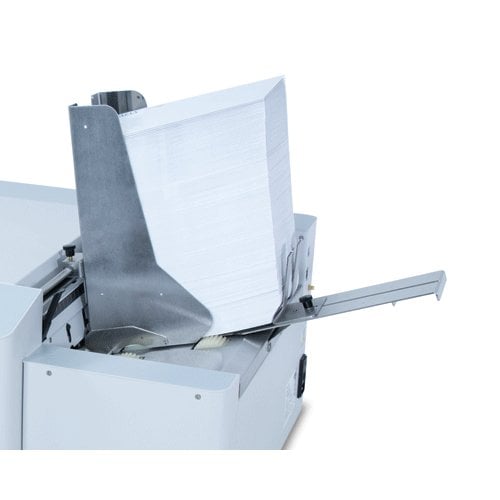

- Integrated Feeder: Holds up to 500 envelopes
- USB 3.0 / LAN Connectivity: Easily connect to your print source
- Batch / Job / Lifetime Counters: Keep an accurate count of addressed pieces
- On-Screen Ink Monitor: Displays ink status (% used and approximate pieces remaining)
- Printing Features
- Inkjet Technology: Uses 6 thermal inkjet cartridges
- One-Pass Print Options: Address, Address+Return, Address+Return+Indicia
- Variable Print Resolution: 150 DPI (600 x 150) up to 600 DPI (600 x 600)
- Image Area: Up to 3" high by 17" long
- True Type Enabled: Print any True Type font installed on a PC
- Spot Color Capability: Blue, Red, Green, Invisible
- Versatile Print: Prints on a variety of coated and uncoated stocks
- Options / Supplies
- AP10 3-foot Conveyor/Stacker with Tabletop Legs and Catch Tray: Neatly holds printed pieces for easy removal
- Infrared Dryer: Provides quicker drying time
- Bulk Mailer Software: PAVE/CASS presorting, data management, Intelligent Mail barcode support
- Thermal Inkjet Cartridges: Available in various formulations for UV coated, non-coated, quick-drying, color, and invisible security inks
Specifications
- Print Technology: Thermal inkjet, 6 high capacity cartridges
- Addressing Speed:
- Up to 26,000 #10 envelopes/hour
- Up to 34,000 postcards/hour
- Print Quality: Up to 600 x 600 DPI
- Imaging Area: Up to 3" x 17"
- Material Size:
- Min: 5" L x 3" W
- Max: 15" L x 13.5" W
- Material Thickness: Up to 9.5mm / 3/8"
- Duty Cycle: Up to 1,000,000 per month
- Memory: Up to 16GB
- Counters: Batch, job, lifetime
- Print Head Layout: 3-pen stitched + 3-pen stitched design
- Fonts: All TrueType fonts available on PC
- Ink Monitor: Intelligent cartridge tracking
- Feeder Capacity: Up to 500 #10 envelopes
- Print Orientation: Right to left
- Software: Drivers for Windows 7 and higher
- PC Interface: USB 3.0, Ethernet
- Diagnostics: Built into firmware
- Dimensions: 29" L x 23" D x 21" H
- Weight: 80 lbs.
- Power: 115VAC 50/60 Hz
- Manufacturer's Warranty:90 Day Manufacturer's Warranty on Parts and Labor
Compare to Similar Formax Printers
-
Model NameModelPrint TechnologyAddressing SpeedPrint QualityImaging AreaMaterial SizeMaterial ThicknessDuty CycleMemoryCountersPrint Head LayoutFontsInk MonitorFeeder CapacityPrint OrientationSoftwarePC InterfaceDiagnosticsDimensionsWeightPowerWarranty
-
Formax AP2
Thermal inkjet, 4 high capacity cartridgesUp to 22,000 #10 envelopes/hour
Up to 30,000 postcards/hourUp to 600 x 600 DPIUp to 2" x 15"Min: 5" L x 3" W
Max: 15" L x 13.5" WUp to 6.3mm / 1/4"Up to 500,000 per monthUp to 16GBBatch, job, lifetime4 pen stitched designAll TrueType fonts available on PCIntelligent cartridge trackingUp to 500 #10 envelopesRight to leftDrivers for Windows 7 and higherUSB 3.0, EthernetBuilt into firmware23" L x 22" D x 19" H60 lbs.115VAC 50/60 Hz90 day warranty on parts and labor -
Formax AP3
Thermal inkjet, 6 high capacity cartridgesUp to 26,000 #10 envelopes/hour
Up to 34,000 postcards/hourUp to 600 x 600 DPIUp to 3" x 17"Min: 5" L x 3" W
Max: 15" L x 13.5" WUp to 9.5mm / 3/8"Up to 1,000,000 per monthUp to 16GBBatch, job, lifetime3-pen stitched + 3-pen stitched designAll TrueType fonts available on PCIntelligent cartridge trackingUp to 500 #10 envelopesRight to leftDrivers for Windows 7 and higherUSB 3.0, EthernetBuilt into firmware29" L x 23" D x 21" H80 lbs.115VAC 50/60 Hz90 day warranty on parts and labor -
Formax AP4
Thermal inkjet, 8 high capacity cartridgesUp to 26,000 #10 envelopes/hour
Up to 34,000 postcards/hourUp to 600 x 600 DPIUp to 4" x 50"Min: 5" L x 3" W
Max: 50" L x 15" WUp to 12.7mm / 1/2"Up to 1,250,000 per monthUp to 16GBBatch, job, lifetime2-pen + 4-pen + 2-pen stitched designAll TrueType fonts available on PCIntelligent cartridge trackingUp to 500 #10 envelopes with optional AP12 FeederLeft to rightDrivers for Windows 7 and higherUSB 3.0, EthernetBuilt into firmware34" L x 25" D x 12" H96 lbs.115VAC 50/60 Hz90 day warranty on parts and labor
