Product Description

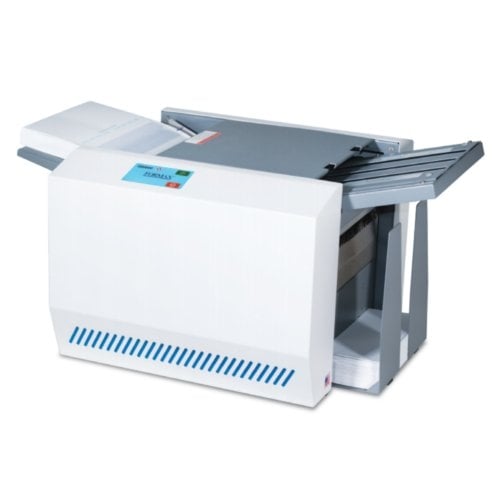

The FD 1506 AutoSeal is an ideal mid-volume pressure-seal solution featuring an innovative graphics-based color touchscreen control panel that uses internationally-recognized symbols for smart, intuitive operation. Capable of processing up to 100 forms per minute and handling documents up to 14” in length, it offers excellent speed and versatility for a wide range of applications including checks, invoices, marketing materials, school reports, and more. Fold plates are clearly marked for four standard fold types Z, C, Uneven Z, and Half folds and can be easily adjusted for custom folds such as Eccentric Z and C-fold mailers, ensuring quick setup right out of the box. Its compact design, simple load-set-start workflow, and proven Formax engineering make the FD 1506 an efficient, economical, and reliable choice for offices, schools, and organizations with mid-volume mailing needs.
Product Details

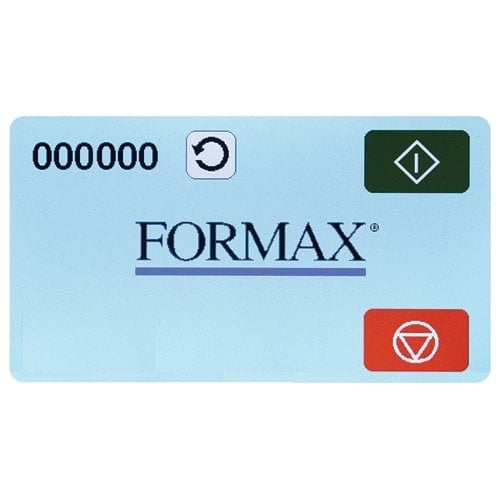

- Color Touchscreen Control Panel: Easy, intuitive operation.
- Compact Desktop Design: Saves space in any office environment.
- Drop-In Top Feed System: Quick and convenient document loading.
- 14” Form Length Capability: Handles a wide range of document sizes.
- High-Speed Folding: Processes up to 100 forms per minute.
- Multiple Fold Types: Z, C, uneven Z and C, half fold, and custom folds.
- 200-Form Hopper Capacity: Reduces interruptions for long runs.

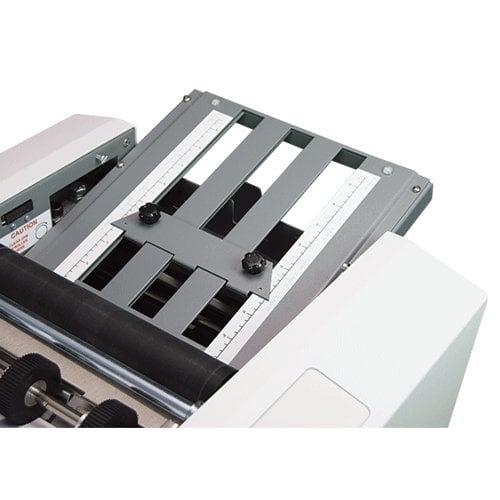

- Pre-Marked, Easy-Adjust Fold Plates: Simplifies setup and adjustments.
- Six-Digit Resettable Counter: Accurately tracks production.
- Adjustable Catch Tray: Keeps folded forms neatly organized.
- Adjustable Infeed Side Guides: Ensures precise document alignment.
Specifications
- Hopper Capacity: Up to 200 forms 20#
- Fixed Speed: Up to 100 forms per minute, based on 11” Z fold
- Paper Size: Up to 8.5” W x 14” L (216 x 356mm)
- Fold Types: Z, C, Uneven Z and C, Half, Custom
- Monthly Duty Cycle: Up to 35,000/month
- Dimensions: 24” L x 17” W x 13” H (610 x 432 x 330mm)
- Weight: 81 lbs (37kg)
- Power :
- FD Model: 120 Volts AC 50/60Hz
- FE Model: 220 Volts AC 50/60Hz
- Document Sequence: Standard sequence is A-to-Z input, Z-to-A output
- Certifications: UL, CE, and CUL Approved
- Manufacturer's Warranty : 90 day Manufacturer's Warranty on parts and labor
- Spiral / Binding101 Part Number: 04FXFD1506
Compare to Similar Pressure Sealers
-
Model NameModelHopper CapacityFixed SpeedPaper SizeFold TypesMonthly Duty CyclePowerDimensionsWeightSafety CertificationsWarranty
-
AutoSeal FD 2006IL
N/APrinter dependentUp to 8.5" W x 14" LZ & V (all applications), *C (bottom check position only)Up to 100,000/month120 Volts AC, 50/60 Hz19" W x 46" L x 23" HN/AN/A90 day warranty on parts and labor -
AutoSeal FD-2006
Up to 250 sheets 24# (90gsm)Up to 8,000 sheets per hour - based on 11" (279mm) "Z" foldUp to 8.5" W x 14" L (216 W x 356 L mm)N/AUp to 75,000/monthFD Model: 120 Volts AC 50/60Hz25.75" L x 16.5" W x 14.25" H88.5 lbsUL , CUL, & CE Approved90 day warranty on parts and labor -
AutoSeal FD 1506 Plus
Up to 200 forms 20# (90gsm)Up to 6,250 forms per hourUp to 8.5" W x 14" L (216 W x 356 L mm)Z, C, Uneven Z, Uneven C, Half, Custom foldsUp to 35,000/monthFD Model: 120 Volts AC 50/60Hz and FE Model: 220 Volts AC 50/60Hz37" L x 17" W x 13" H (940 L x 432 W x 330 H mm)90 lbsUL , CUL, & CE Approved90 day warranty on parts and labor -
AutoSeal FD 1506
Up to 200 Sheets 20#Up to 100 sheets per minute - based on 11" "Z" foldUp to 8.5" W x 14" LN/AUp to 35,000/monthFD Model: 120 Volts AC 50/60Hz, FE Model: 220 Volts AC 50/60Hz24" L x 17" W x 13" H82 lbsUL, CE and CUL Approved90 day warranty on parts and labor
Video
Formax FD 1506 Pressure Sealer Demo Video
