Product Description

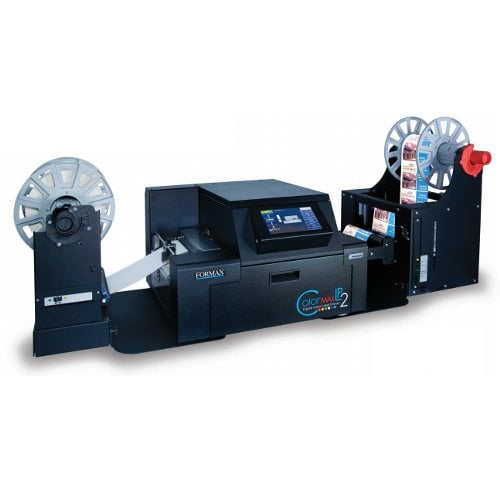

Replacing the discontinued ColormaxLP, The Formax ColorMaxLP2 High-Speed Digital Color Label Printer is a compact powerful unit that creates brilliant full-color labels at a speed of up to 60 feet per minute. The full-color 7" touchscreen gives operators complete control over the printing process, with an intuitive interface, image preview, and the ability to store print jobs for quick and easy processing. The revolutionary print engine design allows users to service and maintain the print head “on the fly,” keeping the web intact throughout print runs, unlike its predecessor. The Unwinder/Rewinder System easily handles continuous roll-to-roll label production, using rolls up to 10” in outside diameter. The thermal Memjet print head has 70,400 ink nozzles and no moving parts, which provides higher speeds and lower maintenance costs. With a print resolution of up to 1600 x 1600 dpi it produces high-quality crisp text, barcodes, and images with vibrant color and deep, rich black tones. The ColorMaxLP2 handles a wide range of substrates including paper, polyester, polypropylene and vinyl label stocks, and utilizes 5 high-capacity 250ml ink tanks (CMYKK) for longer uninterrupted print runs. It features two modes of operation, continuous roll-to-roll using the unwinder/rewinder for larger runs, and print-and-cut utilizing the integrated cutter for short-run projects.Combining high speeds, stunning CMYK output, and a user-friendly interface, the Formax ColorMaxLP2 High-Speed Digital Color Label Printer is an ideal solution for all-day label printing in a production environment.
Product Details
- High-Speed Color Printing: Prints labels at up to 12 inches per second / 60 feet per minute
- Inkjet Technology: Full-color CMYK printing with Memjet thermal technology

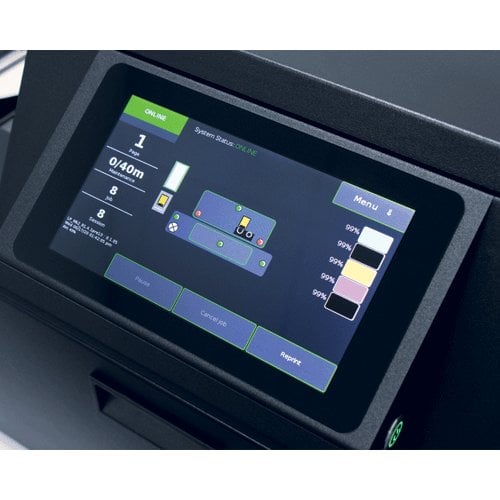

- Intuitive Full-Color Touchscreen: The user-friendly interface allows operators to recall stored files, run and pause jobs, and perform maintenance operations

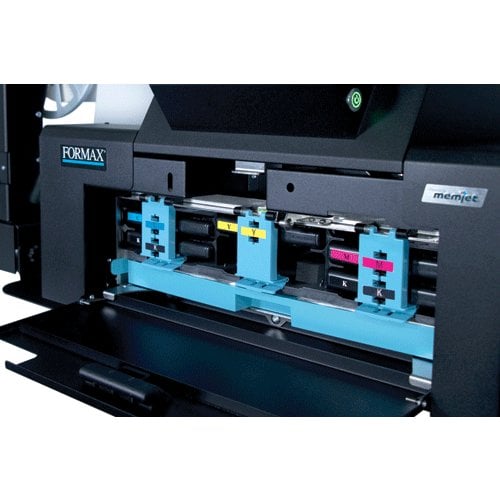

- Memjet Print Head: Stationary print head features 70,400 ink nozzles and no moving parts for higher speeds and lower ink and maintenance costs
- Professional Image Quality: Print resolution of up to 1600 x 1600 dpi produces exceptionally crisp text, barcodes, and images with vibrant color and deep black tones
- Unwinder/Rewinder System: Allows for continuous roll-to-roll label production. Easily handles rolls up to 10" in outside diameter for high-volume jobs and reduced media costs
- Mid-Job Print Head Maintenance: Revolutionary print engine design allows for mid-job cleaning “on the fly," making it ideal to maintain production print rates as it keeps the web intact throughout the print run
- Quick Start: Using a "warm start," it begins printing in under 10 seconds
- Two Operating Modes: Continuous roll-to-roll for large production runs, and an integrated cutter which allows for easier processing of short-run jobs
- Rugged, Steel Construction: Designed for all-day printing in a production environment
- Integrated Cutter: Powered cutter makes quick work of short-run projects
- Ultra-Low Ink Cost: Five high-capacity ink cartridges (CMYKK) provide extremely low ink cost per print

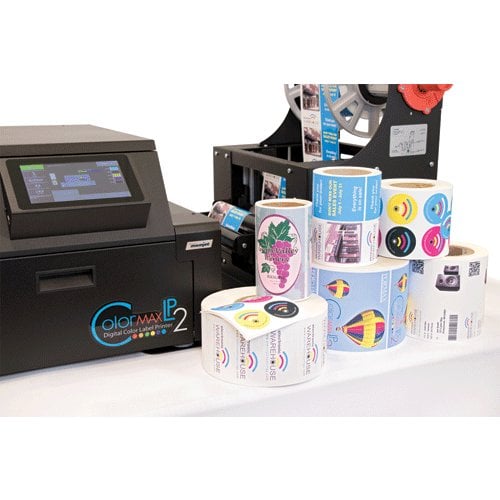

- Compatible with a Range of Substrates: Paper, polyester, polypropylene and vinyl label stocks
- File Storage: Easily recall and edit stored files
- Options / Supplies
- Inkjet Inks: High-capacity ink tanks for ultra low print costs
- CJ-16: Adjustable-height cabinet
- CJ-20: 1600 dpi Memjet thermal inkjet print head
Specifications
- Print Speed: Up to 12 inches per second / 60 fpm
- Label Media Size:
- Width: 2" - 9" (50.8 - 229mm)
- Length: 2" - 48" (50.8mm - 1220mm)
- Label Thickness:
- Min: 0.005" (0.13mm)
- Max: 0.01" (0.3mm, including liner)
- Label Types: Paper, polyester, polypropylene, vinyl
- Print Resolution: Up to 1600 x 1600 dpi - 1600 x 800 dpi
- Print Width: Up to 8.5" (216mm)
- Media Sensors: Gap (movable), continuous, black mark
- Die-Cut Gap:
- Min: 0.125" (3.0mm)
- Max: 0.3" (8.0mm)
- Black Mark: 3mm wide, 25.4mm long on left
- Core Diameter: Requires 3" (76.2mm) cardboard core
- Unwinder/Rewinder: 10" (250mm) outside diameter
- Cutter: Integrated and powered
- Ink Tank Capacity: Cyan 250ml, Magenta 250ml, Yellow 250ml, Black 500ml
- Color Matrix: Up to 16.8 million colors
- Operating System: Windows 7, 8 and 10 (32 and 64 bit)
- Interfaces: USB 2.0, TCP/IP (Manual IP configuration or DHCP)
- Dimensions (printer): 22.5" W x 14" H x 20.5" D (572 x 356 x 521mm)
- Dimensions (with Unwind/Rewind System): 59.5" W x 23" H x 20.5" D (1512 x 585 x 521mm)
- Weight: 85 lbs (38.5kg)
- Electrical: AC 110V - 220V, auto-sensing
