Product Description

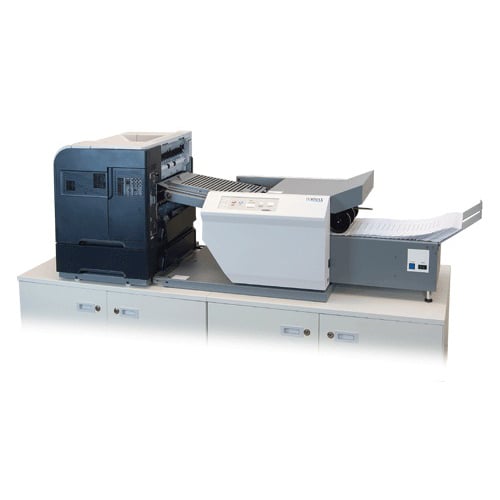

The FD 2002IL System allows operators to print, fold and seal pressure-sensitive one-piece mailers in one step, reducing processing time while increasing document security. The IL System works in-line with model-specific MICR and Non-MICR desktop laser printers. The fully-enclosed aper path is designed to conceal confidential documents, including PIN notices, check shool grade reports and health care information. The IL System incorporates the industry-leading FD 2002 AutoSeal wich features a user friendly LED control panel and pre-marked fold settings for 11" and 14" standard forms. The FD 2002IL is ideal for companies processings sensitive documents or those looking for a mid-volume in-line solution for processings pressure seal forms.
Product Details
- Print, Fold and Seal: One-step process eliminates excess document handling

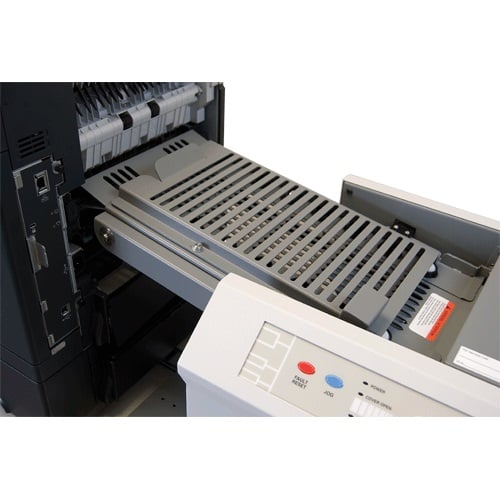

- Document Security: Enclosed paper path from the printer to pressure sealer ensures security
- Form Capabilities: Processes forms up to 14" in length
- Installation: Easy to install, no software required
- Alignment Base: Special alignment base holds the printer and pressure sealer securely and slides apart for easy access to the paper path and fold plates
- LED Control Panel: Notifies operator when power is on, a cover is open, the paper runs out, or if a fault occurs
- Fault Detector:Detects double feeding and any faults
- Dedicated Use: Designed for in-line use only
- Six-Digit Resettable Counter: For maximum audit control
- Optional Accessories: 18" Conveyor for neat and sequential stacking of processed forms and 2 Fully Enclosed Locking Cabinets for storage
Specifications
- Printer Compatibility: HP/Troy P3005, 4200,4250,4350 with two 500-sheet trays, HP/Troy P2015, with two 250-sheet trays (requires FD 2000-45IL Riser), HP/Troy P2055, with one 500-sheet tray, HP/Troy P4014, with one 500-sheet (Requires FD 2000-47IL Riser), Lexmark/Source T640, with one 500-sheet tray (requires FD 2000-46IL Riser), Xerox Phaser 4510 (Requires FD 2000-55IL printer adapter kit)
- Fold Types: Z & V (all applications), C (bottom check position only)
- Duty Cycle: Up to 50,000 pieces per month
- Paper Size: Up to 8.5" W x 14" L
- Power: 120 Volts AC 50/60Hz
- Dimensions (closed): 19" W x 46" L x 23" H
- Table Top Area Required: 20" W x 43" L
- Table Top Area Required (with conveyor): 20" W x 69" L
- Weight: 90
- Certifications: UL and CL Approved, CE Applied for
- Warranty:
- 90 day limited warranty on parts.
- Excluding wearables and labor.
