Product Description

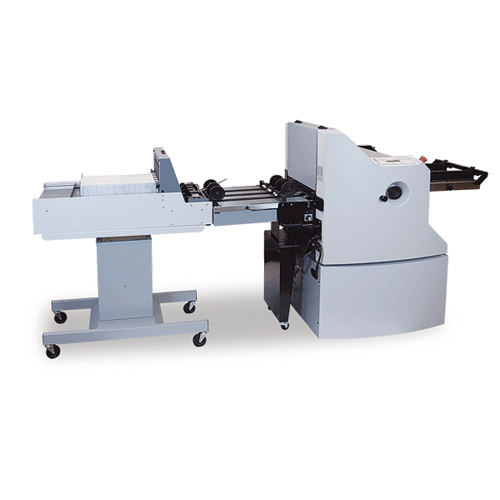

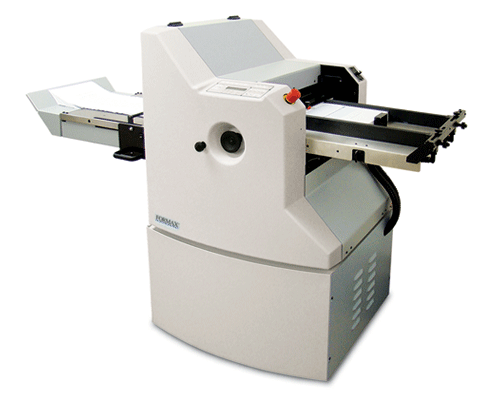

The Formax AutoSeal FD 2094 utilize patented pressure seal technology to efficiently process cut-sheet and continuous pressure seal forms in a mid-volume production environment. This pressure sealer is capable of processing up to 400,000 forms monthly at speeds of up to 28,000 forms per hour. The FD 2094 is fully- automated and uses a bottom air-fed system for continual loading of cut-sheet forms. This configuration is capable of separating, folding, and sealing continuous pressure seal forms in-line. The FD 2094 has six pre-programmed fold types with the ability to store up to three custom folds into memory. Fold plates and conveyor stacker wheels are set at the touch of a button, providing efficiency and ease of use. The high-capacity 31" output stacker is a standard feature and offers neat, sequential stacking of forms.
Product Details
- Bottom Air Feed: Allows for continual loading of forms
- Variable Speed Control: Up to 28,000 sheets per hour

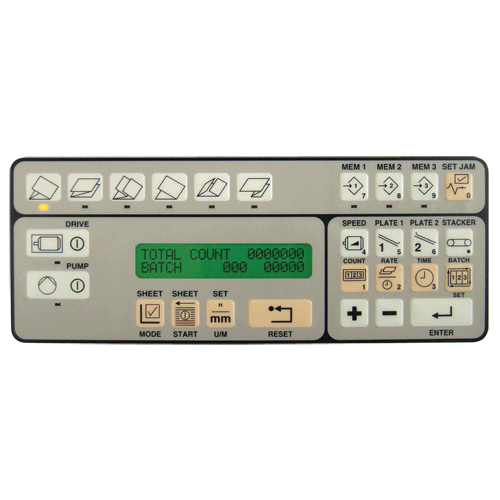

- Automatic Settings: Six pre-programmed folds and three custom folds can be saved for automatic set-up
- 20" Form Capacity: Flexibility to process forms up to 20" in length
- Fault Detector: Detects double feeding and any faults
- 7-Digit Resettable Counter: Provides total count or programmed batch count
- 31" Sequential Output Stacker: Automatic setting stacker with photo-eye for neat, sequential stacking of forms
- Interlocks: For fault detection and safety
- Static Eliminator: Built-in feature reduces static electricity
- Fold Types: Z, uneven Z, C, V, and custom folds
- Insulated Fold Plate Covers: For noise reduction
Specifications
- Hopper Capacity: Up to 350 sheets of 24lb
- Variable Speed: Up to 28,000 forms per hour
- Paper Size: 3" - 12" W x 5" - 20" L
- Duty Cycle: Up to 400,000 pieces per month
- Dimensions: 76" L x 27" W x 51" H
- Weight: 950lbs
- Fold Types: Z, uneven Z, C, V, and custom folds
- Power: 125V, 60Hz, 30Amp dedicated line (NEMA L5-30R Receptacle Required)
(Only one receptacle required) - Warranty: 90 Day Manufacturer Warranty
