Product Description

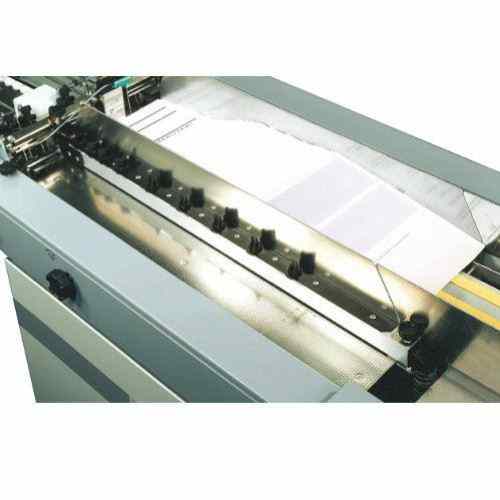

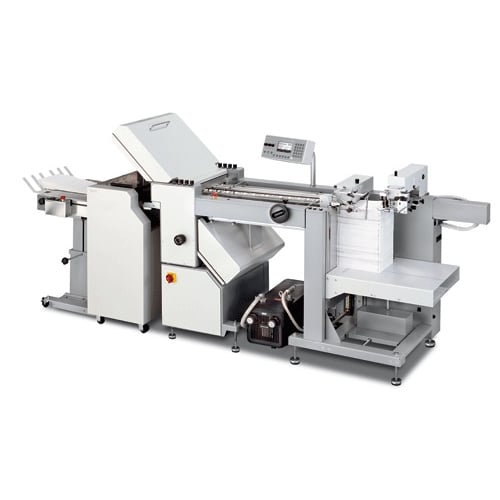

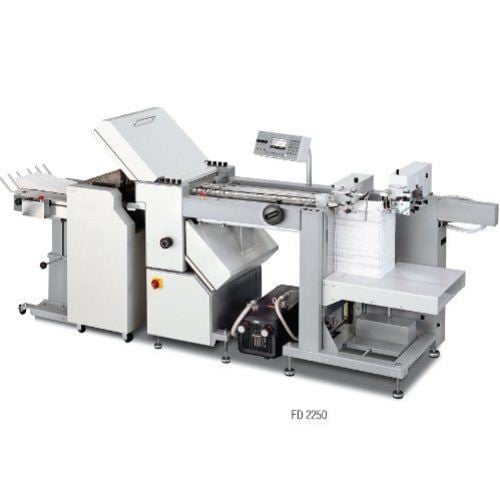

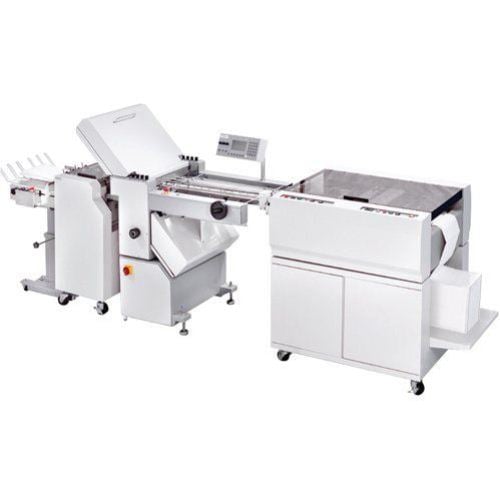

The Formax FD 2200 AutoSeal Series High-End Pressure Sealers are designed to handle the highest volume jobs with ease and dependability. The 2200 Series offers fully automated settings to provide for quick and easy setup of different jobs. Processing speeds of up to 40,000 forms per hour set the industry standard for speed and production capabilities. Four models are available in the 2200 Series which offer different in-feed options: the FD 2200 utilizes an air-feed system with a capacity of up to 500 forms: the FD 2200-EX offers an extended air-feed system to reach a capacity of up to 1000 forms; the FD 2250 utilizes a pile feed system to reach a total capacity of up to 3,500 loaded forms; and the FD 2280 works in-line with the Formax FD 676 Maxi Burster for processing continuous forms. All models produce fast and acurate folds to deliver a secure and timed-effective finished product ready for the mail. The 2200 Series clearly sets the new standard for high volume processing.
Product Details
- Heavy Duty Construction: Designed for high volume production jobs
- Feed Systems: Air-feed, extended air-feed, pile feed, and continuous forms with in-line FD 676 Maxi Buster
- Variable Speed Control: Up to 40,000 pieces per hour

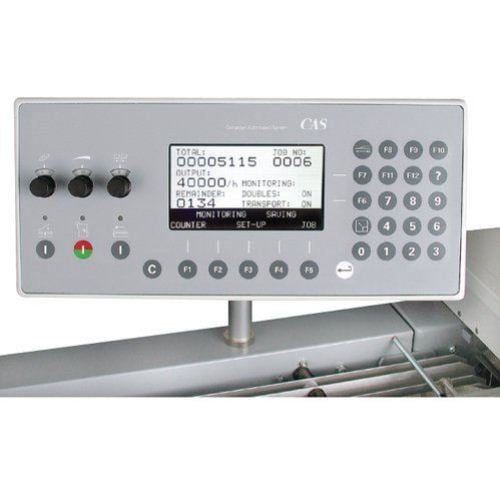

- Automatic Settings: Up to 60 applications can be programmed for automatic adjustment
- Counters: Six-digit resettable counter and batch counter
- Fold Plates: 4 insulated fold plates for varying sequence options
- Fold Types: Z, uneven Z, C, Half, and custom folds

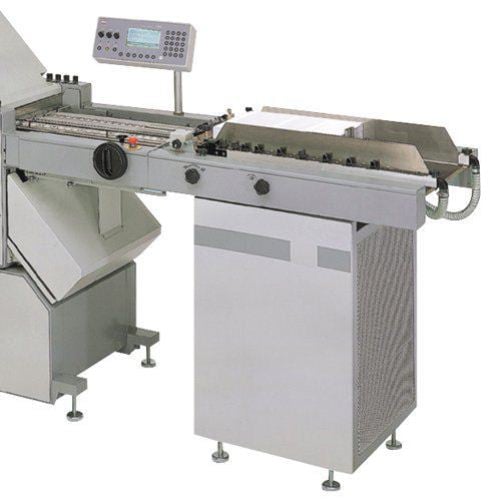

- Conveyor w/Photo Eye: Adjustable 28"- 42" conveyor for neat and sequential stacking
- Fault Detector: Detects double feeding and any faults
- Static Eliminator: Built-in feature reduces static electricity
- Interlocks: For fault detection and safety
- Combination Rollers: Steel & Polyurethane rolls for durability
Specifications
- Hopper Capacity: FD 2200 - 500, 24lb sheets / FD 2200-EX - 1000, 24lb sheets / FD 2250 - 3,500, 24lb sheets / FD 2280 - Continuous forms
- Variable Speed: Up to 40,000 sheets per hour - based on 11" Z-fold
- Paper Size: Up to 11.5" W x 25" L
- Power: 208V, three phase, 20Amp (Special three phase power required)
- NEMA L21-20P plug included, NEMA L21-20R receptacle required
- Duty Cycle: Unlimited
- Dimensions, Cut Sheet Models: 152" L x 30" W x 56" H
- Dimensions FD 2280: 167" L x 30" W x 56" H
- Weight: 1,200 lbs
- Delivery Requirements: Customer-supplied fork lift is required for installation and set-up
- Certification: UL Applied for
- Warranty:
- 90 day limited warranty on parts.
- Excluding wearables and labor.
