Product Description
The Formax FD-230 Semi-Automatic Creasing and Perforating Machine is specially designed for finishing printed materials. The creasing function prevents cracking of toner-based digital prints and ensures a clean, professional fold. The perforating function allows for easy separation of multiple printouts, tear-offs, postcards or tickets on a single sheet. User-friendly features include a touchscreen control panel, multiple creasing widths to accommodate various paper weights, and up to five programmable jobs for custom projects. The FD 230 automatically measures paper and sets the crease measurements based on the selected number of folds and is pre-set with five standard folds: 1/2 fold, 1/3 fold, 1/4 fold, Gate Fold and Book Cover. It has the capacity to crease laminated documents with ease, while the optional micro-perforating blade offers even greater flexibility for a wide range of projects. The FD 230 is ideal for small print shops, on-demand and in-plant operations finishing applications including greeting cards, postcards, brochures, invitations, book covers, tickets and more.
Product Details
- Semi-automatic electric creasing and perforating of printed sheets
- Reduces cracking of digital prints

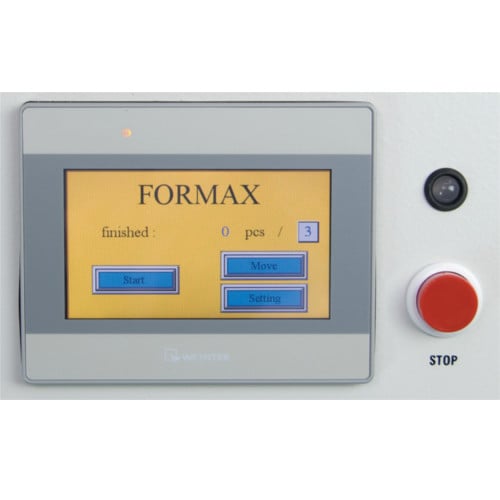

- Touchscreen control panel, featuring 8 languages
- Automatically measures paper and sets creases for standard folds, including 1/2, , Gate Fold and Book Cover Up to 5 programmable jobs
- Heavy duty metal construction for durability
- Manual input, motorized creasing and output
- Easy to adjust between creasing and perforating
- Creasing bar offers three widths to accommodate various paper weights Large work area for sheets up to 18” wide
- LED stop/go indicator helps avoid jams when loading paper
- High-quality “anvil” perforating function
Specifications
- Speed: Up to 1,500 sheets per hour (one crease)
- Paper Width: 4" (100mm) - 18" (457mm)
- Recommended Paper Weight: 80 - 400gsm (creasing) 80 - 250gsm (perforating)
- Creases Per Sheet: Up to 15
- Pre-set Crease Locations: 1/2 fold, 1/3 fold, 1/4 fold, gate fold, book cover
- Programmable Jobs: Up to 5
- Creasing Bars: 2 x CITO technology, 1 x iron channel
- Crease Width: CITO 1mm, paper thickness < .2mm (80 - 150gsm)
CITO 1.4mm, paper thickness .2 - .4mm (160 - 250gsm)
Iron channel, paper thickness .4 - .5 (250 - 400gsm) - Min / Max Distance of Creases: 0.079" (2mm) / 39.37" (1,000mm)
- Languages: English, French, Spanish, German, Italian, Russian, Greek, Czech
- Dimensions with Catch Tray: 16" H x 48" W x 28" D (406 H x 1200 W x 711 D mm)
- Weight: 125 lbs. (56kg)
- Power: 110V, 60Hz
- Part Number: FD-230
