Product Description

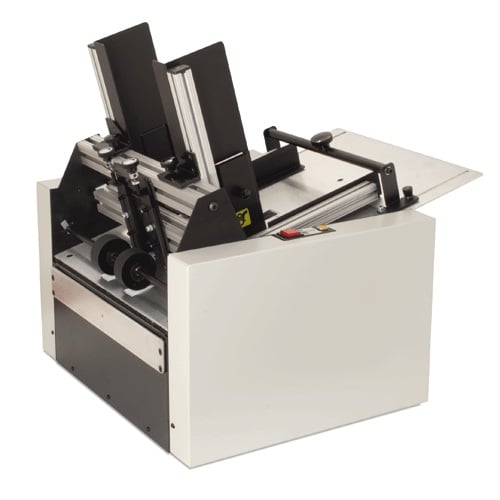

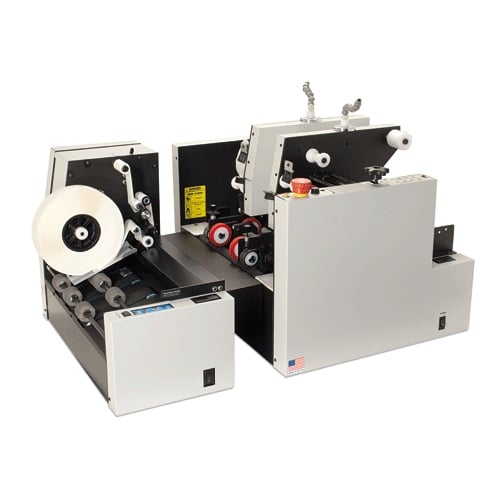

The Formax FD 290 Crash and Edge 90 Degree System is the ideal solution to meet all current and future USPS tabbing requirements. The FD 290 combines the FD 280 Double-Head Edge Tabber and FD 260 Single-Head Crash Tabber for one-pass tabbing of booklets and virtually all other tabbing jobs. The FD 290 applies edge and top tabs in a single pass, processing up to 15,000 pieces per hour. A variety of 1" and 1.5" tab stocks can be used, including clear, translucent and paper, with built-in waste take-up spools to reduce down time. It has the unique ability to easily change between 1" and 1.5" tabs, simply by flipping a switch. Tabs can be fed fan-folded or from rolls for higher volume. The FD 290 can also be used in-line with other tabletop labelers, feeders, and printers.
Product Details
- Applies edge and top tabs in a single pass
- Up to 15,000 pieces / hour
- Uses 1" & 1.5" tabs
- Waste take-up spools
- Can be used in-line with tabletop labelers, feeders & printers
Specifications
- Speed: Tabs up to 15,000 pieces per hour
- Tabs Applied: Up to 3 tabs per pass
- Document Sizes: 5" to 12" wide
- Document Thickness: Up to .25" thick, coated or uncoated
- Tab Varieties: 1" or 1.5" tabs, clear, translucent or paper, circles or rectangles, on rolls with or without tractor holes

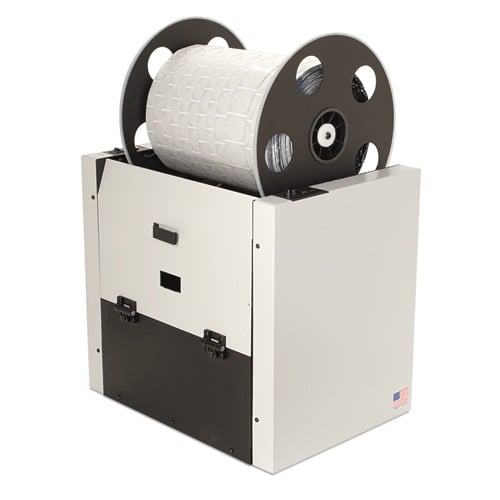

- Tab Type/Capacity: FD 280 - Fan folded or high volume rolls; FD 260 - Roll up to 5,000 1" tabs, roll up to 5,000 1.5" tabs
- Tab Spool: Maximum roll diameter: 8.25"
- Core diameter: 3"
- Dimensions: 34" L x 19" H x 23" W
- Weight: 107 lbs
- Power: 115V, 2A, 60Hz or 230V, 1A, 50Hz
- Options: FD 280-10 Heavy Duty Feeder, FD 280-20 High Volume Tab Delivery Module, FD 260-20 Conveyor, FD 260-30 Catch Tray
- Features: Built-in waste take-up spools:
- Part Number: FD-290
