Product Description

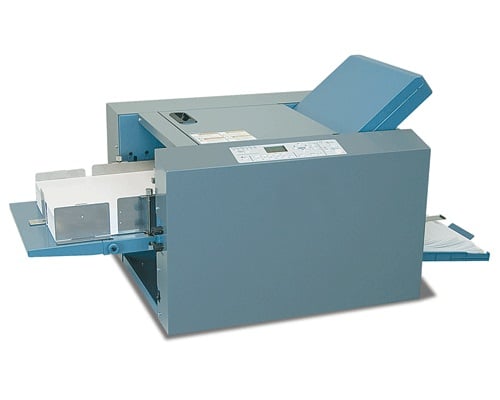

The FD 3200 Air-Suction Document Folder offers high performance folding in a compact tabletop unit, ideal for digitally printed documents on heavy and coated stock. The air-suction feed technology reduces static electricity and minimizes feed marks common in traditional friction feed systems. The FD 3200 utilizes internal fans to produce air and suction for quiet operation in a smaller footprint.
Product Details
- Air-Suction Feed System: Designed to easily handle static buildup in digital prints and minimize feed marks

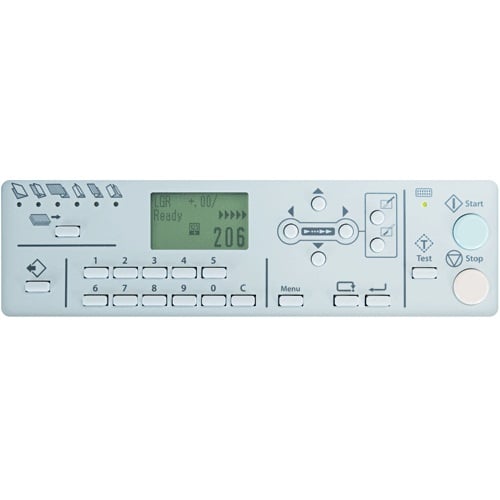

- Control Panel with LCD Display: User friendly, includes energy-saving mode
- Automatic Paper Size Detection: Recognizes the most popular paper sizes including letter, legal, ledger, half letter and half legal
- Adjustable Air Flow: Allows for feeding consistency on varying paper weights / sizes
- Optical Double Feed Detection: Ensures document integrity

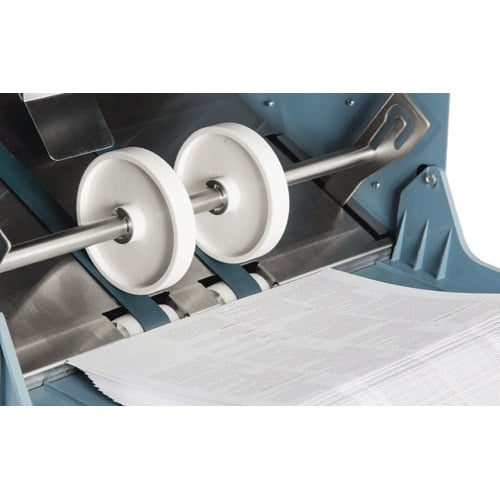

- Outfeed Stacking Belt & Rollers: Automatically adjust to paper size for optimal stacking
- Batch Counting: Programmable to process pre-set number of sheets into sets with a delay between sets
- Idling Function: Standby mode used to pause for double or misfeed. All other functions are still operational, minus the output drive
- Pre-Programmed with 6 Standard Folds: C, Z, Half, Fold Out, Gate and Double Parallel
- Custom Folds: Up to 20 custom folds can be programmed and stored into memory
- Cross-Folding: A guide is included for two-pass operation
- Noise Reduction: Fold plates are enclosed and insulated to reduce operating noise
- Built-in DC Fans: Provide quieter operation than external pumps
- Seven-Point Fold Stops: Fold plates utilize seven point fold stops for crisp, accurate folds of large paper sizes at high speeds
- Four-Digit Counter: Includes addition, batch and interval counting
- Adjustable Stack Height Lever: Five positions can be easily chosen to increase or decrease paper stack height to better feed thick and thin paper stocks
- Four Fold Rollers: Produce crisp, precise folds
- Fault Detection Features: Paper Out, Misfeed, Double Feed, Paper Jam, Top Cover Open, Paper Size Error
- Easy Access to Paper Path: Easily clear paper jams
Specifications
- Speed: Up to 15,600 sheets/hour
- Hopper Capacity: Up to 625 sheets
- Pre-Set Folds: C, Z, Half, Fold Out, Gate, and Double Parallel
- Custom Folds: Stores up to 20 custom folds into memory
- Paper Size: 7.17" - 18" L x 4.73" - 12.24" W
- Paper Weight: Up to 230gsm
- Dimensions: 23" W x 47" L x 21.3" H
- Power: 100 - 240VAC, 50/60 Hz
- Option: Side Air Kit for large paper sizes
- Warranty:
- 90 day limited warranty on parts.
- Excluding wearables and labor.
- Part Number: FD 3200
