Product Description

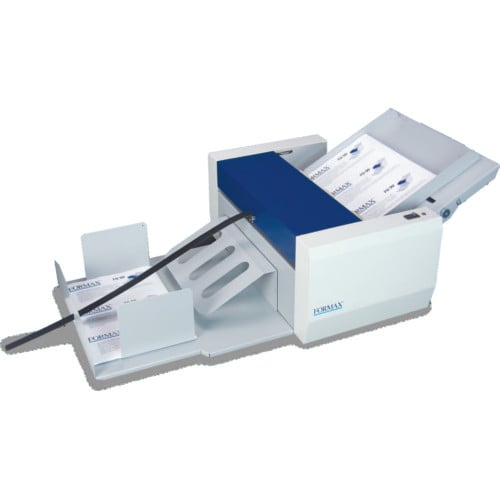

The Formax FD 90 Rotary Perforating and Creasing Machine is specially designed for finishing printed sheets, up to 13.8" x 19". Its three-tire friction feeding system reliably feeds up to 6,800 sheets per hour, and can create up to 5 parallel perforations and/or creases in a single pass. Perforating allows for easy separation of multiple printouts, tear-offs, postcards or tickets on a single sheet, while creasing allows for easy folding and reduces unsightly cracking in digital printouts. Operation is easy: simply load printed sheets on the extendable infeed table, adjust the side guides and press the power button. Sheets are fed and perforated and/or creased automatically then stacked neatly on the telescoping outfeed table. The FD 90 can easily accommodate paper weights from 55 - 180gsm. Standard set-up includes two perforating wheels, one creasing wheel and paper guides. Options include additional perforating sets, microperforating sets (17 tpi), creasing sets and guide strips to accommodate 55 - 60gsm paper. The Formax FD 90 Rotary Perforating and Creasing Machine is ideal for small print shops, on-demand and in-plant finishing applications including postcards, invitations, tear-offs, brochures, billing statements and more.
Product Details
- Simple set-up & operation, with automatic feeding.
- Up to 5 parallel perforations and/or creases in a single pass.
- Standard set-up includes two perforating wheels, one creasing wheel, 2 guide strips.
- Interchangeable perforating/creasing wheels.
- Processes up to 6,800 sheets per hour.
- Reliable three-tire friction feeding.
- Telescoping infeed and outfeed tables to accommodate paper up to 13.8" x 19".
- Adjustable side guides and fine-tuning knobs for precise positioning.
- Processes paper weights from 55 - 180gsm.
- Applications: Digital printing, Postcards, Tear-offs for tickets, prize drawings, Check stock, Tri-fold brochures and Billing statements with tear-off remit-to forms.
Specifications
- Speed: Up to 6,800 per hour
- Paper Size: Minimum: 5" W x 2.5" L (150mm x 64mm)
- Maximum: Up to 13.8" W x 19" L (350 x 483mm)
- Recommended Paper Weight: 55 - 180gsm (Note: 55-60gsm paper can be processed with optional guide strips)
- Parallel Perforations Per Sheet: Up to 5 in a single pass
- Perforating Wheel Capacity: Up to 5 (includes 2 perforating wheels and 1 creasing wheel)
- Feed Table Capacity (Max. Stack Height): 1.18" (30mm)
- Dimensions:
Closed: 19.5" L x 14" W x 15" H (495 x 356 x 381mm)
Fully extended: 43" L x 14" W x 15" H (1092 x 356 x 381mm) - Weight: 41 lbs. (18.5kg)
- Power: 110V, 60Hz (30W)
- Warranty: 90 day limited warranty on parts, excluding wearables and labor
- Part Number:FD90
