Product Description

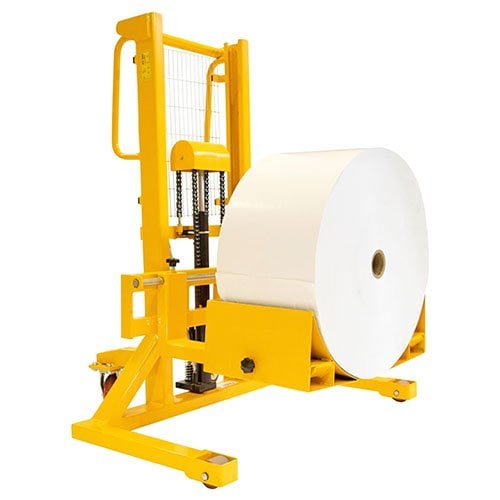

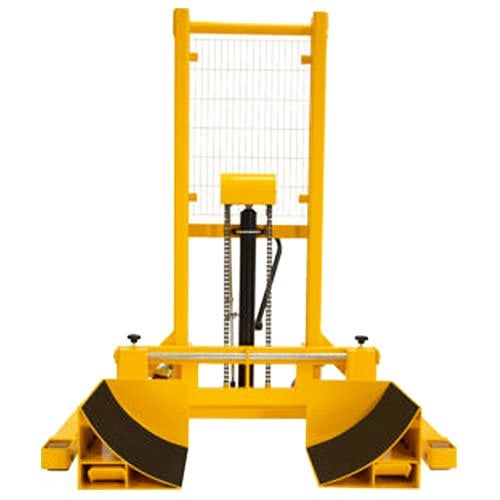

Introducing the Foster On-A-Roll Lifter Scoop – the epitome of efficiency in roll handling. With its innovative design, a single operator can effortlessly scoop rolls off the floor or pallet without the need for manual handling. The Hydraulic Foot Pump allows for seamless height adjustment, ensuring smooth loading and unloading experiences. Accommodating rolls with diameters ranging from 10cm to 115cm, the lifter features adjustable width forks, coupled with a removable laser cone for precise alignment with press chucks. The circular roll holders, coated with rubberized epoxy, prevent scratching and damage to valuable media, while the back stop ensures rolls stay securely in place. Handling rolls up to 23.6” wide and supporting a weight capacity of 1,000 lbs. (455 kg), this lifter is a powerhouse of capability. The rugged construction guarantees a long lifter life, and with single-person operation, it not only saves labor and time but also enhances workplace safety. Backed by a 2-year warranty on hydraulics and media tray, and a 5-year warranty on cross bars, the Foster On-A-Roll Lifter Scoop is the ultimate solution for efficient and reliable roll handling.
Product Details
- A single operator can scoop rolls off the floor or pallet without handling them.
- Hydraulic Foot Pump lets you adjust the height for smooth loading and unloading.
- Adjustable width forks accommodate rolls of diameters from 10cm to 115cm.
- Removable laser cone inserted into the roll core makes it simple and easy to line it up with press chuck.

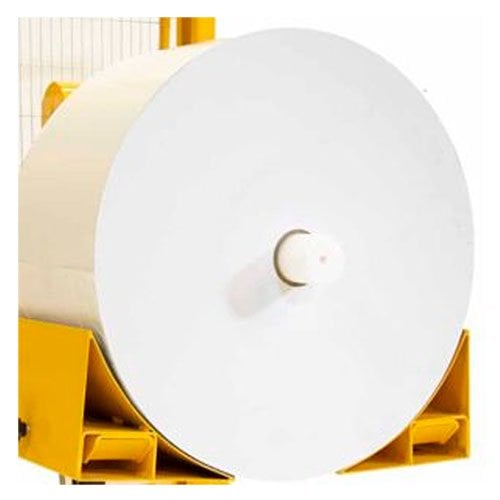

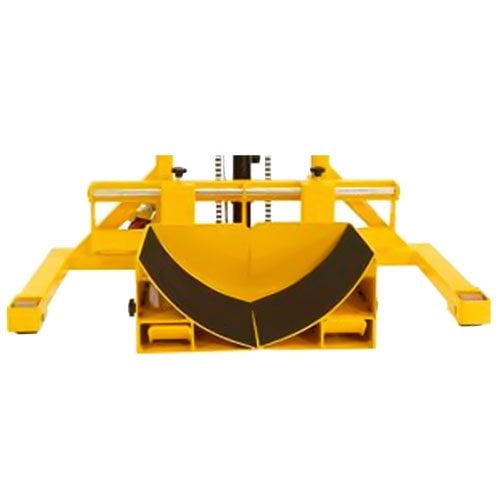

- Circular roll holders are coated with rubberized epoxy to prevent scratching and damage to valuable media.
- Back stop on circular roll holders prevents rolls from falling off the rear.
- Handles rolls up to 23.6” wide.
- Fixed front casters provide lower clearance in the front forks.
- Pair of heavy-duty rear swivel casters with easy step-on locking brake.
- Lift rolls as heavy as 1,000 lbs. (455 kg).
- Rugged constructions ensures long lifter life.
- Single-person operation saves labor and time.
- 2-year warranty on hydraulics and media tray. 5-year warranty on cross bars.
Specifications
- Roll Weight Capacity: 1,000 lbs (455kg)
- Lift Height: 36" H (91.5cm)
- Max. Roll Width: 14” (35.6 cm) with adjustable forks up to 23.6” (60 cm)
- Circular Roll Holders: 16" (40.6 cm )
- Max. Roll Diameter: 45.25" (115cm)
- Overall Media Lifter Dimensions (W x D x H): 48.4"W x 45"D x 57.8"H (123 x 114 x 147 cm)
- Media Lifter Weight: 353 lbs (160kg)
- Bottom Fork Clearance: 11.8” (30cm)
- Front Wheel Caster: 3.15" (8cm)
- Rear Swivel Caster: 6" (15cm)
