Product Description

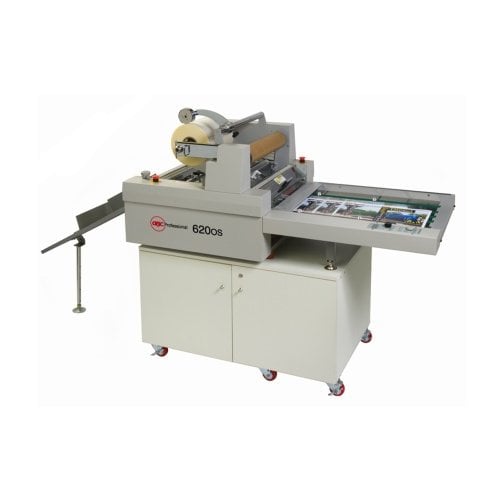

State-of-the-art GBC 620os is the industry's 3-in-1 "best-in-class" system. It will enhance graphics beautifully and with minimum effort on your end. This semi-automatic feeding system is a three in one system made up of semi-automatic feeder, one-sided laminator and a sheet separator with a stacker tray. Features an easy film loading system with the stationary unwind shaft. Once it is setup, the operator simply feed the print and the 620os will do the rest. LCD display with digital controls provides an easy to use and simple setup operation system. Increase the productivity with the print tray extension, big enough space for additional work space. The feeder is designed with belt and gating system providing a more accurate result. 620os features two centering scales to ensure a proper alignment for each different size of documents. The third scale on the side allows for the length measurements. With all that information inputted into the system, the machine is ready to start. Proper sheet separation is guaranteed by the synchronized feed gate, and also maximizes the film coverage. The quartz infrared heater dispense equal amount of heat through the heat roller to ensure consistent lamination. Once the document is laminated, it passes under a forced air cooling tube and adjusted de-curling bard. It will remove any curl from the heated print and cools it quickly to provide a flat surface. A perf wheel is incorporated to perforate the film for a much easier separation process. The sheet separator is followed by a movable stacker. With a magnetic guide, the stack can be adjusting to any level to better hold the laminated documents. 620os can laminate up to 45ft per minute, making it the perfect machine for a large demand of volume. For safe operation, GBC strategically placed multiple emergency stops and interlocks. The GBC 620os UL listed in the US and Canada, meeting the applicable safety standard. GBC, the trusted brand, where we won't let you down!
Product Details
- Semi-automatic feed table and dual gates automatically set the overlap
- Automatic separator
- Speeds up to 45' per minute
- Pneumatically controlled pressure ensures superior adhesion
- Teflon coated heat roller for even heat distribution
- Decurling bar for flat output
Specifications
- Speed: 45 fpm
- Power Requirements : Laminator 220 V, 12.4 A Compressor 220 V, 1.2 A
- Warranty: 90 days labor & 1 year parts
- Safety Certification: c/UL Listed
- Cold Lamination: No
- Film Type: Digital Lay-Flat, Polypropylene, Polyester
- Film Thickness: Up to 1.7 mil
- Film Shafts: 1 unwind, 1 scrap rewind
- Maximum Sheet Size: 21" x 30"
- Minimum Sheet Size: 4" x 10"
- Maximum Roll Size : Up to 3,000' of 1.7 mil
