Product Description

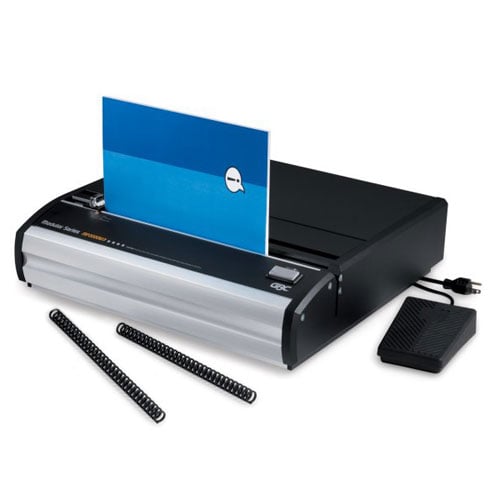

Experience reliable electric punching for Plastic Comb Binding with GBC Modular Punch MP2000PB. Designed with user-friendly features and a stackable platform, the MP2000PB is versatile enough for any office environment. The GBC MP2000PB Modular Fixed Die Comb Binding Punch is ideal for users who are looking for an electric comb binding machine. The MP2000PB, when used in conjunction with a modular comb opener, can more than double your productivity by allowing one person to punch while another binds the documents. The MP2000PB is designed to allow you to stack your comb opener conveniently on the top and uses vertical punching to allow you to easily square up your pages when punching.
Product Details
- Punches the GBC 19-Hole pattern for Plastic Comb binding.
- The ergonomic vertical punch throat speeds up productivity and prevents mispunches.
- Choose your preferred punching method from a palm switch or hands-free foot pedal.
- Auto-reverse prevents downtime due to punching too much paper.
- Adjustable edge guide allows for easy alignment of paper and covers.
- Flat top surface for stacking GBC bind stations for space savings. Bind station may be separated from the punch for increased productivity - one operator punching and one operator binding.
- GBC Part Number 7706100 , G7706100
- Manufacturer's Warranty: 90 Day Manufacturer's Warranty
Specifications
- Productivity: 2 second punch cycle
- Bind Capacity: N/A
- Punch Capacity: Punches up to 20 sheets per lift (based on 20 lb. bond); Rectangular holes; 19 holes for 11" punching edge
- Min Doc Size: Punches books as small as 4"
- Max Doc Size: Punches books as large as 11.7"(A4) in one pass. Longer documents may be punched in two passes
- Dimensions: 19.8"x7.4"x20.5" LxWxD
- Machine Weight: 38 lbs. (17.3 kgs.)
- Packaged Weight: 50.38 lbs.
- Ratings: 115 Volt / 50-60Hz
- Safety Agency Approval: Designed to meet UL and CSA safety standards
Helpful TIps
Operating the GBC MP2000PB Plastic Comb Binding Modular Punch
The GBC MP2000PB binding machine (formerly the Ibico 620FD binding machine) is the best fixed die electric modular punches on the market. The MP2000 series of modular punches are built with the same care and quality as all of the other GBC binding equipment. Its compact design and nicely finished exterior makes it perfect for almost any office. Here are some simple directions for using the MP2000.
Prior to punching your document, determine the number of holes required for the document (depends on the side of the document that is to be bound – 11” edge requires 19 holes – 8 ½” edge requires 15 holes).
- Deselect the Die Pins you do not want to punch by lifting the Selector Pin Lid and pulling the pins up.
- Set the Depth-of-Punch Lever (on the left side of the punch) to either under or over 9/16”. This refers to the diameter of the comb element being used. Plastic binding is the only bind style that uses this measure and its main purpose is to adjust the margin from the edge of the paper to the holes being punched so the element is properly filled. If the margin is punched too deep into the paper for a small element (i.e. ¼”), the pages will not open or turn easily because there is not enough room inside the element. Conversely, if the margin is punched too shallow for a large document (i.e. ½”), the pages could tear out if the document was roughly handled or dropped.
- Using a test lift of paper (or covers if using oversize covers), insert the sheets into the punch throat, moving them until they are flush against the edge guide and all the way into the bottom of the punch throat. Hold the sheets in place with one hand.
- To punch, press the punch button or foot pedal.
- Now, take one sheet of the punched material and fold it in half to check for hole alignment. If it is squared you’re ready to continue punching the document.
- When the punching is complete, remember to lift the front lid up, remove the chip tray and trash the debris.
Note: As mentioned earlier, comb binding frequently uses oversize covers. This simply means the covers are manufactured 11-1/4” X 8-3/4” (instead of 11” x 8-1/2”), leaving an 1/8th inch margin at the top and bottom of the document and a ¼” excess margin on the unbound 11” side of the document. This is to prevent dog-earing of the material contained within the covers of the document. It also makes the document look neater as the pages do not stick out when the element moves in the punched holes. This does not happen with our other bind styles, the holes are smaller and there is less movement of the binding element.
What this means to you, is that the edge guide must be reset to “center” the holes of the oversize cover. Follow the same steps for setting the edge guide and checking the setting that you just completed. If you were punching a number of documents using oversize covers, you would set the edge guide for the paper, punching all the paper – then set the edge guide for the covers and punch all the covers.
Both wire binding and coil binding are set up using steps 1 through 5 – since the covers are flush cut with the paper (no oversize), there is no need to reset the edge guide.
