Product Description

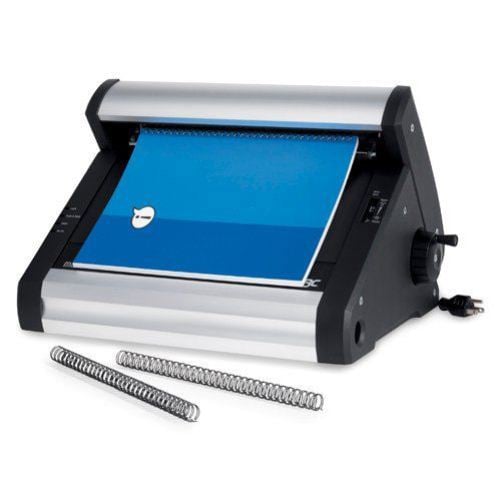

The GBC TL2900 Electric Twin Loop Wire Closer (formerly the Ibico 340WB Wire Closer) makes producing Twin Loop wire documents easier than ever. The dual load-and-crimp station eliminates the extra step of moving documents for loading. Just hang the spine, load the paper and close with the touch of a button. LEDs guide production by showing status at a glance. This finisher binds documents up to 12" long and its innovative design increases productivity and simplifies the binding process for users who don't do a great deal of wire binding. If you already own the TL2900 and are looking for a Replacement TL2900 Hook Kit we carry those too.
Product Details
- Electric binding increases productivity with a quality crimp in 1 second.
- Wire hooks provide a single-position load and crimp station for both 3:1 and 2:1 Twin Loop wire, eliminating movement of the document to a separate closing station.
- Single adjustment knob provides one-step size adjustment and precision binding.
- Dual activation buttons are designed to prevent misuse.
- Four LED's guide the user easily through the binding process.
- The TL2900 can be stacked on any GBC/IBICO Modular punch, saving space or can be separated for two-person workflow.
- GBC Part Number 7301200 , G7301200
- Manufacturer's Warranty: 90 Day Manufacturer's Warranty
Specifications
- Productivity: Up to 200 books per hour
- Bind Capacity: Up to 1 1/4" or 250 sheets (based on 20 lb. bond)
- Min Doc Size: Binds books as small as 2" Wide
- Max Doc Size: Binds books as large as 12" Wide
- Dimensions: 18"x7"x13" LxWxD
- Machine Weight: 43 lbs. (19.5 kgs.)
- Packaged Weight: 52.6 lbs.
- Ratings: 115 Volt/60 Hz/3.5 Amps
- Safety Agency Approval: Designed to meet UL and CSA safety standards
Helpful Tips
Tips For Finishing Documents Using the GBC TL2900
If you have a GBC TL2900 wire closer (formerly the Ibico 340WB) you might be wondering how you can best use it to close the wire on your documents. Fortunately, using the TL2900 is actually quite easy. Here are some simple steps for binding documents with the this wire closer…
1. Select the appropriate size wire binding element for your document by either using the chart below, or using the Wire Size Guage Label on the TL2900 as a reference
2. Adjust the knob so that the desired size shows approximately in the center of the window. TIP: This is a starting point reference. It is best to make a test bind and adust the knob for your personal preference. To make the crimp tighter, turn the knob so that the number of moves toward you in the clear window. Slight adjustments may be necessary to achieve the perfect crimp. It is acceptable for the wire size to appear anywhere within the window.
3. Load the wire element onto the support hooks. TIP: Hold the wire loosely across the trips of your fingers, with the wide hooks facing downward. Orient with the left edge just touching the Edge Guide. Allow the wire to naturally find itself on the hooks with a dropping motion as you guide the wire up and over. Once you get the feel for this motion, you will be able to easily hang the wire onto the books.
4. Thread the document contents onto the hooks, oriented so that the first faces up. Then thread the front cover face up onto the wire document. Finally thread the back cover, inside up, onto the wire element. (As an alternative you may prefer to stack the entire document as per 5, 6, 7 above, and lay the whole document on the wire hooks at one time to show ease of operation – try working with the system both ways until you are comfortable with it.
5. Bring the clamp forward over the hooks.
6. Press and HOLD the two activation buttons on either side of the closer, until the LED’s indicate, “DONE”.
7. Push the clamp back.
8. Remove the bound document from the hooks by gently pulling upward on the document until the wire is out of the hooks. Do not pull forward on the book, as you may risk breaking the hook.
9. Flip the back cover around so that the wire seam is hidden between the last page and the back cover of the document.
