GBC Ultima 35 EzLoad Roll Laminator Starter Kit With 2 Rolls Of Film And Optional Work Station - Clearance Sale

We're here for you!

Please call
1-800-944-4573
for help finding a comparable solution

Need Shopping Advice?
Call - (800)944-4573

Item#

12" thermal roll laminator
Compatible with film up to 5mil thick
Fixed heat at ≈ 220°/230° F
36" per minute fixed speed

Product Description

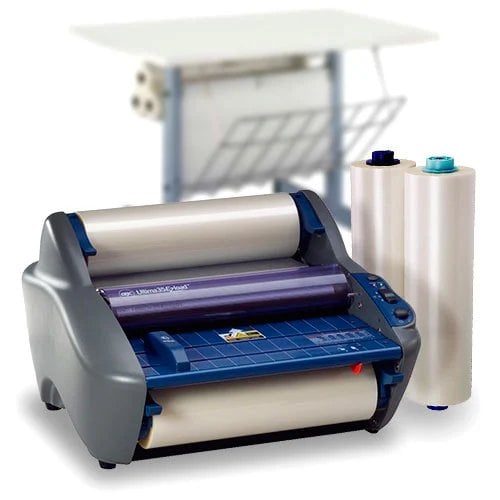

Get everything you need for high-quality laminating with this GBC Ultima 35-K EZ Load Roll Laminator Starter Kit. This kit is ideal for schools, offices, and business centers, offering a maximum laminating width of 12". The Ultima 35 works with GBC Nap Lam II EZLoad films and supports 1.7, 3, and 5 mil film options. Kit Includes: GBC HeatSeal Ultima 35 EzLoad Laminator 1 box of EZload film of your choice Optional laminating workstation

Product Details

Desktop Size. 12" wide format laminates letter-sized documents and more
Versatile. 1.7 mil to 5 mil NAP II Ez-Load roll film
Reduce Downtime. EzLoad technology provides fast film loading and prevents loading the film upside down
Improve Productivity. Laminates at a fixed speed of 36" per minute
No Waiting. Warm-up time of less than one minute
Extended Machine Life. Auto shutoff after one hour of non use
Integrated Trimmer. No more searching for scissors with built-in trimmer
Motor Reverse-Function. Reversible motor assists in removal of film wraps.
GBC Quality and Service. Limited 1 Year Manufacturer Warranty and available Equipment Maintenance Agreement (EMA)
Primary UPC. 033816054516

Specifications

GBC HeatSeal Ultima 35 EzLoad 12" Roll Laminator Details:

Photo Quality: Yes
Warm Up Time (3mil): One Minute
Temperature Control: Variable
Cold Lamination: No
Speed Control: Fixed
Heating: Ceramic Heated Shoe
Max Document Width: Letter
Film Thickness: 1.7 to 5mil
Ready Indicator: Yes
Rollers: Four Motor Driven
Cooling Fans: Yes
Reverse Function: Yes
Auto Shut off: Yes (1 Hour)
Time to Laminate Letter Size Document: 18 Seconds
Built In Trimmer: Yes
Paper Guide: Yes
Warranty: 1 Year Manufacturer Warranty
Compatible Supplies:
GBC Ultima 35 EZload Laminating Film - 5mil 12" x 100'
GBC Ultima 35 EZload Laminating Film - 1.7mil 12" x 300'
GBC 5mil 11.5" x 100' NAP II Sprint EZload Roll Film
Dimensions (WxLxH): 16.9 x 18.1 x 9.1
Certification: UL, cUL
Weight: 39.6lbs
Voltage: 120V - 60hz

GBC 1.7mil NAP-LAM II 12" x 300' EZLoad Laminating Film - 2 Rolls Details:

Film Type: GBC NapLam II EzLoad
Thickness:1.7mil
Roll Width: 12"
Roll Length: 300'
Film Finish: Clear
Core Size: n/a
2 rolls of film per box
GBC Part Number: 3125365EZ , G3125365EZ
Primary UPC: 033816056398

GBC 3mil NAP-LAM II 12" x 200' EZLoad Laminating Film Details:

Film Type: GBC NapLam II EzLoad
Thickness:3mil
Roll Width: 12"
Roll Length: 200'
Film Finish: Clear
Core Size: 1"
GBC Part Number: 3125913EZ , G3125913EZ
Primary UPC: 033816056411

GBC 3mil NAP-LAM II 12" x 200' EZLoad Laminating Film Details:

Film Type: GBC NapLam II EzLoad
Thickness:3mil
Roll Width: 12"
Roll Length: 200'
Film Finish: Clear
Core Size: 1"
GBC Part Number: 3125913EZ , G3125913EZ
Primary UPC: 033816056411

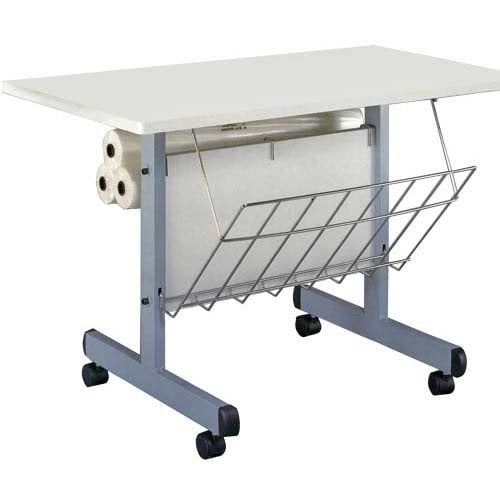

Laminating Workstation Details:

Heavy duty work table
Metal racks to hold your laminating roll film (up to 27" film)
Holds up to 27" wide laminators
Also holds your finished laminated item
Heavy duty wheel casters with locking switch
4 bumper plastic guards
Dimension: 107cm x 66 cm x 75 cm (42 inch x 26 inch x 29-1/2 inch)
Weight: 59.3 Lbs (26.9 Kgs)
Warranty: 1 Year Manufacturer Warranty

Resources

GBC Ultima 35 EZLoad Users Manual.pdf (1.48 MB) Download

Staff Review

GBC Ultima 35 EZload Product Review

The GBC Ultima 35 was introduced to the laminating machine market as an answer to a couple of needs. First, it was designed to be a low-cost roll laminator that just about any business, church or school could afford. Second, they wanted to address the ongoing problem of users feeding roll laminators incorrectly and damaging their machines. Here we take a look at the Ultima 35 and list what we consider to be its strengths and weaknesses.

Strengths:

One of the first things we noticed (and liked) about the Ultima 35 is the extremely fast warm-up time of one to two minutes. This compares extremely favorably to almost any other machine on the market, and should be a big boost to productivity.
The big shining feature of the Ultima 35 is that it finally addresses the problem of inexperienced or distracted users loading the laminating film backwards on roll laminators. In other words, users who, quite by accident, load their laminators with the adhesive side facing toward the rollers. We don't know of you have ever done this on a roll laminator, but rest assured all it does is create a huge mess, and usually a service call is required at that point. The Ultima 35 has solved this problem by use of a specialized type of laminating film that has a different sized core on each side of the film. This makes it absolutely impossible to load the film the wrong way.
The Ultima 35 is pretty versatile, accepting roll film from 1.7 to 10mil thick. This means that you will be able to laminate just about any sort of document in all of the available rigidities. In theory, that is. For the first year that this machine was on the market 10mil film was not available. However, GBC recently released both 7mil and 10mil film for use with the Ultima35. Also, in 2008, GBC made available some matte films for the Ultima 35 in addition to their standard gloss films.
Some of the other things that we really liked about the Ultima 35 were that you can adjust the speed at which it laminates, which is great for laminating different paper styles and materials. Also, this machine has both forward and reverse functions helping with any wraps or jams that may occur. And finally, we really appreciated the inclusion of a handy built in trimmer to help with the finishing process.

Weaknesses:

We suppose one could consider it weakness that all of the supplies intended to be used with the Ultima 35 (such as laminating rolls) are proprietary. This means is that the user will be required to buy and use the rolls that are specifically designed by GBC to work with this machine. Unfortunately, these supplies are a little bit more expensive than other similar supplies that are available. However, this machine is so much lower in price (not to mention feature-rich) than most other similarly equipped laminators on the market, it may be well worth it in the end.
Though, as we mentioned above, you can't load the Ultima 35 the wrong way, loading it the right way is not the easiest thing in the world, and may take you a time or two to master. Once you've got the hang of it, however you should be breezing along.
