Product Description

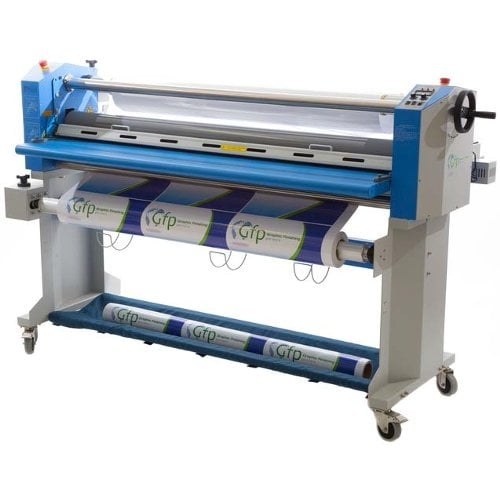

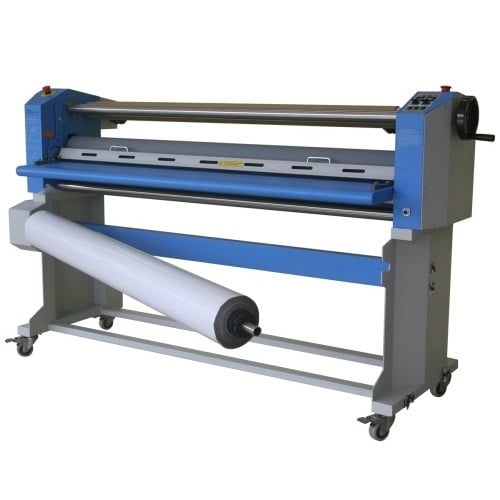

Previously known as the GFP 563TH-3, the GFP 563TH-4R has the same features but with the added Rewind Motor & Rewind Tube. This 63" wide format top heat roll laminator is an economocal and powerful solution for your laminating, mounting and board pre-coating project. It is ideal for pressure-sensitive applications. This laminator has a 50% faster throughput, equipped with Front/Rear Swing-Out Shafts for faster roll changes, 3" Aluminum Quick-Grip shifts for easy loading, motorized rear rewind for roll-to-roll applications, and has a metal alloy heaters that contribute to its rugged design. This roll laminator can laminate materials up to 63" wide at a speed of up to 20 feet per minute. Increase your business productivity and profit with GFP 563TH-4R 63" Top Heat Wide Format Roll Laminator.
Product Details
- Maximum Productivity: 50% faster throughput
- Fast Roll Film Changes: Front/Rear Swing-out Quick-Grip Supply Shafts
- Easy Loading: 3" Aluminum Quick-Grip shifts
- Drop-in Quick-Grip rewind shafts.
- Photoelectric eye for safety.

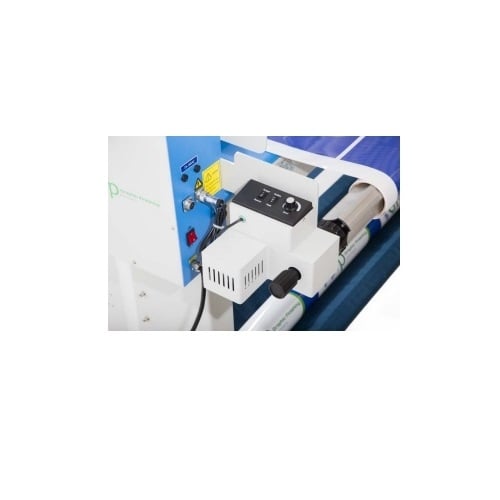

- Motorized rear rewind for roll-to-roll applications
- Swing-up feed table & 38" output height.
- Metal Alloy heater reduces breakage.
- 4.5" diameter rollers.
- Roller gap measurement scale.
- Feed tray safety lock.
- Includes laminator stand
- Applications: Signs, Banners, POP Displays, Trade show displays, Graphic mounting, Photo mounting, Dry-erase boards, Floor graphics, Window graphics, and Vehicle graphics
Specifications
- Laminating Width: 63"
- Roller Diameter: 4.5"
- Roller Gap: 1"
- Rear rewind: Yes
- Maximum temperature: 122°F
- Laminating speed: 0-20 ft/min
- Pressure adjustment: Hand Wheel
- Heat method: Metal Alloy heater
- Max. roll diameter: 8" OD (top); 16" OD (bottom)
- Supply Shafts: 2 Swing-out
- Tension Adjustment: Single knob
- Power Supply: 110v 12A
- Power Consumption: 1320W
- Foot Pedal: Included
- Stand with casters: Included
- Net Weight w/ stand: 502lbs.
- Dimensions: 82" x 28.5" x 50"
- Machine Shipping: 755bs.; 89.4" x 33.1" x 29.2"
- Stand Shipping: 143 lbs.; 75" x 33" x 5.8"
- Warranty: One Year Parts & Labor
