Product Description

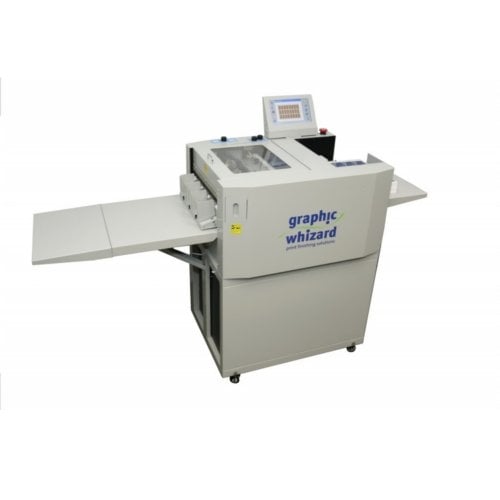

The Graphic Whizard PT-331SCC Air can slit, cut, crease or perf up to 350gsm paper in a single pass. It can accommodate up to 13" x 26" paper size ,and can do 32 cuts and creases at a time. It is equipped with a 2" vacuum pile feeder. The PT-331SCC Air is also featured with interchangeable crease/perf dies, full or partial cross perf, preset programs and job memory for quick job changeover, manual cut/crease input for customized jobs, and easy change slitting formats without removing tools.
Product Details
- Slit, cut, crease or perf in a single pass.
- 150-350 gsm (100 lb text - 16 pt).
- Interchangeable crease or perf dies.
- Full or partial cross perf.
- Up to 32 crease/perfs in one pass.
- Register mark cut compensation.
- Preset programs and job memory for quick job changeover.
- Manual cut/crease input option for custom jobs.
- Easily change slitting formats without removing tools.
Specifications
- Electrical: 110V, 50/60Hz, 15A
- Paper Weight: 150-350 gsm
- Stock Input Size: Min- 8.2" x 8.2" / Max- 13" x 26"
- Finished Output Size: Min- 2" x 1.8" / Max- 13" x 26"
- Crease/Perforate: 0-32 per pass
- Minimum Gap between Crease: 0.1 mm
- Display and Operation: 6" colour touchscreen
- Feed: 2" Vacuum pile feeder
- Image Shift Compensation: Cut compensation (Y axis)
- Gutter Slit: 9.5mm/0.375" 3/8"
- Gutter Cut: 0mm or 3mm - 15mm
- Manufacturer's Warranty: 3 Year Mechanical Parts and Electronics
