Product Description

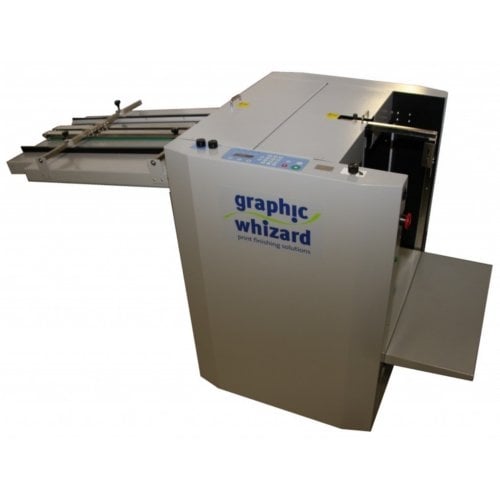

Increase productivity by automating the feeding process with Graphic Whizard PT-520PF Pile Feeder. This machine easily aligns with exact registration to feed a wide range of machines. The PT-520PF is a variable speed pile feeder that can process up to 500-10,000 sheets per hour, and featured with 19.6" pile height capacity. It can accommodate sheets with size ranging from 4.92" x 8.26" -to 20.5" x 29.5", and 128- 350gsm thick. Speed up your feeding process to increase productivity and profit with Graphic Whizard PT-520PF Pile Feeder.
Product Details
- Increase productivity by automating the feeding process.
- Easily aligns with precise registration to feed a wide range of machines.
- Variable speed, 500-10,000 sheets per hour.
- Manufacturer's Warranty: 3 Year Mechanical Parts and Electronics
- Options: Conveyor outfeed with register, conveyor outfeed with drive belts, output tray, ultrasonic doubles detection, long sheet extension.
Specifications
- Electical: 110-130V, 50/60Hz, 15A
- Max Infeed Size: 20.5" x 29.5"
- Min Infeed Size: 4.92" x 8.26"
- Paper Thickness: 128- 350gsm
- Speed: Variable speed, 500-10,000 sheets per hour
- Feed Gap Control: Adjustable, 0.1- 9 seconds (every 0.1seconds)
- Pile Height Capacity: 19.6"
- Feeding: Top suction belt feeder
- Counter: Up or down
- Side Guide: Automated positioning
- Options: Conveyor outfeed with register, conveyor outfeed with drive belts, output tray, ultrasonic doubles detection, long sheet extension
