Product Description

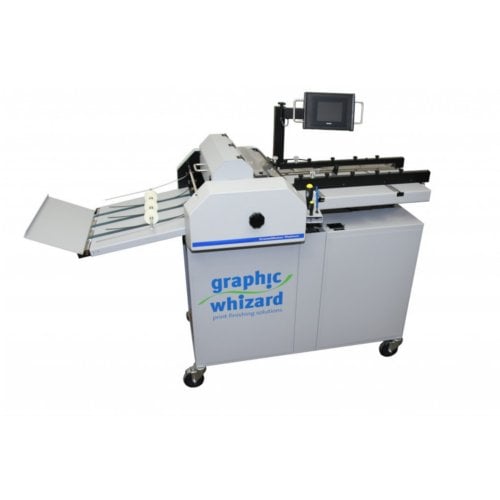

This Graphic Wizard CreaseMaster Platinum Pneumatic Creaser can crease up to 8000 sheets per hour and store up to 20 jobs into memory. This creaser has a digital touch screen controls that guarantees user friendliness and ease of use. Some of the numerous great features of CreaseMaster Platinum are the following: self centering air feed, batch counting, ability to shift crease position on the fly, programmable job memory using presets, and last job recall.
Product Details
- Impact creasing significantly reduces cracking of digitally-printed substrates during the finishing process.
- Inverted and regular impact creasing in the same pass!
- Up to 10 impact creases per sheet.
- Up to 20 jobs can be stored into memory.
- Easy-to-use programming. Set up in minutes!
- Rotary perforations (at the entrance of the machine for accuracy; no tail whip) are anvil style and produce a "burr-free" finish. Microperfs are also available.
- Optional strike perf attachment and Impact Perf available for "box" or "T" perfs.
Specifications
- Electrical: 115V/60Hz/20A or 230V/50Hz/20A
- Maximum Speed (impact creasing): 8000 8.5 x 11" sheets per hour
landscape 8.5" x 11", 1 impact crease, job performance will vary dependent upon job specifications - Maximum Speed (rotary perf/score): 8600 8.5 x 11" sheets per hour
landscape 8.5" x 11", continuous rotary score/perf, job performance will vary dependent upon job specifications - Maximum stock size: 18"W x 25.5"L (45.7cm x 57cm)
- Minimum stock size: 3.5"W x 5"L (8.9 cm x 12.7 cm)
- Stock weight: 12lb. - 18 point (45 - 385 gsm)
- Dimensions (L x W x H): Length: 60" (1.52m) x 27" (0.69m) x 46" (1.17m)
- Weight: 250 lbs. (114 kg)
- Perforation options: 2,4,6,8,12,16 teeth per inch (TPI), 42, 50 and 72 Microperf TPI
- Rotary score options: Wide (standard) or narrow
- Strike Perf attachment: Optional
- Impact Perf: Optional
- Creasing Die: Wide (standard) or narrow
- Slitting Blade: Optional
- Warranty: 5 Years Mechanical Parts and Electronics
