Product Description

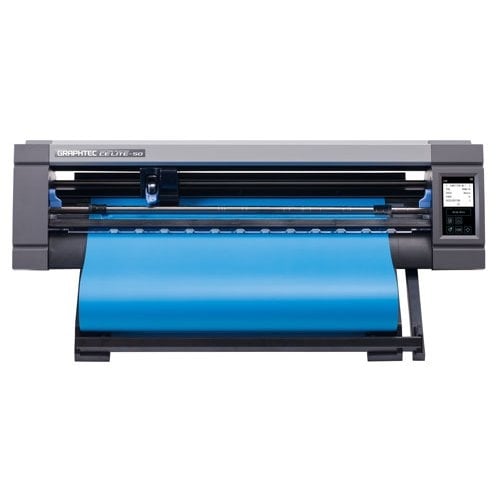

This Graphtec CE Lite-50 20" Desktop Roll-Feed Vinyl Cutter and Plotter offers high cutting quality, productivity, and cost-effectiveness that is ideal for small-to-medium production runs for heat transfer vinyl, decals, singage, automotive sign, and more! It has 19.7" per second cutting speed, 2.1 Newton cutting force, and 20" cutting width. This cutter plotter can create original goods easily with 4.3 inch touch panel and enhanced software. Build you business with Graphtec CE Lite-50 20" Desktop Roll-Feed Vinyl Cutter and Plotter.
Product Details
- 4.3" Touch Screen Operation. Easy-to-use operation with 4.3" touch panel.
- USB Offline Operation. Saved cut-data on USB memory, USB offline barcoding automatically loads file, sets tool conditions, and processes the job at the push of a button - without requiring a PC connection.
- Arms 7.0 Detects Registration Marks. ARMS 7.0 technology ensures efficient, high precision print and cut jobs. CE Lite-50 detects registration marks on the media to accurately align the position of the cutting line to the printed image on various materials including glitter and metallic.
- Support Roll Media up to 9 ft 10 in. Continuously cut roll media designs up to 9 Ft, 10 In (3 m)* long using the included roll media stocker. (Accuracy guarantee 1 m. depends on the cutting condition and media type).
- Mountable Roll Media up to 20" Width. Maximum mountable media width of 20 inches (508 mm) efficient and convenient for you production.
- Aligns the Position of the Contour Cut Line. CE LITE-50 finds the edge of the media and aligns the position of the contour cut line to the printed image without registration marks. (Must use a standard size) The maximum cutting area can be utilized regardless of color or shading of media because registration marks do not need to be printed.
Specifications
- Maximum cutting area (W x L): 19.6 x 118.11 in (498 mm x 3 m)
- Cutting area of guaranteed accuracy (W x L): 18.81 x 39.37 in (478 mm x 1 m)
- Mountable media width: Max. 18.81 in (508 mm) / Min. 8.26 in (210 mm) (A4 portrait orientation)
- Mountable roll media type:
- Diameter
- 2 inch paper tube: Maximum diameter 5.9 in (150 mm), Minimum diameter: 2.07 in (52.8 mm)
- 3 inch paper tube: Maximum diameter 5.9 in (150 mm), Minimum diameter: 3.07 in (78.2 mm)
- Weight Max. 5.5 lb (2.5 kg)
- Diameter
- Maximum cutting speed: 20 inches per second
- Maximum cutting force: 2.1 N (210 gf)
- Blade type: Supersteel
- Pen type: Fiber-tip or ballpoint pen available in market
- Media type: up to 4 mil (0.1 mm) thick self-adhesive film (vinyl / fluorescent / reflective) (high-intensity reflective film is excluded)
- Programmable resolution: GP-GL : 0.1 / 0.05 / 0.025 / 0.01 mm; HP-GL : 0.025mm
- Interface: USB2.0
- Storage device (external input): USB memory
- Power source: 100-240 V AC, adapter output 24 V DC (2A)
- Power consumption: 32 W
- Operating environment: 10 to 35 ºC, 35 to 75 % R.H. (non-condensing)
- Guaranteed accuracy environment: 16 to 32 ºC, 35 to 70 % R.H. (non-condensing)
- External dimensions (W x D x H): Approx. 30.86 x 8.94 x 6.45 in (784 x 227 x 164 mm) (without roll media stocker)
- Weight: Approx. 17.64 in (8.0 kg) (without roll media stocker)
- Compatible OS: Windows 10 / 8.1 / 8 / 7; Mac OS X 10.6 to 10.11 / macOS 10.12 (Sierra) to 10.13 (High Sierra) (Graphtec Studio: 10.6 - 10.13, Cutting Master 4: 10.7 - 10.13)
- Supported software / driver: Cutting Master 4, Graphtec Pro Studio, Graphtec Studio (for Mac), Windows driver
- Compatibility Standards:
- Safety UL/cUL, CE mark
- EMC VCCI Class A, FCC Class A, CE mark (EN55032, others)
- Warranty: 1 Year Standard
