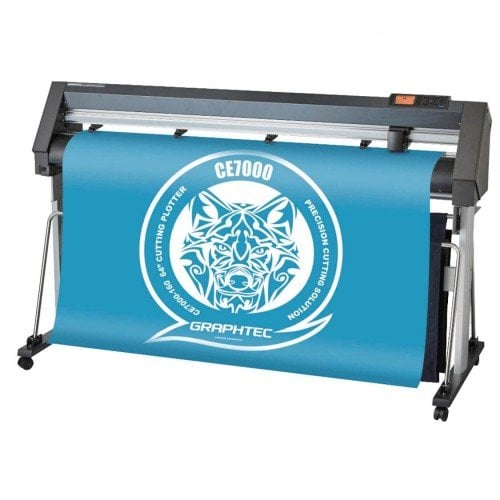

Name: Graphtec CE7000-130 Plus 50" Vinyl Cutter and Plotter with Stand
Brand: Graphtec
SKU: CE7000-130

Product Description

The NEW Graphtec CE7000 Series Vinyl Cutter and Plotter replaces the CE6000 Series. Some of the new CE7000 features include a barcode system, which retrieves files from the software, and a thumb drive support for offline cutting. Also, a new ARMS sensor to read registration marks faster. Finally, the CE7000 has perf-cut and ethernet. The Graphtec CE7000-130 Plus 50" Vinyl Cutter and Plotter with Stand is featured with 39 inches per second cutting speed and a 4.41 Newton cutting force to cut various media with high productivity. It is equipped with a 3.7inch LCD display and easy-to-use control panel that supports 10 languages. Other great features include ARMS8.0 that helps improve the productivity of print and cut, improved workflow with offline output using USB memory and data management function using Barcode, and useful standard or optional software that helps improve the efficiency of cutting operation. Maximize your productivity and profit with Graphtec CE7000-130 Plus 50" Vinyl Cutter and Plotter with Stand.

Product Details

ARMS (Advanced Registration Mark Sensing system) functions are improved to version 8.0.
"Data link function", Barcode reader / Continuous cutting will improve productivity of cutting operation.
New function "1 Point Alignment" reduces the cutting operation time.
Graphtec original software Cutting Master 4 has been updated to support Adobe Illustrator trim marks.
Carrier sheet table which will helps stable die-cutting with carrier sheet is available for CE700-40 and 60.
Been enabled to operate without PC by outputting cutting data with USB flash memory.
Easy operation with 3.7 inch graphic LCD control panel and direct key for data link function.

Specifications

ARMS (Advanced Registration Mark Sensing system) functions are improved to version 8.0.
"Data link function", Barcode reader / Continuous cutting will improve productivity of cutting operation.
New function "1 Point Alignment" reduces the cutting operation time.
Graphtec original software Cutting Master 4 has been updated to support Adobe Illustrator trim marks.
Carrier sheet table which will helps stable die-cutting with carrier sheet is available for CE700-40 and 60.
Been enabled to operate without PC by outputting cutting data with USB flash memory.
Easy operation with 3.7 inch graphic LCD control panel and direct key for data link function.

Configuration: Grit rolling type
Drive Method: Digital Servo Drive
Max Cutting Area (W x L) (*1): 50" × 164'
Cutting Area of Guaranteed Accuracy (*1) (When using optional basket): 50" x 79" (50" x 16.5')
Mountable Media Width:
- Min.: 2"
- Max.: 54"
Mountable Roll Media Mass: 38 lbs (17kg)
Number of Push Rollers: 4 rollers (Max. 5 (option))
Max. Cutting Speed: 39" per second at 45° direction
Acceleration: Max. 45.6' per second at 45° direction
Cutting Force: Max. 4.41N (450gf)
Minimum Character Size: Approx. 5 mm (0.016") alphanumeric (varies depending on character font and media)
Mechanical Resolution: 0.005 mm
Programmable Resolution: GP-GL: 0.1/0.05/0.025/0.01 mm HP-GLTM (*2): 0.025 mm
Repeatability (*1): Max. 0.1 mm in plot up to 2 m (Excluding media expansion and contraction)
Mountable Number of Tools: 1 tool
Blade Types: Supersteel
Pen Types: Oil-based ballpoint pen, Water-based fiber-tip pen
Media Types: Up to 25 mil (.63 mm) cutting Graphtec Rhinestone Stencil material GRS 1510 Marking film (PVC film / fluorescence / reflective), Polyester film (under certain conditions)
Interface: USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX
Buffer Memory: 2MB
Command Sets: GP-GL / HP-GL™ (Set by command or auto-detect) (*2)
Display: Graphic type LCD with back-light (240dots x 128dots), supports 10 languages
Power Source: 100V to 120V AC, 200V to 240V AC, 50/60 Hz
Power Consumption: Upt to 100W
Operating Environment: 10 to 35°C, 35 to 75% R.H. (non-condensing)
Guaranteed Accuracy Environment: 16 to 32°C, 35 to 70% R.H. (non-condensing)
External Dimensions (W x D x H)(With basket): Approx. 67" x 32" x 48" (67" x 45.2" x 48") (*3)
Weight (approx.) (With basket): 112.4 lbs (51 kg) 121 lbs (54.9 kg) (*3)
Compatible OS (*4):
- Windows 10/8.1/7
- Mac OS X 10.6 ~ 10.11 / macOS 10.12 ~ 10.15 (Graphtec Studio: 10.6 - 10.15, Cutting Master 4: 10.7 - 10.15)
Supported Software (*5): Graphtec Pro Studio(Windows)(*6), Graphtec Studio(Mac), Cutting Master 4(*6), Windows Driver
Safety: PSE, UL/cUL, CE mark
EMC: VCCI Class A, FCC Class A, CE mark

*1 Operated with Graphtec-specified cutting conditions and media. For long-length cutting, the basket is used.
*2 HP-GLTM is a registered trademark of Hewlett-Packard Company.
*3 When equipped with the stand.
*4 Graphtec does not support software/driver used with operating systems that have become obsolete and are no longer supported by the OS developer.
*5 The software is available for download from Graphtec's website.
*6 It requires an Internet connection in order for activation or registration when starting the software for the first time.

Compare to Similar Graphtec Vinyl Cutters and Plotters

Model Name	FC9000-75	FC9000-100	CE7000-130	FC9000-140	FC9000-160
Model
Max. Cutting Speed	58.5 inches per second (45 degree direction) 41.3 (axis direction)	58.5 inches per second (45 degree direction) 41.3 (axis direction)	39 inches per second (45 degree direction)	58.5 inches per second (45 degree direction) 41.3 (axis direction)	58.5 inches per second (45 degree direction) 41.3 (axis direction)
Cutting Force	Max. 600 gf in 48 steps	Max. 600 gf in 48 steps	Max. 4.41N (450gf)	Max. 600 gf in 48 steps	Max. 600 gf in 48 steps
Axial Acceleration	Max. 39.2 m/s2 (4 G) in 8 steps	Max. 39.2 m/s2 (4 G) in 8 steps	Max. 45.6' per second at 45° direction	Max. 39.2 m/s2 (4 G) in 8 steps	Max. 39.2 m/s2 (4 G) in 8 steps
Max. Cutting Area (W x L)	30 in x 164 ft (762 mm x 50 m)	42 in x 164 ft (1067 mm x 50 m)	50" × 164'	54 in x 164 ft (1372 mm x 50 m)	64 in x 164 ft (1626 mm x 50 m)
Guaranteed Precision Cutting Area	29.21 in x 50 ft	41 in x 32 ft, 35.2 in x 50 ft	50" x 79" (50" x 16.5')	53 in x 32 ft, 35.2 in x 50 ft	63 in x 32 ft, 35.2 in x 50 ft
Mountable Media Width	Min. 1.96 in / Max. 36.22 in	Min. 1.96 in / Max. 48.19 in	Min. 2 in / Max. 54 in	Min. 1.96 in / Max. 60.20 in	Min. 1.96 in / Max. 72.83 in
Max. Cross Cut Width	30 in	42 in		54 in	64 in
Number of Push Rollers	2 rollers	3 rollers	4 rollers	4 rollers	4 rollers
Blade Types	Supersteel (0.9 mm or 1.5 mm diameter)	Supersteel (0.9 mm or 1.5 mm diameter)	Supersteel (0.9 mm or 1.5 mm diameter)	Supersteel (0.9 mm or 1.5 mm diameter)	Supersteel (0.9 mm or 1.5 mm diameter)
Pen Types	Water-based fiber-tip pen, Oil-based ballpoint pen	Water-based fiber-tip pen, Oil-based ballpoint pen	Water-based fiber-tip pen, Oil-based ballpoint pen	Water-based fiber-tip pen, Oil-based ballpoint pen	Water-based fiber-tip pen, Oil-based ballpoint pen
Pouncing Tool Type	Steel pin 1.2 mm diameter, required optional pouncing tool (PPA 33-TP12)	Steel pin 1.2 mm diameter, required optional pouncing tool (PPA 33-TP12)		Steel pin 1.2 mm diameter, required optional pouncing tool (PPA 33-TP12)	Steel pin 1.2 mm diameter, required optional pouncing tool (PPA 33-TP12)
Media types	Self-adhesive marking film (vinyl, fluorescent, reflective, high-intensity reflective film) up to 0.25 mm thick, Sandblast resist rubber up to 1 mm thick	Self-adhesive marking film (vinyl, fluorescent, reflective, high-intensity reflective film) up to 0.25 mm thick, Sandblast resist rubber up to 1 mm thick	Up to 25 mil (.63 mm) cutting Graphtec Rhinestone Stencil material GRS 1510 Marking film (PVC film / fluorescence / reflective), Polyester film (under certain conditions)	Self-adhesive marking film (vinyl, fluorescent, reflective, high-intensity reflective film) up to 0.25 mm thick, Sandblast resist rubber up to 1 mm thick	Self-adhesive marking film (vinyl, fluorescent, reflective, high-intensity reflective film) up to 0.25 mm thick, Sandblast resist rubber up to 1 mm thick
Buffer Memory	2 MB	2 MB	2 MB	2 MB	2 MB
Included Software	Windows driver, Plotter controller, Graphtec Pro Studio (*5), Cutting Master 4, Graphtec Studio for Mac	Windows driver, Plotter controller, Graphtec Pro Studio (*5), Cutting Master 4, Graphtec Studio for Mac	Graphtec Pro Studio(Windows)(6), Graphtec Studio(Mac), Cutting Master 4(6), Windows Driver	Windows driver, Plotter controller, Graphtec Pro Studio (*5), Cutting Master 4, Graphtec Studio for Mac	Windows driver, Plotter controller, Graphtec Pro Studio (*5), Cutting Master 4, Graphtec Studio for Mac
Compatible OS	Windows 10 / 8.1 / 7, Mac OS X 10.6 to 10.11, Mac OS 10.12 to 1.14, Graphtec Studio: 10.6 to 10.14, Cutting Master 4: 10.7-10.14	Windows 10 / 8.1 / 7, Mac OS X 10.6 to 10.11, Mac OS 10.12 to 1.14, Graphtec Studio: 10.6 to 10.14, Cutting Master 4: 10.7-10.14	Windows 10 / 8.1 / 7, Mac OS X 10.6 to 10.11, Mac OS 10.12 to 1.15, Graphtec Studio: 10.6 to 10.14, Cutting Master 4: 10.7-10.14	Windows 10 / 8.1 / 7, Mac OS X 10.6 to 10.11, Mac OS 10.12 to 1.15, Graphtec Studio: 10.6 to 10.14, Cutting Master 4: 10.7-10.14	Windows 10 / 8.1 / 7, Mac OS X 10.6 to 10.11, Mac OS 10.12 to 1.15, Graphtec Studio: 10.6 to 10.14, Cutting Master 4: 10.7-10.14
External Dimensions (W x D x H)	Approx. 50" x 28" x 48" (1270 x 711 x 1219 mm)	Approx. 61.8" x 28" x 48" (1570 x 715 x 1219 mm)	Approx. 67" x 32" x 48" (67" x 45.2" x 48")	Approx. 73.6" x 28" x 48" (1870 x 711 x 1219 mm)	Approx. 84" x 28" x 48" (2130 x 711 x 1219 mm)
