Product Description

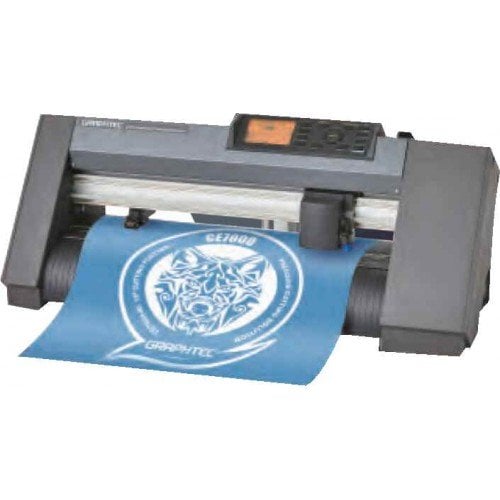

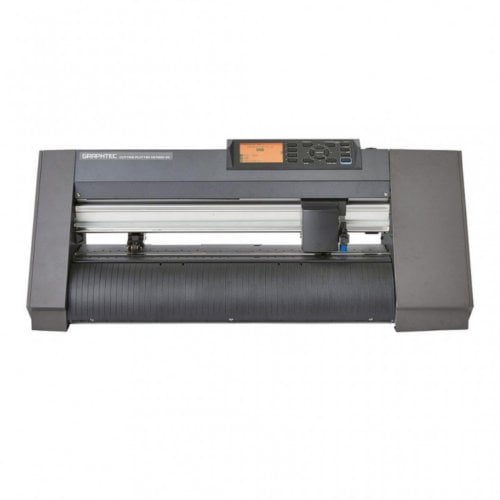

The NEW Graphtec CE7000 Series Vinyl Cutter and Plotter replaces the CE6000 Series. Some of the new CE7000 features include a barcode system, which retrieves files from the software, and a thumb drive support for offline cutting. Also, a new ARMS sensor to read registration marks faster. Finally, the CE7000 has perf-cut and ethernet. The Graphtec CE7000-40 15" Desktop Vinyl Cutter and Plotter is featured with 24 inches per second cutting speed and a 4.41 Newton cutting force to cut various media with high productivity. It is equipped with a 3.7inch LCD display and easy-to-use control panel that supports 10 languages. Other great features include ARMS8.0 that helps improve the productivity of print and cut, improved workflow with offline output using USB memory and data management function using Barcode, and useful standard or optional software that helps improve the efficiency of cutting operation. Maximize your productivity and profit with Graphtec CE7000-40 15" Desktop Vinyl Cutter and Plotter.
Product Details
- Ease of use with great media tracking on long runs.
- ARMS8.0 helps improve the productivity of print and cut.
- Improved workflow with offline output using USB memory and data management function using Barcode.
- Useful standard or optional software helps improve the efficiency of cutting operation.
- 4 sizes are available depending on the application.
- Supports various cutting patterns such as perforation cut with maximum cutting force 4.41N (450gf) and maximum cutting speed 1000mm / s (* 1).
- Cutting performance that guaranties accurate 5m length cutting (*3).
- Data Link Function (Barcode Data Management/Continuous Cutting).
- Continuous Cut (Data Link function).
- Supports colored marks / specialty media.
- Supports Adobe Illustrator "Crop Marks".
- Expanded Cutting Area.
Specifications
- Configuration: Grit rolling type
- Drive Method: Digital Servo Drive
- Max Cutting Area (W x L) (*1): 15" × 164'
- Cutting Area of Guaranteed Accuracy (*1) (When using optional basket): 14" × 79"
- Mountable Media Width:
- Min.: 2"
- Max.: 19"
- Mountable Roll Media Mass: 11 lbs (5kg)
- Number of Push Rollers: 2 rollers
- Max. Cutting Speed: 24" per second at all direction
- Acceleration: Max. 69.6' per second at 45° direction
- Cutting Force: Max. 4.41N (450gf)
- Minimum Character Size: Approx. 5 mm (0.016") alphanumeric (varies depending on character font and media)
- Mechanical Resolution: 0.005 mm
- Programmable Resolution: GP-GL: 0.1/0.05/0.025/0.01 mm HP-GLTM (*2): 0.025 mm
- Repeatability (*1): Max. 0.1 mm in plot up to 2 m (Excluding media expansion and contraction)
- Mountable Number of Tools: 1 tool
- Blade Types: Supersteel
- Pen Types: Oil-based ballpoint pen, Water-based fiber-tip pen
- Media Types: Up to 25 mil (.63 mm) cutting Graphtec Rhinestone Stencil material GRS 1510 Marking film (PVC film / fluorescence / reflective), Polyester film (under certain conditions)
- Interface: USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX
- Buffer Memory: 2MB
- Command Sets: GP-GL / HP-GL™ (Set by command or auto-detect) (*2)
- Display: Graphic type LCD with back-light (240dots x 128dots), supports 10 languages
- Power Source: 100V to 120V AC, 200V to 240V AC, 50/60 Hz
- Power Consumption: Upt to 100W
- Operating Environment: 10 to 35°C, 35 to 75% R.H. (non-condensing)
- Guaranteed Accuracy Environment: 16 to 32°C, 35 to 70% R.H. (non-condensing)
- External Dimensions (W x D x H)(With basket): Approx. 30.4" x 11.5" x 12.3"
- Weight (approx.) (With basket): 28.7 lbs (13 kg)
- Compatible OS (*4):
- Windows 10/8.1/7
- Mac OS X 10.6 ~ 10.11 / macOS 10.12 ~ 10.15 (Graphtec Studio: 10.6 - 10.15, Cutting Master 4: 10.7 - 10.15)
- Supported Software (*5): Graphtec Pro Studio(Windows)(*6), Graphtec Studio(Mac), Cutting Master 4(*6), Windows Driver
- Safety: PSE, UL/cUL, CE mark
- EMC: VCCI Class A, FCC Class A, CE mark
- *1 Operated with Graphtec-specified cutting conditions and media. For long-length cutting, the basket is used.
- *2 HP-GLTM is a registered trademark of Hewlett-Packard Company.
- *3 When equipped with the stand.
- *4 Graphtec does not support software/driver used with operating systems that have become obsolete and are no longer supported by the OS developer.
- *5 The software is available for download from Graphtec’s website.
- *6 It requires an Internet connection in order for activation or registration when starting the software for the first time.
