Product Description

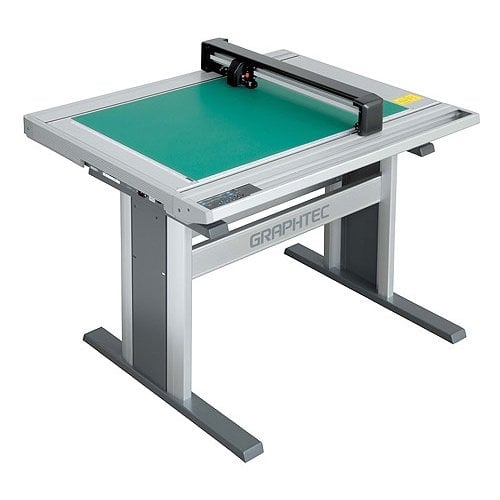

This Graphtec FC4510-60 34" x 23.6" Flatbed Vinyl Cutter and Plotter is capable of processing various materials with accuracy compliant to most industry requirements for pattern making. It is ideal for high-precision and medium-heavy material crafting jobs and is suitable for cutting intricate designs on vinyl, photo-masking films, foam material, cardboard, oil board, and sandblast resist rubber. It is also suitable for PET (polyethylene terephthalate), Polyamide, Stiff paper, Cardboard, Microflute board or Industrial materials with precise adjustable cut pressure up to 600 gf. The Graphtec FC4510-60 has a maximum speed of up to 30"/sec, a maximum force of up to 600 gf (5.88N), and has a cutting area of 33.8" x 23.6" (W x H). It comes standard with a dual head configuration allowing pens, cutting tools, and creasing tools to be loaded simultaneously. Other great features are: ARMS (Advanced Registration Mark Sensing System), Reverse-side cutting and creasing with ARMS, Copy function, Creasing function, Repeatedly cut function. This Graphtec FC4510-60 34" x 23.6" Flatbed Vinyl Cutter and Plotter is the most economical solution for cutting thick, hard materials that cannot be fed through a roll-feed/friction-feed cutting plotter.
Product Details
- Maximum cutting speed is 750mm/s (Table top type cutting plotter with excellent cost performance). Flatbed cutting plotter is used for not only sign making but also for a wide range of industrial applicaitons and processes. Max.750mm/s cutting speed is useful for getting high productivity. FC4500 Series are professional flatbed cutting plotters capable of processing a wide variety of materials with accuracy. Compact size that can be set on a table with precise control of contour cut, half cut, perforated cut, and plotting.this FC4500 Series is the most economical solution for cutting thick, hard materials that cannot be fed through a grit rolling type cutting plotter.
- Media hold-down method. It is very important to select exact media hold-down method in order to perform a precise cut. FC4550 Series provide the following method to fit a variety of media.
- NEW! Low tack cling mat (CM-0004). The media is held by the dot shaped adhesive material on the low tack cling mat. Low tack cling mat size: 17.126 in x 24.0157 in, thickness 0.4 mm. It is suitable for plastic film based media.
- NEW! Micro suction cling mat (CM-0005). The media to be cut is held to the cutter by the micro-sucker on the cling mat. Micro suction cling mat size: 17.126 in x 24.0157 in, thickness 0.8 mm. It is suitable for paper based media.
- Adhesive mat (CM-0002). The media to be cut is held to the cutter by the sticky soft plastic mat. Adhesive mat (soft mat for making the creasing) size: 17.126 in x 24.0157 in, thickness 1 mm. It is suitable for cardboard.
- Adhesive sheet (CM-0003). The media to be cut is held to the cutter by the pressure-sensitive adhesive on the adhesive sheet. Adhesive sheet (double-sided adhesive coated sheet) size: 21.45 in x 65.6 ft. It is suitable for harder media that needs higher cutting forces.
- Suitable materials (MEDIA).
- Marking film, PVC (Vinyl) - Labels/stickers, Film/paper - High-intensity reflective film - Cardboard (Paper articles, POP, POD)
- Paper with lamination - Micro flute board (F/G grades)
Specifications
- Configuration: Digital servo system, Flatbed
- Media hold-down method: Adhesive sheet / mat
- Effective cutting area: 860 x 600 mm (33.8 x 23.6 inch)
- Mountable media: 666 mm (26.2 inch) (Y-axis direction)
- Media type:
- Marking film (vinyl, fluorescent, and reflective)
- Stiff paper/card (for stencils, etc.) up to 0.5 mm thick (The CB15U or CB15U-K30 cutter blade is used.)
- Polystyrene foam sheets up to 0.8 mm thick (The CB15U-K30 or CB15U-K20 cutter blade is used.)
- Sandblast rubber sheets up to 1.0 mm thick (The CB15U-K30 or CB15U-K20 cutter blade is used.)
- Microflute board (F/G grades)
- Clear sheets for plastic boxes
- High-intensity reflective film (The CB15UA cutter blade is used.)
- Maximum cutting speed: 750 mm/s (30 inch/s) (1 to 75 cm/s in 23 steps)
- Cutting pressure: Tool 1, Tool 2: Max. 5.88 N (600 gf), in 48 steps
- Minimum character size: approx. 5 mm square (varies with the character font and media)
- Mechanical resolution: 0.005 mm (5µm)
- Programmable resolution: GP-GL mode: 0.1/0.05/0.025/0.01 mm, (HP-GL is registered trademark of the Hewlett-Packard Corporation of the United States.) : 0.025 mm
- Distance accuracy: Max 0.2% of the distance moved or 0.1 mm, whichever is larger (When operated with Graphtec specified media and conditions.)
- Perpendicularity: Max 0.4 mm / 610 mm
- Repeatability: Max 0.1 mm (When operated with Graphtec specified media and conditions.)
- Standard interfaces: RS-232C, USB2.0 (High speed)
- Buffer memory: 2 Mbyte
- Command sets: GP-GL and [HP-GL is registered trademark of the Hewlett-Packard Corporation of the United States.] emulation (selected by menu)
- Number of tools: 2 tools
- Cutter blade, pen, and tool types:
- Cutter blade: supersteel
- Pen: oil-based ballpoint pen
- Creasing/scoring tool
- Others: ARMS (Advanced Registration Mark Sensing System), Reverse-side cutting and creasing with ARMS, Copy function, Creasing function, Repeatedly cut function
- Power supply: 100 to 240 VAC, 50/60 Hz (Auto switching)
- Power consumption: Max. 120 VA
- Operating environment: Temperature: +10 to +35 degree C (44 to 95 degree F) , Humidity: 35 to 75% RH (non-condensing)
- Guaranteed accuracy environment: Temperature: +16 to +32 degree C (55 to 90 degree F), Humidity: 35% to 70% RH (non-condensing)
- External dimensions (W x D x H) (Tolerance: +/- 5 mm): 1172 x 962 x 200 mm [The stand is not included] (46.1 x 37.9 x 7.9 inch)
- Weight: approx. 27 kg (60 lbs.)
- Compatible OS: Windows 10 / 8.1 / 8 / 7 , Mac OS 10.7 to 10.12
- Supported software: Cutting Master 4, Graphtec Pro Studio, Graphtec Studio(for Mac)
- Certifications: UL , cUL , CE making, FCC-A, EN55022-A, RoHS
