Product Description

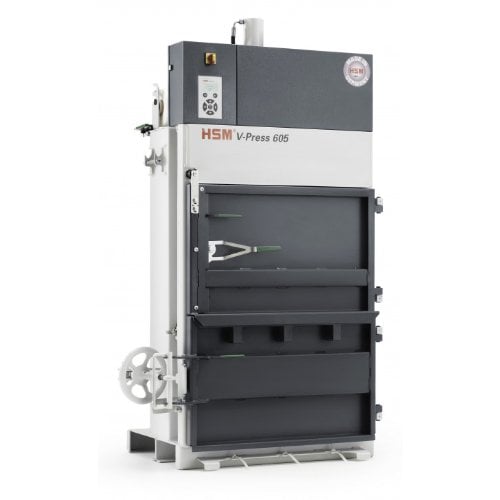

The HSM V-Press 605 reduces the volume of cardboard or foils in an economical way. To fill the press, the upper half of the doors is swung to the right.
Product Details
- Hand wheel door lock - Easy to handle thanks to counter-rotating thread for quick opening and closing.
- HSM TCS (Torsion Control System) for monitoring press ram movement.
- Automatic start of the pressing process after closing the door.
- Convenient membrane keypad with text display, which shows the current status of the machine.
- Special retaining claws optimize the compression of the pressing material and reduce the number of loading actions.

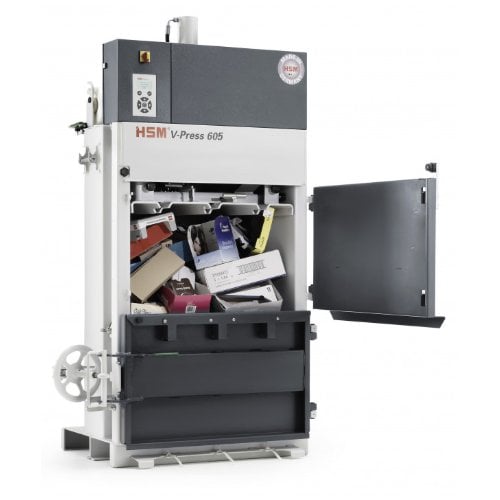

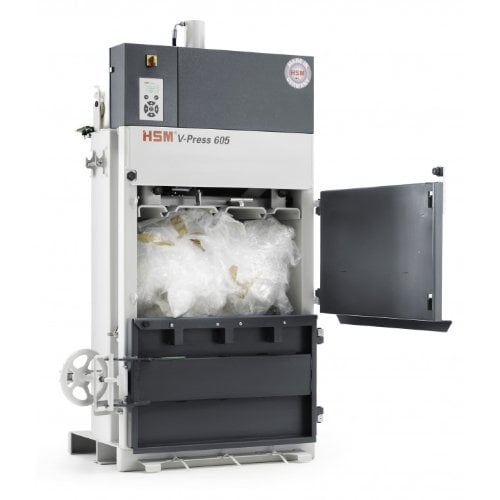

- Suitable for cardboard as well as film.
- Bale strapping with polyester tape.
Specifications
- Order number: 6112151
- EAN: 4026631056250
- Pressing power: 57 kN
- Specific pressing power: 11.85 N/cm²
- Driving power: 1,5 kW
- Voltage / Frequency: 230 V / 50 Hz
- Cycle time when idling vacío: 21 s
- Loading height: 655 mm
- Volume throughput at 20kg/m³ (theor.): 0,04 t/h
- Loading Aperture (W x H): 800 x 495 mm
- Bale weight: 70 Kg
- Dimensions (W x D x H): 1190 x 815 x 1980 mm
- Weight: 485 kg
- Method of strapping: vertical
- Number of strappings: 3
- Art der Umreifung HP: Vertikal
- Type of consumables: Strapping tape
- Industry type: Logistics & Distribution, Industry & Manufacturing, Print & Packaging, Retail
- Press material: Mixed paper, Cardboard, Punch waste/residue, Plastic film
- Use for product line: V-Press
