Product Description

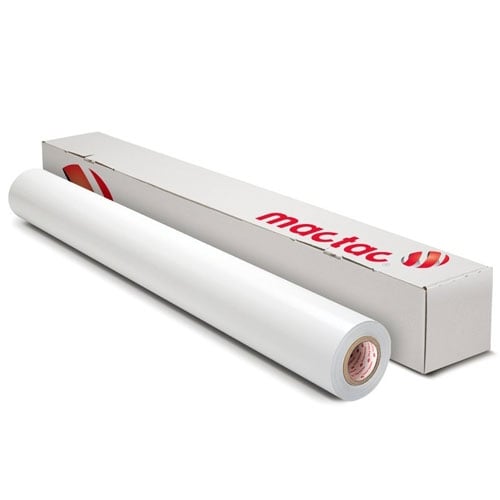

These Mactac IMAGin StreetTRAX Grit Coated White Outdoor Floor Print Media is a 13.5 mil, non-skid, printable, clear grit coated outdoor stabilized white film. It is designed for the production of outdoor sidewalk and parking lot ‘floor’ graphics. These films are coated on one side with 2 mils of an aggressive, permanent, pressure sensitive adhesive that bonds extremely well to flat or slightly rough surfaces like concrete and asphalt. StreetTRAX are designed for excellent printability with flatbed latex, UV-Gel and UV-cured inkjet printers.
Product Details
- Features and Benefits:
- 13.5 mil, non-skid, printable, clear grit coated outdoor stabilized white film.
- Designed for the production of outdoor sidewalk and parking lot ‘floor’ graphics.
- Designed for excellent printability with flatbed latex, UV-Gel and UV-cured inkjet printers.
- No Lamination Needed.
- Coated on one side with 2 mils of an aggressive, permanent, pressure sensitive adhesive that bonds extremely well to flat or slightly rough surfaces like concrete and asphalt.
- Typical Uses:
- Retail Stores
- Fairs
- Sports Arenas
- Private Businesses
- Marathons
- Public Buildings
- Schools
- Convention Centers
- Entertainment Venues
- Sporting Events
- Plant Safety Messages
- Parades
- Use with:
- All Printers, including: latex, UV in jet printers and printing processes
- Physical Properties
Property Typical Values Test Method Thickness: mil (mm)
Face + Grit + Adhesive
Liner
13.5 (0.35)
4.8 (0.12)PSTC-133 Peel Adhesion lb./in. (N/25mm)
180° on Stainless Steel
- 15 min
- 24 hr.
7.5 (33)
11.0 (48)PSTC-101
(CTM-25)Shear, Hours to fail
Stainless steel - 1/2" x 1/2" x 1000g @ 72°F
2PSTC-107 Dimensional Stability, inches (mm)
48 hours @ 158°F
max 0.05Mactac CTM-21
Bonded to aluminumProbe Tack lb. /in² (N/25mm)
Stainless Steel
1.1PSTC-3 Temperature Range
Minimum Application:
End Use:
50°F (+10°C)
-20°F to 220°F (-28°C to 104°C)Dynamic Coefficient of Friction (DCOF) *
DCOF Wet
SCOF Wet
0.59 (pass)
0.71 (pass)
ANSI /NFSI B101.3
ANSI /NFSI B101.1 - Approved Printing Methods
Screen Printing: HP Indigo ☐ UV Cured ☒ Off-set ☐ Solvent ☒ UV Off-set ☐ WF Digital: UV Inkjet ☒ Thermal Transfer ☐ Eco-solvent ☐ Flexographic * ☐ True solvent ☐ UV Flexographic ☐ Canon UVgel 356 ☒ Narrow Web UV Inkjet ☐ Latex ☐
- Slip Resistance
* New SLIP RESISTANCE STANDARDS:
Wet DCOF Value Slip Resistance Potential Action >0.45 (inclines), 0.42 (level) High -- lower probability of slipping Monitor DCOF regularly and maintain cleanliness >0.30 - 0.45(inclines), 0.30 - 0.42 (level) Acceptable -- increased probability of slipping Monitor DCOF regularly and maintain cleanliness. Consider traction-enhancing products and practices where applicable for intended use. <0.30 Low -- higher probability of slipping Seek professional intervention. Consider replacing flooring and/or coating with high-traction products.
Various standards-making authorities have developed different methods for evaluating the slip-resistance characteristics of walkway materials. Organizations’ including the American Society of Testing and Materials (ASTM), the American National Standards Institute (ANSI), and the National Floor Safety Institute (NFSI), has established different slip-resistance test protocols. The standard, ANSI/NFSI B101.3, is the newest, most consistent and government mandated specification based on a DCoF (Dynamic Coefficient of Friction) test protocol and one of the few to be approved for testing on wet surfaces. The previous standard, ASTM C1028, has been withdrawn as an unreliable test method and has not been replaced. ASTM D2047 (UL410) is only for floor finishes (waxes, varnishes etc.) and not appropriate for floor coverings.
According to ANSI/B101.1 – Maintaining a High Traction surface is the responsibility of the landowner. To maintain outdoor floor graphics using StreetRAP an PF6600 occasionally clean the surface with a brush and soap and water cleaner to maintain a “High Traction” rating and a safe walking surface. If this cannot be done the graphic must be removed once it loses its safe traction rating. - Durability
- 1. The durability of a completed StreetTRAX floor graphic is 1 day to 3 months for pedestrian traffic and maybe up to 1 week for light vehicular traffic on smooth to slightly rough surfaces.
- 2. The outdoor durability of the unprinted film is 2 years on vertical surfaces.
- 3. Indoor durability on vertical surfaces is 5 years.
- 4. Our goal in developing these is that the ink wears down before the product (top down wear).
- Shelf Life
2 years from D.O.M. when stored at 60/77°F (15/25°C) and 50% relative humidity in the original package. - Removability
2 years from D.O.M. when stored at 60/77°F (15/25°C) and 50% relative humidity in the original package.- 1. To remove; lift one edge, you may need a putty knife to get an edge started, and pull using short, quick tugs. Keep the angle low, (less than 45°) for best results.
- 2. Removal is much easier when done in the cool early morning hours. Do not use heat to assist in removal as heat will actually increase the bond of this adhesive.
- 3. If any residual adhesive residue is present after removal of the graphic, Citrus or solvent basedadhesive removers will clean the residue.
To achieve the best possible print quality, please make sure that the correct ICC profiles or printer settings are used. Profiles can be obtained from our Distributors or can be downloaded from www.mactac.com. Printer and heater settings and ICC profiles can also be downloaded from some O.E.M. or software manufacturer’s websites.
The ICC profiles are provided solely as a customer resource. Print environment, the individual nature of printing systems, inks and software can significantly affect output. It is the customer’s responsibility to determine the suitability of any profile for use in their specific print environment. - Limitations
- 1) StreetTRAX is not intended to be used as a conformable wall wrapping film.
- 2) StreetTRAX used on sealed concrete may result in a permanent application and will not be easily removed. Always test first in an inconspicuous area.
- 3) StreetTRAX on varnished surfaces and soft walls like stucco or drywall will damage the surface upon removal. Always test first in an inconspicuous area.
- 4) StreetTRAX can withstand light vehicular traffic. Short term applications, like for special events or parades that last a couple days are acceptable.
- 5) StreetTRAX used on some concrete surfaces, especially newly poured concrete, may fail due to efflorescence which is beyond Mactac’s control and therefore no claim for successful application or removal is made by MACtac in this instance. Efflorescence is a powdery white material that forms on the surface of the concrete and is caused by calcium salts which is naturally in the concrete. As water moves out of the concrete it carries with it some of this salt, which then interferes with the bond of the adhesive to the concrete surface.
- 6) The user is responsible for determining the product’s suitability, including adhesion and if needed, removal characteristics when used in applications other than listed specifically in this Performance Guide.
- 7) If there are any questions about applications, please contact your Mactac sales representative to discuss your requirements for recommendations.
- 8) If this is a printed Performance Guide it is an uncontrolled document. Please check the Mactac website for the latest, most up-to-date version.
- Values given are typical for unprocessed product and are not for use as specifications. Processing may change the values.’
- Product reinforced with 2-mil polyester during adhesion tests.
- Recommendations
Always test your combination of IMAGin products, inks and laminating films prior to commercial use.
- 1)Printing Conditions: Print in conditioned pressroom at ±73°F (23°C) and 50% RH. The maximum allowable ink saturation is 270%.
- 2)Drying Requirements: Solvent, Eco-solvent and Mild-solvent inkjet prints require 24 - 48 hr. drying time - open to the air. Inks do not dry when printed media is rolled up.
- 3)Laminating Conditions: Do not laminate StreetTRAX
- 4)Cutting recommendations: Use a 60 degree carbide blade.
- 5)Transportation Conditions: To allow for easy transportation, StreetTRAX series can be rolled up, with the image out, with a minimum diameter of 6 inches (15cm). During transportation or storage, avoid exposing them to extreme temperature and humidity changes.
- 6)Application Requirements: The surface must be absolutely dry, clean and in reasonably good condition.
- a) StreetTRAX must be applied in dry weather to a dry surface at temperatures above 50°F (10°C) on days the temperature is expected to rise to at least 70°F (21°C). For example: if it rained the day before or early morning, allow 24 hours of dry weather for the concrete surface to dry out.
- b) Heat helps the adhesive flow to the rough surface to create a better bond. Do not attempt to apply graphics late in the day when the temperature is expected to cool down.
- c) The rougher the surface the less contact the adhesive will have and the less chance your graphic has for success.
Adhesive contact is much better on smoother surfaces!
- d) To clean the surface, use a brush or stiff bristle broom to remove dirt and dust, sand and gravel or other loose contaminates. Do not use water or cleaners which will cause the surface to become wet.
- e) Bridge graphics over seams if needed; do not force the graphic down into the seam.
- f) Once aligned, pull back 1-2 inches of the liner to expose the adhesive to align and start the application. Remove 6 - 10 inches of liner at a time and using a firm roller or a firm, short bristle brush with very firm pressure, forcing the adhesive down into the surface. Continue with 6 - 10 inches at a time to eliminate air bubble, complete the application.
- g) Once complete go back over all edges again to make sure they are in full contact to the surface.
- h) On rougher surfaces use heat and pressure to conform at least 1” of the graphic edge down into the surface.
- i) Butt edges on multi-panel graphics. We do not recommend using a 1” overlap to seam the graphic. This creates excessively high levels which may result in trips, falls and injuries.
- j) Trim sharp corners to a rounded radius to help minimize edge lifting.
Specifications
- Adhesive Type: Permanent Solvent Acrylic
- Color: White
- Films: Stabilized White T/C PE
- Finish: Matte
- Size: Choose Above
- Liner Category: 60# Poly-Coated
- Outdoor Durability: 3 Months
- Precise Program: N
- Print Method: Latex, Solvent Screen, UV Cured Screen, UV Inkjet
