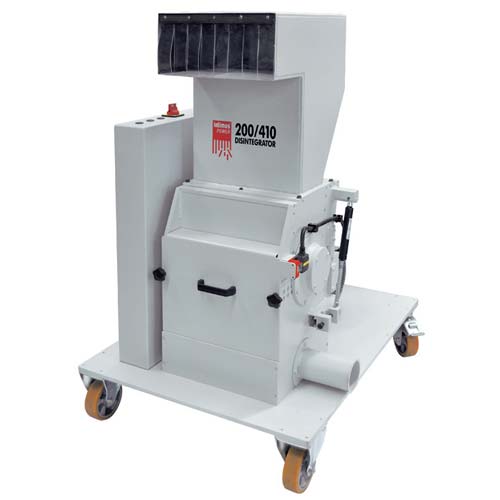

Product Description
The rotors of intimus Disintegrators are CNC-milled from solid stock. They are optimized for the processing of massive piles of material like bank note bundles and wrappers or thick stacks of printed sheets by use of specially designed bolted knives. All of our disintegrators use the unique ?Diagonal Cut? technology, which offers advantages over other knife layouts. Benefits include: automatic feeding by the knives themselves, smooth operation, minimum dust content of the mill charge and very low power consumption. The rotor knives do not need to be adjusted and are simply fixed adjacent to the bed stop. By positioning the two solid knives, the accurate gap between rotating and solid knives is adjusted. All knives are made from tooling steel, hardened, long-lived and can be easily re-sharpened multiple times with no need for special appliances.
Product Details
- Large and solid bearings, externally mounted
- Wide opening milling chamber for perfect access to all knives and fast and convenient adjustment or exchange of knives
- Easy access to the milling chamber, can be opened without tools, easy to clean, secured with safety interlock
- The Rack is equipped with a feed tunnel from sheet steel with sound insulation, two rubber curtains, and two fixed and two guide rollers for easy transportation. Guide rollers are lockable. Belt guard from sheet steel.
Specifications
- Throughput: 150 kg / h at 4 mm
- Feed opening size: 16" x 8"
- Power consumption: 7.5 kW
- Motor: 7.5 kW thermo protected (220 V, 3 PH, 60 Hz)
- Number of blades (rotor / bed): 5 / 2
- Knife layout: single plus dual "Diagonal Cut"
- Noise level: < 80 db (A)
- Dimensions (W X D X H): 34.6" x 45.3" x 58.5"
- Weight: 1,351 lbs.
- Part Number: 89765
