Product Description

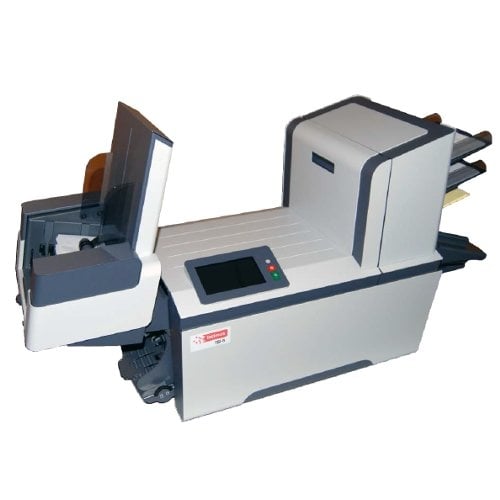

The TSI-5 combines unparalleled ease of use with advanced technology. With its compact footprint, large loading and unloading capabilities, and features like CIS scanning technology, the TSI-5 can process a wide variety of mailpieces for direct marketing campaigns, invoicing, monthly statements and many other applications. Easy to use via its full-colour touch screen and unique intuitive navigation, and extraordinarily quiet, the TSI-5 fits perfectly into any work environment. With its Contact Image Sensor (CIS) scanner technology, the TSI-5 can read any type of coding such as OMR, OCR, 1D barcodes and 2D data matrix codes. The code can be printed anywhere on the document. The scanner reads the full A4 page and the barcode can be read horizontally or vertically. This unique feature provides full flexibility to fulfil any layout requirement. Customize your TSI-5 to your need with the several feeder configurations available that allows you to design and deliver attractive mailshots.
Product Details
- Automated Stacker. The high-capacity vertical stacker holds up to 500 finished envelopes.
- Touch Screen Display. Full-colour 7" touch-screen enables navigation easily to create a new job or access existing jobs within seconds.
- CIS Scanner. The scanner can read any type of coding printed horizontally or vertically in the document.
- Document Feeders. Quickly process multiple page sets of up to 975 documents using the 3x325 standard feeders. All feeders can be used in cascading mode and have paper sensors which ensure the operator is constantly informed on how to proceed to run the system
- A state-of-the-art graphical user interface. Designed for all users, the intuitive, full-colour, highresolution 7” touch-screen provides a wizard-based user-friendly interface, making it easy for anyone to select and run their folding and inserting jobs. Alternatively, see how easy it is to create a new job using our exclusive load’n’Go intuitive procedure. Simply load your documents and envelopes and then press the start button. The TSI5 will automatically measure the length of all loaded documents as well as the envelope in order to adjust all settings and process the appropriate mail items.
- Smart solutions to maximize flexibility. The exclusive FlexFeed tray enables you to process any document size or type. In combination with the unique semiautomatic envelope separation mechanism, this provides full flexibility for feeding a wide variety of document types. You can use practically any size and type of material to address your prospective and current customers efficiently.
- Optimise productivity with the maxifeeder tray.Choose to load the MaxiFeeder with up to 325 business reply envelopes or load up to 1,200 sheets to maximize your productivity.
Specifications
TECHNICAL DATA- Speed: Up to 3,800 / hour
- load’n’Go automatic setting: Yes
- flexFeed® multi-format feeder: Yes
- Multiple sheet feeding: Yes
- Cascade from all feeders: Yes
- Number of feeders: Up to 3 feeders
- powerFold folding capacity (one set, single fold): Yes (up to 10 sheets 80 gsm)
- Job memory: 50
- Manual feed: Yes
- Document feeder capacity: 325 sheets 80 gsm
- High capacity document feeder 725 sheets 80 gsm: Optional
- MaxiFeeder capacity:
- 325 business reply envelopes
- Load up to 1,200 sheets 80 gsm Optional
- Envelope feeder capacity (C5/C6 envelopes): 325
- High capacity vertical stacker up to 500 envelopes: Optional
- Side exit up to 4OO C5 envelopes: Optional
- Fold types: Letter, Z, single, double parallel, no fold
- insert’n’Frank franking system integration: Optional
- Document Height/ Width/ Weight: 90-356/ 130-230 mm 60-250 gsm
- Envelope length: 90-162 mm
- Set thickness: 2.5 mm
- Envelope width: 160-248 mm
- Tailor-made furniture: Optional
- Standard configuration: 3 feeders with catch tray
- Length x Height x Depth: 1270 x 720 x 500 mm
- Weight: 79 Kg
- Noise level: 66 dB
MAIL QUALITY & SECURITY
- Automatic double detection: Standard
- Accumulate before folding: Standard
- Optical Character Recognition (OCR): Optional
- Tip to tip sealing: Standard
- Optical Mark Recognition (OMR): Optional
- LAN embedded: Standard
- Wi-Fi embedded: Standard
- Barcode Reader (BCR) for 1D and 2D barcodes: Optional
- Configuration 1: The EXPERT has 1 daily mail feeder, 2 standard feeders, and 1 side exit tray.
- Configuration 2: EXPERT plus HCDF (High Capacity feeder).
