Product Description

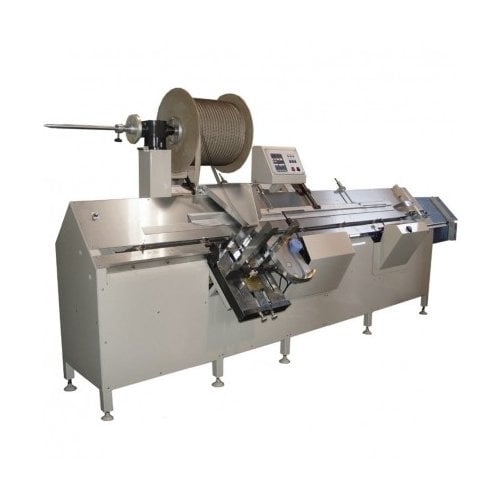

This James Burn BB400 Speedbind Automatic Wire Binding Machine provides the ultimate productivity level in a minimum footprint at afoordable price. It has an output ranging from 1,500 to 3,000 documents per hour depending on format. James Burn BB400's simplicity guarantees high speed and finishing quality. Closing 3:1 and 2:1 pitch wire from 1/4" up to 1", it can take all types of documents including flush cut, oversized covers as well as tabbed sheets. It handles skip binding and can use traditional wire spools. This binder can automatically feed back covers for desktop calendars and turn them around after closing before reception. The BB400 Speedbind's control panel is simple and easy to use. Mechanical adjustments as well as insertion guide and closing tool changes are performed from the front of the machine. This James Burn BB400 Speedbind Automatic Wire Binding Machine can bind a wide variety of applications including note pads, exercise books, diaries as well as desktop calendars.
Product Details
- Binding speeds from 1,500 to 3,000 documents per hour, depending on the application, making it one of the fastest automatic wire machines in its class.
- Easy to use control panel for job setup.
- Fully automatic binding completed with just 1 operator.
- Handles 3:1 pitch Wire-O from 1/4" to 9/16" and 2:1 pitch Wire-O from 5/8" up to 1" diameters.
- Compatible with Wire-O spools and SnakeSkin Wire-O.
- Unlimited skip binding with 2 loop skip minimum.
- Maximum punching thickness of 8 mm.
- Handles paper sizes from 4 5/8" x 4 5/8" up to 15 5/8" x 15 5/8".
- Handles flush cut documents, oversized covers, and tabbed sheets.
- Small overall footprint to take up less space on your operating floor than other comparable machines.
- Mechanical adjustments, insertion guide, and closing tool changes are completed from the front of the machine.
- Ideal for various wire binding applications, including calendars.
- Automatically feeds back covers for desktop calendars and turns them around after closing and before moving to the reception conveyor.
- Speedbind Binding Process:
- The operator positions the documents onto the left side of the machine
- The document is jogged by gravity
- The document is transported to the wire feeding section
- The wire element is cut to length and fed
- The wire element is inserted into the document
- The document moves to the closing station
- The document is stacked on the reception exit conveyor
- Optional Accessories:
- Board Feeder: The board feeder is a station that can be added to the machine. A stack of hard covers are loaded into the feeder, and it will automatically load them one at a time while the operator loads the book block. This eliminates the need to collate the covers with the rest of the book ahead of time.
- Closing Tools: Available in sizes from 1/4" to 1".
Specifications
- Item #: 04JBBB400
- Manufacturer Part Number: BB400
- Suggested User: Industrial
- Binding Style: Wire-O Binding
- Operation - Binding: Electric
- Compatible Supplies & Accessories:
- Wire-O Spools
- SnakeSkin Wire-O
- Board Feeder (Item# 04JBBB400BF)
- 1/4" Closing Tool (Item# 04JBBB400CT14)
- 5/16" Closing Tool (Item# 04JBBB400CT516)
- 3/8" Closing Tool (Item# 04JBBB400CT38)
- 7/16" Closing Tool (Item# 04JBBB400CT716)
- 1/2" Closing Tool (Item# 04JBBB400CT12)
- 9/16" Closing Tool (Item# 04JBBB400CT916)
- 5/8" Closing Tool (Item# 04JBBB400CT58)
- 3/4" Closing Tool (Item# 04JBBB400CT34)
- 7/8" Closing Tool (Item# 04JBBB400CT78)
- 1" Closing Tool (Item# 04JBBB400CT1)
- Power Voltage: 220v Single Phase 60 Hz
- Dimensions: 10’ 6” L x 4’ 11” W x 6’ 3” H (126" W x 59" D x 75" H)
- Actual Machine Weight : 710 lbs
- Shipping Length: 375
- Shipping Width: 211
- Shipping Height: 192
- Shipping (Web) Weight: 840 lbs
- Punch & Bind Capability: Binding Only
- Setup Time: 15-30 Minutes, Depending on Operator
- Paper Size: 4 5/8" x 4 5/8" up to 15 5/8" x 15 5/8"
- Accepted Paper Type: No Stock Limitations
- Selectable Speeds: 9 Speed Settings (Setting 4 is Lowest Recommended Speed)
- Speed: Between 1,500 to 3,000 Documents per Hour
- Skip Binding: Unlimited (Minimum 2 Loops per Skip)
- Maximum Punching Thickness: 4 mm
- Skip Binding: Unlimited (Minimum 2 Loops per Skip)
- Air Compressor Requirements: 5 Bar, 500 l/min (Dry Air)
- Control Panel: Standard Control Panel
- Control Panel Notifications: None
- Hands-Free Operation: No
- Special Training Required: Requires Installation & Training / Requires Operator with Mechanical Ability to perform Changeover, Set Up, & Machine Adjustments.
