Product Description

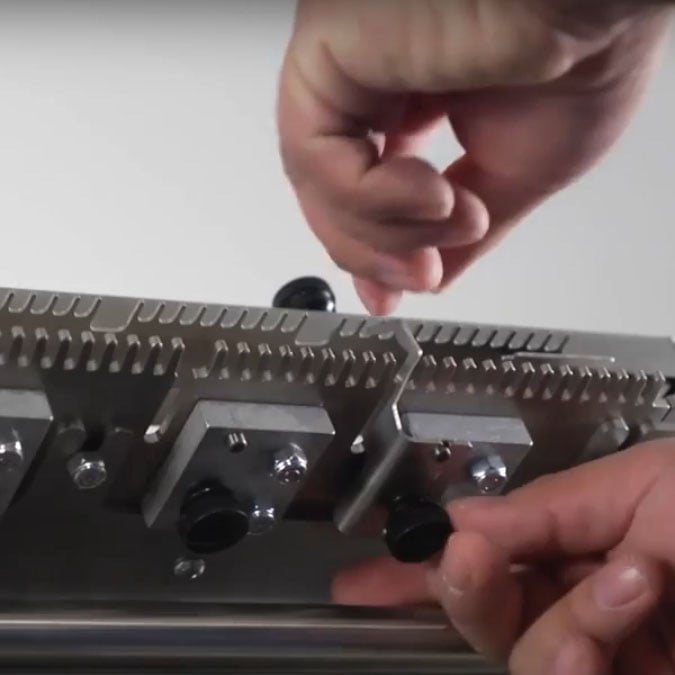

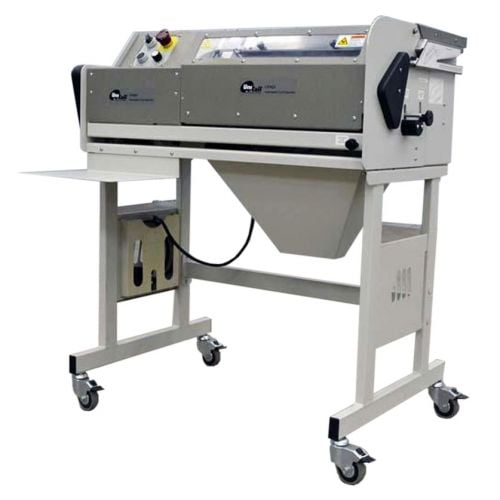

Maximize the functions of your James Burn CB30QS Automatic Coil Inserter and Crimper and expand the business with these high-quality accessories. Available are crimping head kits for smaller coils, 3:1 pitch crimping head set, 3:1 -pitch large diameter kit for inserters, and coil adapter kits. These accessories allow operators to accept coil binding jobs beyond the machine’s standard features.
Product Details

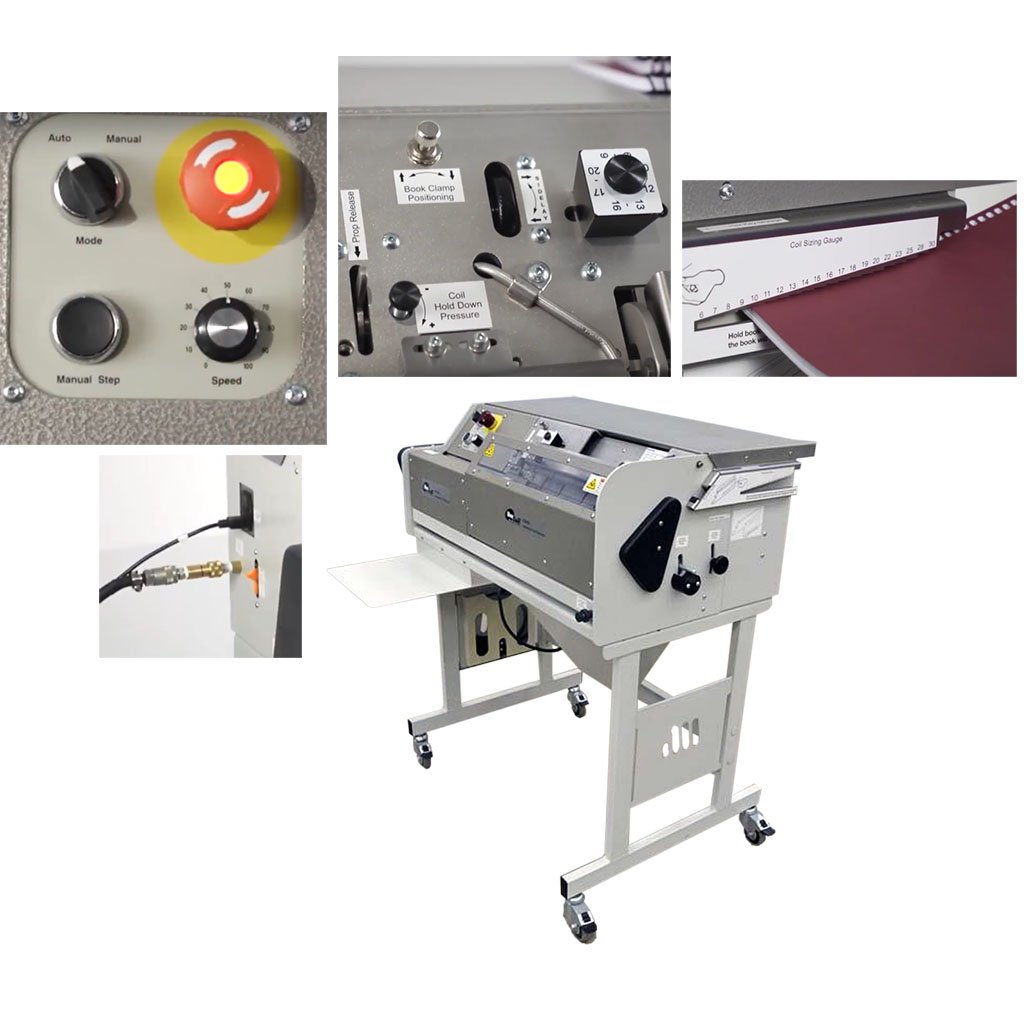

- Setup is quick and no tools are required for basic setup and operation.

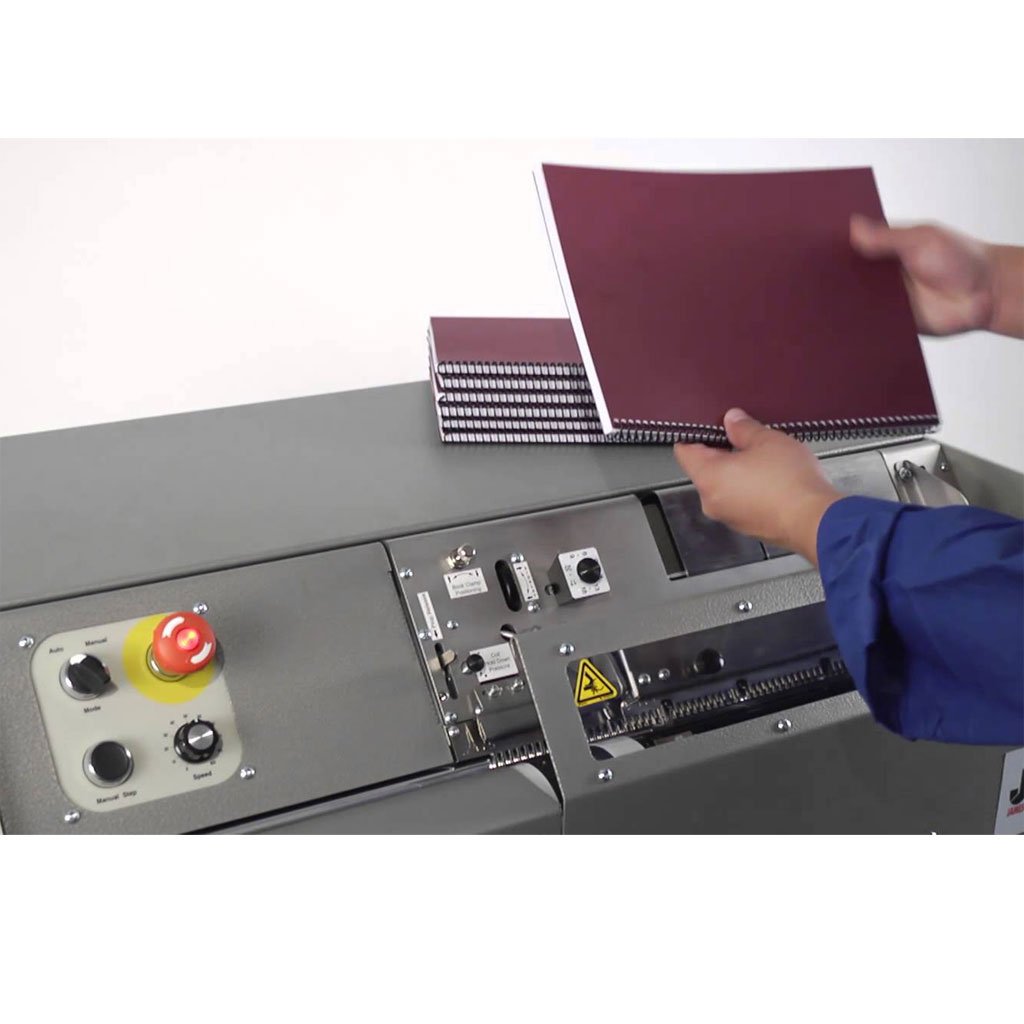

- So easy to use that it automatically inserts pre-cut coil lengths into pre-punched books and simultaneously crimps both ends in a single operation.
- Comes with 8 to 20mm Crimper Head
- Production speeds up to 600 books per hour.
- Comes standard as .2475 pitch and requires a 5 x 4mm oval punch die. (Optional 3:1 pitch available which requires a 6.5 x 5.5 mm oval punch dies for 22mm to 30mm size coil.)
- Built-in offcut handling and disposal.
- Hands free foot pedal actuated for two handed document placement.
- Can even handle tabs and covers. Vertical book placement accommodates tabs and wider covers.

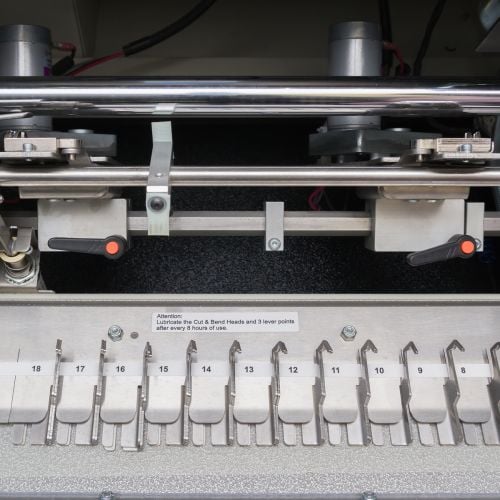

- 15 sets of spine formers; photo instruction manual and instructional video are included.

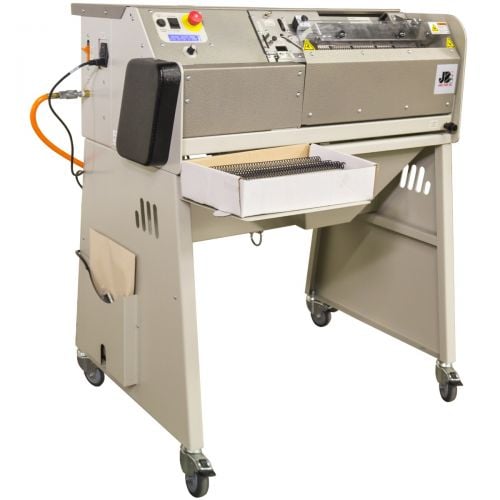

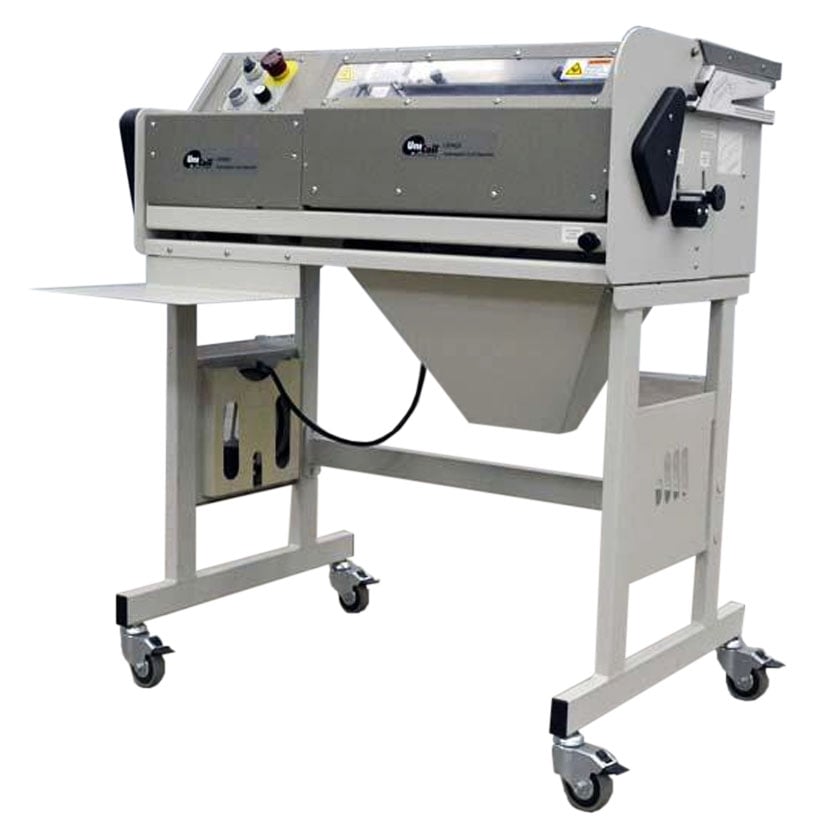

- Small Footprint and caster wheels allow quick and easy machine placement.
- Optional Accessories:
- 6mm & 7mm Crimping Head Kit
- 3:1 Pitch Crimping Head Set
- 3:1 Pitch Large Diameter Kit
- 12" Coil Adapter Kit for 8-1/2" Binding Edge
Specifications
- Coil Sizes: 8mm to 20mm (6mm, 7mm, and 22mm to 30mm with optional tooling)
- Compressed Air Requirement: 80psi @ 2 cfm.
- Power Requirements: 110v Single Phase 60 Hz
- Machine Dimensions: 36" W x 24" D x 42" H
- Weight: 190 lbs. (unpacked)
- Shipping Dimensions: 48" X 48" X 75"
- Shipping Weight: 550 lbs.
- Compatible Supplies: Up to 20mm 4:1 Pitch Spiral Coils
- Compatible Equipment: Spiral Coil Binding Machines
