Product Description

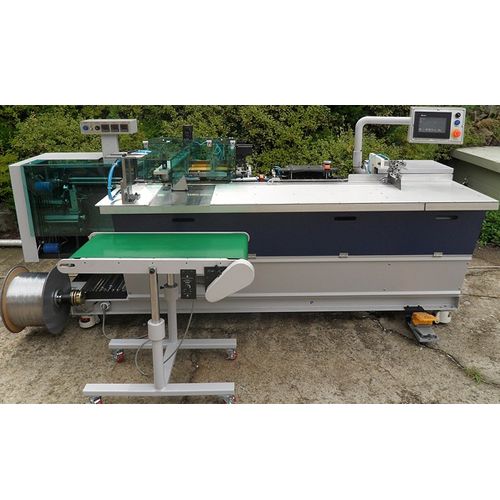

The CB40B Coil Binding System is an innovative and efficient solution for plastic coil binding production. It has an impressive ability to produce coils from filament and automatically bind, cut, and crimp documents at a speed of up to 1,000 documents per hour. This level of automation and speed significantly improves the overall productivity and streamline the binding process. It can handle a wide variety of applications, including calendars, notepads, books, diaries, and more. This feature makes it a comprehensive and adaptable solution for businesses involved in plastic coil binding. Moreover, the system is described as an affordable investment, which suggests that it offers cost-effective benefits for businesses looking to enhance their binding operations.
Product Details
- Features:
- Reliable and efficient operation
- Modern design using the latest engineering
- User friendly operation with touch screen controls
- Produces constant, high-quality products
- Mandrel size Formula:
- Document Thickness ÷ 75 X 100 = Mandrel size to use. (IE: 12mm document ÷ 75 X 100 = 16 mm mandrel)
Specifications
- Binding Capacity: Up to 1000 books per hour
- Punching Die Required: .2475 4 x 5mm Oval Hole
- Coil Sizes: 8mm to 30mm
- Filament Gauges (mandrell diameter): 1.8 mm for 9mm to 16mm Dia. / 2 mm for 18mm to 22 Dia. / 2.5 mm for 24 to 30mm Dia.
- Max Book Size: 14.8" B.E. x 19.65 (380 x 500mm)
- Min. Book Size: 4.7" B.E. x 4.3" (120 x 110mm)
- Book Thickness (binding only): Up to 7/8" (22.5mm)
- Power: 220V, 60Hz, Single Phase, 5000w
- Air Consumption: 2 CFM @ 75 PSI
- Compatible Supplies: Plastic Spiral Binding Coils
- Dimensions: 9.85' L x 3.45' W x 4.53' H (3000 x 1050 x 1380)
- Shipping Dimensions: 12' L x 4' W x 5.45' H (3660 x 1220 x 1660)
- Shipping Weight: 2425 lbs. (1,100kg)
