Product Description

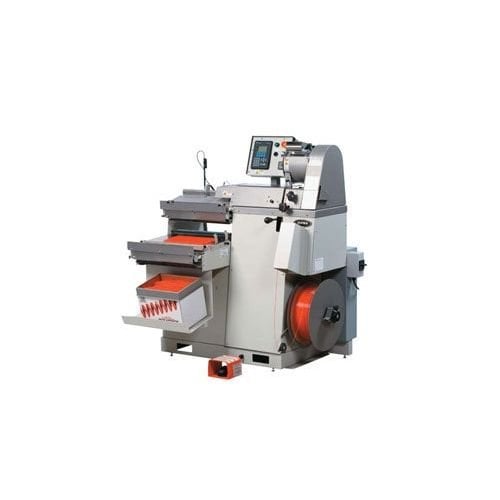

Support high production coil binding with James Burn CF30 Plastic Coil Forming Machine. The machine produces plastic coils on-demand, saving you time and money by producing the exact number of coils needed or ordered. This system reduces cost from packaging and increases profit in return. Seven(7) filament profiles enable operators to create 26 coil diameters ranging from 6mm to 30mm with the option to further expand p to 50mm in coil lengths from 6.5" to 43". Pre-programmed speed modes self-adjusts to optimize coil production. Convenient electronic temperature control aid in the precise forming of coils. Keep track of the job output with the digital counter that displays the output per box and total order requirement. Other features include interchangeable mandrel parts, DC variable speed motors, a unique roller system, automatic oiling, and an innovative hot start feature.
Product Details
- Vacuum Top-Feed Infeed Table: Offers a media loading capacity of up to 7.9” high, with optical sensors to control sheet separation and make adjustments on-the-fly.
- Two-in-One Outfeed: Fully automatic belt feeder for folded sheets, and a catch tray for crease-only jobs which can accommodate sheets up to 35” long.
- Fully Automatic Setup: Settings are automatically adjusted based on sheet size, weight and crease/perforation type.
- Lifetime Guaranteed Creaser Matrix: Heavy duty channel and anvil matrix is designed to last.
- Color Touchscreen: Intuitive, user-friendly interface with bold icons.
- Infeed Table Extension: Accommodates media up to 51” long.
- Programmed Creases: Common creases are simple to call up on the touchscreen.
- High-Speed Processing: Up to 7,500 sheets per hour (single crease only).
- Programmable Jobs: Users can store and recall an unlimited number of custom jobs.
- Quick Change Creasing Matrix Kits: Easy to swap in and out in just seconds, with no tools required.
- Floating Knife Folding System: Sheets pass through the dynamic creasing matrix, then through the patented folding mechanism, designed to prevent marks and scratches on digitally printed media.
- Flexible: Powerful creasing unit accepts standard, narrow, and ultra narrow creasing blades, as well as optional cross perforation blades
- In-Line Rotary Perforation: Perforate and crease in a single pass.
Specifications
- Speed:
- Up to 6,000 sheets per hour, half fold* (8.5” x 11.5”)
- Up to 7,500 sheets per hour, single crease only
- Sheet Size:
- Max: 27.6” x 15.2” (51” x 15.2” w/infeed extension table)
- Min: 8.3” x 3.7”
- Paper Thickness: Max: 0.0157” (400gsm) Min: 0.0035” (75gsm)
- Creases per Sheet: Up to 30
- Min. Repeat Crease Distance: 0.004”
- Programmable Jobs: Unlimited
- Max. Loading Capacity: Up to 7.9”
- Outfeed: Belt conveyor stacker, catch tray
- Dimensions: 84” L x 29” W x 55” H (118” L with infeed extension)
- Weight: 689 lbs.
- Power: 100-240VAC, 8-4A, 50/60 Hz
