Product Description

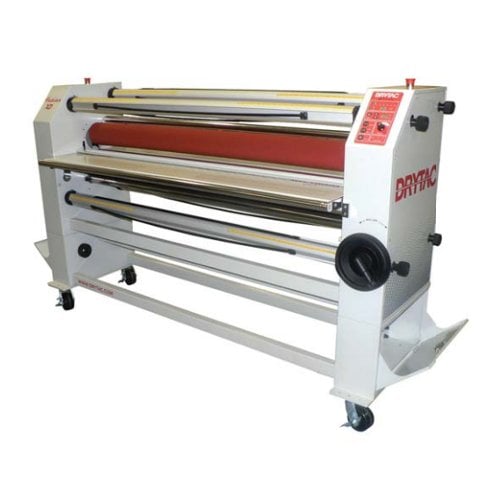

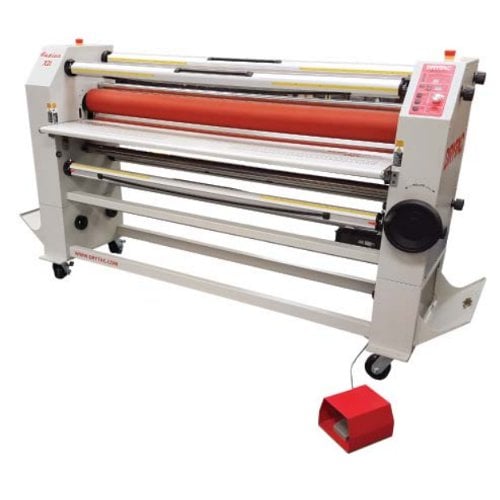

The NEW JetMounter JM63 Fuzion XD 63" Wide Format Roll Laminator is an upgraded version of JM63 Fuzion (JM63FUZION). This wide format laminator is ideal for laminating vehicle wraps, creating window decals and mounting graphics to substrates. The JetMounter JM63 Fuzion XD has a laminating speed of up to 20 ft (6m) per minute and has an effective laminating width of up to 63 inch. Plus, it has a top roller with heat assist to help prevent silvering and large 4.7 inch diameter non-stick silicone rollers. If you want to have a roll-to-roll laminating capabilities in your shop at a lower price tag, then the JetMounter JM63 Fuzion XD 63" Wide Format Roll Laminator is the perfect laminating machine for you.
Product Details
- Top roller with heat assist to 110°F (43°C) to help prevent silvering.
- Effective laminating width of 63" (1600mm).
- Large 4.7" (119mm) diameter non-stick silicone rollers.
- Laminating speed up to 20 ft (6m) per minute.
- Maximum 1" (25mm) nip opening.
- Nip pressure indicator.
- Fold down front table.
- Heavy-duty metal construction with lockable casters.
- "Hold fl at" paper in-feed guide.
- Emergency stops and safety photo sensors for protection.
- Top and bottom auto-grip supply shafts with brake tension control on operator side; 10" (254mm) max roll diameter.
- Top auto-grip take-up shafts with adjustable clutch speed including rear take-up for roll-to-roll.
- Single mechanical height/pressure adjustment (no compressor needed).
- Built-in fl ip open storage compartments.
- Interchangeable 110V or 220V electrical confi guration.
Specifications
- Max Laminating Width: 63" (1600 mm)
- Max Nip Opening: 1" (25 mm)
- Uncrated Weight: 752 lbs (341 kg)
- Width: 81.5" (2070 mm)
- Depth: 25" (640 mm)
- Height (when assembled): 50.5" (1282 mm)
- Roller Diameter: 4.7" (119 mm)
- Speed Range: 1-20 fpm (0.5-6 mpm)
- Power (U.S. and Canada): 110V or 220V, 50/60Hz, 13A Single Phase
- Power Consumption: 725 or 2600 Watts
- Warranty: 1-Year Manufacturer's Warranty
