Product Description

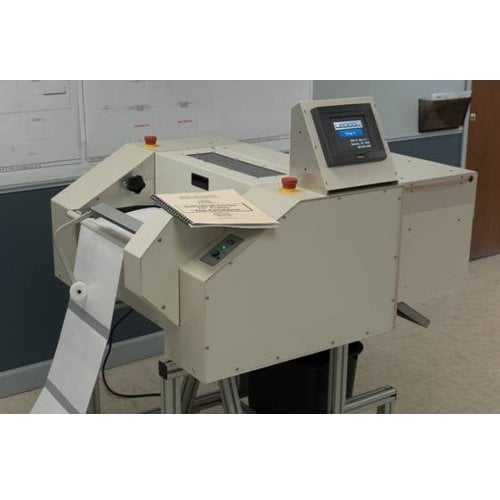

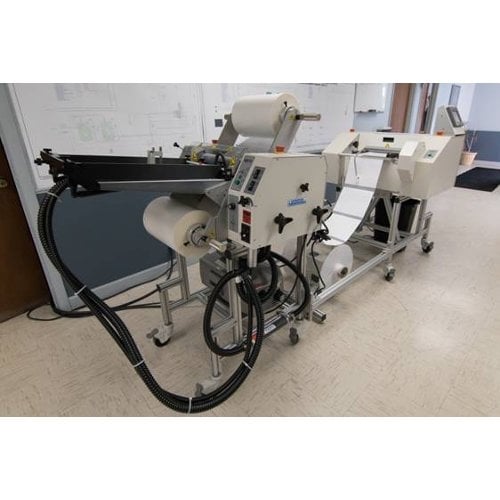

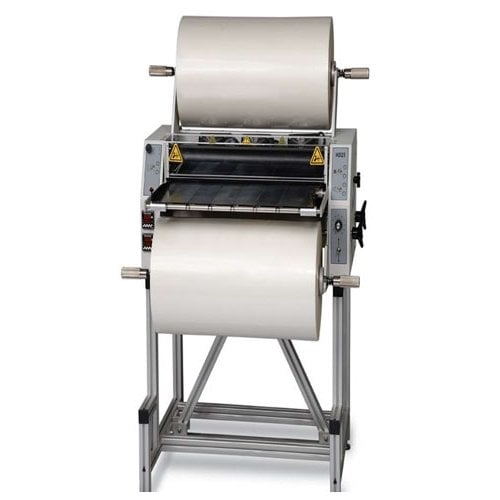

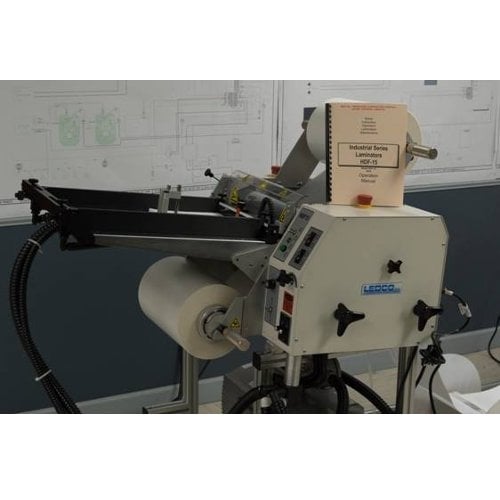

The Ledco Heavy Duty 15" Roll Laminator with Automatic Feeder is primed and ready to meet your high production needs and be an every day contributor on the production floor. Add the 15" Finish Line Cutter (optional) and you have the perfect finishing solution for all your projects. The HD-15 System is backed with Ledco's unmatched 2-year warranty and proven dependability.
Product Details
- HD 15 Features:
- Independent, intelligent heat controls display both set and actual temperature. Control microprocessor learns to anticipate the heat demand of each job and maintains within a few degrees of the set temperature.
- Driven, interchangeable silicone laminating and pull rollers provide superior release, high laminating quality, and easy cleaning while avoiding the wrinkling that can occur with only one driven roller.
- Built in retractable slitters save labor time by automatically trimming side scrap during the laminating process. Slitter head can be adjusted precisely and independently.
- Large film roll capacity.
- Dual tension knobs for each supply roll mandrel make it easy to produce wrinkle- free lamination.
- Forced air-cooling ensures quality results when running thicker films.
- Easy access controls including removable heat shoes and variable speed controls ensure easy operation and make the minimal maintenance and cleaning a breeze.
- Integrated precision feed tray safety guard ensures the guard will be in place when laminating to protect operators.
- Variable speed control adjusts for various film and substrate thicknesses.
- Includes hand feed tray for smaller jobs.
- Includes stand and casters.
- Fast, consistent feeding up to 33 fpm.
- Made in USA; two-year manufacturer’s parts and labor warranty.
- Finish Line Cutter Features:
- Variable speed cutting up to 175 fpm.

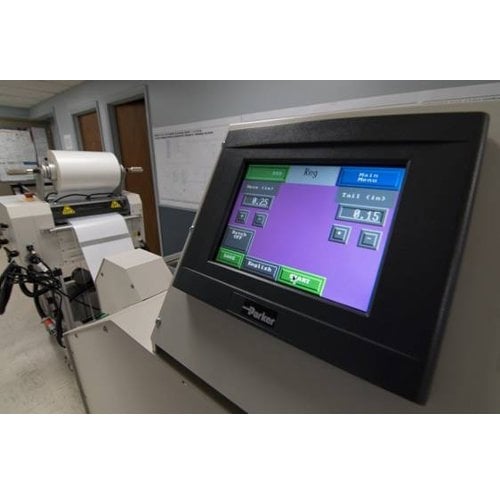

- Easy to use touch screen controls.
- Integrated to work seamlessly with the HD 15.
- Piling tray for finished work.
- Includes stand and casters.
- Made in USA; two-year manufacturer’s parts and labor warranty.
Specifications
- HD 15 Specifications:
- Maximum Laminating Width: 15"
- Speed: 0 - 33 feet per minute
- Laminating Roller Diameter: 1.5"
- Supply Roll Core Size: 3" standard (1" optional)
- Recommended Film: Up to 10mil
- Maximum Laminating Thickness: 1/2"
- Maximum Film Roll Diameter: 13"
- Dimensions: 48" L x 31" W x 52" H
- Shipping Dimensions: 56" L x 43" W x 62" H
- Weight / Shipping Weight: 330 lbs. / 580 lbs. (Laminator with Compressor)
- Electrical (Single Phase): 205-240 VAC, 16 amps, 3000W
- Electrical Connector: NEMA L6-20P
- Motor: 1/4 HP DC
- Feeder Pump / Auxiliary Outlet:
- Electrical (Single-Phase): 105-125 VAC, 14 amps, 1100W
- Electrical Connecter: NEMA 5-15P
- Electrical Connecter: NEMA 5-15R
- Finish Line Cutter Specifications:
- Max Material Width: 15"
- Speed: 0-175* fpm Actual Output Varies Depending On Number of Cuts
- Feeder Roller Diameter: 1.65625"
- Recommended Film: Up to 10mil (.010")
- Max Material Thickness: Up to 50mil (.050")
- Dimensions: 50" L x 42" W x 53" H
- Shipping Dimensions: 56" L x 46" W x 62" H
- Weight / Shipping Weight: 150 lbs. / 600 lbs.
- Electrical (Single Phase): 100-120 VAC, 15 amps, 500W
- Electrical Connector: NEMA 5-15P
