Product Description

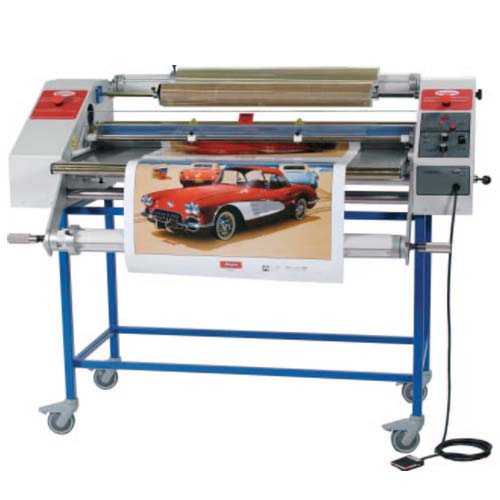

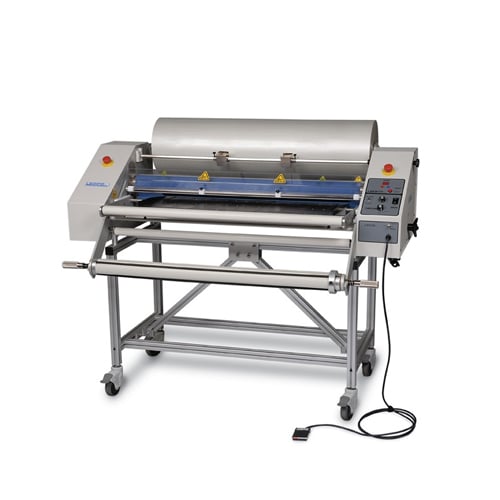

The Ledco Signmaster 44" hot roll laminator provides graphic print shops, copy shops, sign shops, manufacturers and other businesses with an excellent 44" wide roll laminator suitable for all of your heavy lamination needs. The Signmaster 44" supports transfer tape application, vinyl application, mounting, over laminating using thermal mounting pouches, one sided lamination with pressure sensitive films, and more, making the Signmaster 44" roll laminator and mounter a diverse and reliable machine for all of your laminating needs. If your business is looking for a high quality, reliable, versitile, and highly capable laminate and mounting machine, look no further than the Ledco Signmaster 44" Hot Roll Laminator today. Check out all of the extra features below on your way to the check out. This unit is also available in 220V, if interested in this option please contact our customer service department.
Product Details
- A release liner take-up with an adjustable clutch, takes up the release liner found on most pressure-sensitive films.
- Roller bearings, alloy construction and high quality motors insure a long and trouble-free life for these machines.
- A variable speed motor control allows operators to apply different materials to different substrates. A preset 3-function switch allows operation in variable speed mode, a preset film speed mode and a preset pouch speed mode.
- The feed tray is non-ferrous, so magnetic materials may be applied.
- The supply roll tension knobs are important, because without some supply roll tension, most films and tapes will wrinkle during application.
- A reverse drive switch makes it simple to back material out of the laminating rollers or correct material wrap-around.
- A foot pedal is a standard feature that frees hands to align and feed work.
- A stand is included with the machine.
- A safety shield with electronic interlock prevents operation of the machine if the guard and the feed tray are not in place, protecting operators and other employees.
- Two safety stop buttons on both sides of the machine will automatically stop the machine when the operator pushes them in.
- Correct and even lamination pressure is ensured by rubber rolls that are spring-loaded and preset. The pressure is easy to adjust if required when performing routine maintenance.
- Manufactured in the USA means quality, better service and faster parts availability.
- Ledco's tradition of 30 plus years of service to industry.
- All electrical components conform to NRTL standards.
- 2 year factory warranty.
Specifications
- Lamination Width: 44"
- Variable Speed - FPM: 1-25
- Laminating Roller Diameter: 3"
- Supply Roll Core Size: 3"
- Recommend Film Thickness: 1 mil and up
- Max. Laminating Thickness: 1/2"
- Dimensions: 64"L x 34"W x 51"H
- Motor: 1/4 HP DC
- Electrical:110 V, 1500 watts, 15 amps
- Warranty: 2 year Factory Warranty
