Product Description

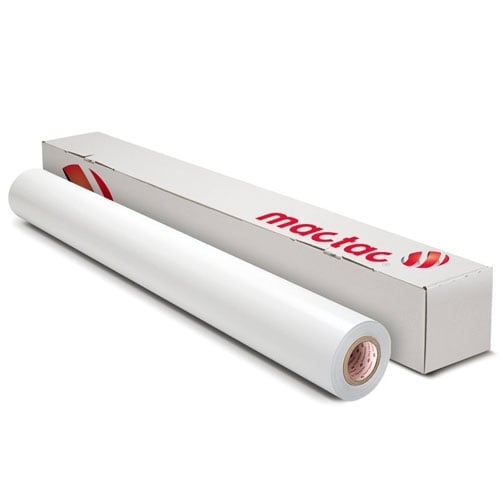

This Mactac IMAGin B-free GRUV GVC929BFD 60" x 150' Gloss White Full Wrap Print Media is a 2.0 mil gloss white print media with permanent bubble free air egress adhesive with an outdoor durability of 9 years. Great for easy-to-apply vehicles wraps (full and partial) and perfect for long term general purpose applications too. Use of the correct overlaminate, RAYZor LF3648G gloss, or LF3638 matte will extend the life of the graphic.
Product Details
- Features and Benefits:
- Nine year outdoor durability.
- Air-egress allows for bubble-free applications.
- Repositionable permanent, opaque, solvent-based acrylic adhesive.
- Superior print quality for vibrant images.
- Screen printable with lay-flat liner.
- Typical Uses:
- Vehicle wraps.
- Long-term indoor and outdoor signage.
- Vehicle wraps.
- Use with:
- PERMACOLOR RAYZor.
- PERMACOLOR Enhancers.
- Physical Properties
Property Typical Values Test Method Peel Adhesion
lb./in. (N/25mm)
180° on glass
- 15 min.
- 24 hr.
1.8 (7.8)
2.3 (10.1)PSTC - 1 Quick Tack, lb./in² (N/25mm)
Stainless Steel
2.0 (8.75)FTM - 9 Dimensional Stability in
Percent
48 hours @ 158°F
max 0.1FTM - 14
10" x 10" Sample
Bonded to aluminumTemperature Ranges
Minimum Application:
End Use:
55°F (+12°C)
-50° to 225°F (-46° to 107°C)Flammability TBD Water Immersion
100 hours immersed @ RT
no change - Removability
GVC929BFD, when laminated, is cleanly removable for up to five years after application with high heat and/or chemicals. “Clean Removability” means that when removing the decal, the pressure sensitive film will leave less than 20% of the adhesive on the substrate.
Some substrates are affected by the application of the GVC929BFD, such as acrylic glass, polycarbonate, polystyrene, nitro-cellulose paints and plasticized PVC’s. Besides damaging the substrate, subsequent removal could be difficult. - Approved Printing Materials:
Screen Printing: HP Indigo No
UV Cured Yes Off-set No
Solvent No UV Off-set No
Digital: UV Inkjet Yes Thermal Transfer Yes
Eco-solvent Yes Flexographic No
True solvent Yes Laser No
Latex Yes Jetrion No
Note: UV cured inks typically crack when stretched, and is not appropriate for conformable applications.
To achieve the best possible print quality, please make sure that the correct ICC profiles or printer settings are used. Profiles can be obtained from our Distributors or can be downloaded from www.mactac.com/graphics . Printer and heater settings and ICC profiles can also be downloaded from some O.E.M. or software manufacturer’s websites. - Durability
The outdoor durability of the unprinted film is 9 years.
Vertical application (years) Horizontal application (years) Zone 1 Zone 2 Zone 3 Zone 1 Zone 2 Zone 3 GVC929 with RAYZor 7 5 3 4.8 3.6 2 GVC929 with Nazdar 3529 UV 6 3 2 3 1 1 GVC929 with Nazdar 3539 UV 8 6 4 4 2 1
Zone 1: North America, North, West, Central & Eastern Europe
(excluding desert areas of the USA which are in zone 3)
Zone 2: Central & South America, South Europe, Asia Pacific
(excluding Australia & New Zealand)
Zone 3: Greater Middle East (e.g. Egypt, Israel, Iran, Morocco, Western Sahara, Algeria, Tunisia,
Libya, and Mauritania), Africa, Australia, New Zealand, USA (Arizona, S. California, S. Florida,
Nevada, New Mexico, Texas, S. Utah), and Mexico.
- Marine Graphics
Marine applications have different requirements and therefore different expectations. Graphics manufactured using Mactac’s B-Free vinyl products are warranted to maintain acceptable appearance for one year from date of application. Marine graphics applied under the water line and are not edge sealed, are not warranted.
Mactac requires the registration of a completed and signed Inspection Report for each vehicle wrap in the unlikely event of a future claim. This report identifies any potential problem areas and clearly defines the obligations between the applicator and the vehicle owner. A completed copy of the inspection report and the appropriate vehicle template must be on file at Mactac prior to application. The inspection report is attached at the end of the Application Guide TA2501 and the B-Free Vehicle Warranty MAC2588 which are available on the Mactac website at www.mactac.com/graphics . Registration acknowledges that your company has received the Application Guide and a copy of this warranty and agrees to all the requirements and limitations outlined in these documents. - Shelf Life
2 years from Date of Manufacture when stored at 60/77°F (15/25°C) and 50% relative humidity in the original package. - Limitations
1) The user is responsible for determining the product’s suitability, including adhesion and if needed, removal characteristics when used in applications other than listed specifically in this Performance Guide.
2) If there are any questions about applications, please contact your Mactac sales representative to discuss your requirements for recommendations.
3) If this is a printed Performance Guide it is an uncontrolled document. Please check the Mactac website for the latest, most up-to-date version.
- The ICC profiles are provided solely as a customer resource. Print environments, the individual nature of printing systems, inks and software can significantly affect output. It is the customer’s responsibility to determine the suitability of any profile for use in their specific print environment.
- Recommendations
Always test your combination of B-free Gruv products, inks and laminating films prior to commercial use.
- 1) Printing Conditions: Print in conditioned pressroom at ±73°F (23°C) and 50% RH. The maximum allowable ink saturation is 270%
- 2) Printing with UV inks, inkjet and screen, will significantly reduce the stretch ability of this film and may result in cracking or lifting out of the deeper wall recesses and is not a warranty failure.
- 3) Drying Step: It is critical the GVC929BFD print is properly dried prior to laminating or application. While this is important in all solvent inkjet prints including with GVC929BFD. We strongly recommend leaving the print open to the air (not rolled up in a tube) for a minimum of 24 hours prior to lamination or application. Residual solvents in the vinyl and adhesive will negatively affect the bubble free properties of the adhesive and can result in a significant build or loss in adhesion resulting in potential substrate or graphic failure and/or more residual adhesive being left behind upon removal. Additional hot air drying or IR drying will speed up the drying process and shorten the overall drying time.
- 4) Laminating Conditions: If the printed graphic is likely to be exposed to corrosive liquids, smoke, fumes, and highly polluted areas or there is a likelihood of scratching, it is highly recommended to laminate with Permacolor RAYZor or HORIZon series conformable overlaminating films.
- 5) Clear Coat Options: Nazdar 3529 clear coat is the only clear coat approved as an alternate to PERMACOLOR for long term image protection.
- 6) Not recommended surfaces include, but not limited to: rubber and plastic, aged paint (chalking) and metals (corrosion or oxidation), improperly cured paint, surfaces with poor paint-to-surface adhesion, over existing graphics that must remain upon removal, oily surfaces, unpainted wood, etc.
- 7) Transportation Conditions: To allow for easy transportation, B-free GRUV series can be rolled up, with the image out, with a minimum diameter of 6 inches (15cm). When the image is not protected by an overlaminate, make sure the print is completely dry and protected in a plastic bag. During transportation or storage, avoid exposing them to extreme temperature and humidity changes.
-
- Values given are typical and are not necessarily for use in specification.
Specifications
- Adhesive Type: Permanent Acrylic
- Color: White
- Films: Cast Vinyl (PVC)
- Finish: Gloss
- Length: 150'
- Width: 60"
- Liner Category: 98# White Polycoated Paper
- Outdoor Durability: 9 Years
- Precise Program: N
- Print Method: Latex, UV Inkjet
- Thickness: 2.0 mil
