Product Description

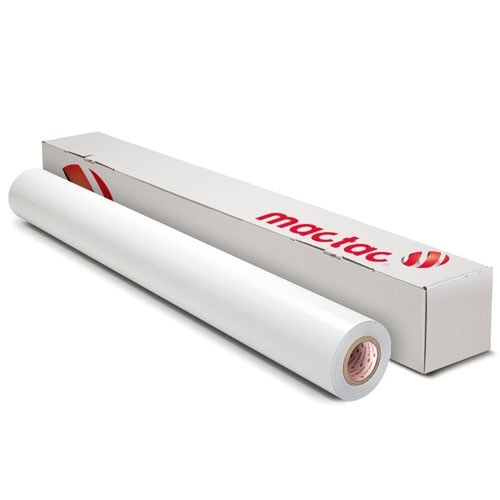

This Mactac IMAGin JT5728P 54" x 164' Matte White Translucent Backlit Print Media is a 3.1-mil translucent, matte white, soft, polymeric plasticized, calendared PVC film designed for solvent-based ink jet printing. The product is coated on one side with a permanent, clear, acrylic pressure sensitive adhesive and is supplied with an 86# Kraft liner. The JT5728P is designed for digital printing in backlit signage applications such as illuminated signs and light boxes.
Product Details
- Features and Benefits:
- Seven year outdoor durability.
- Permanent, solvent-based acrylic adhesive.
- Matte white finish provides excellent ink anchorage.
- Typical Uses:
- Illuminated signs.
- Light boxes.
- Physical Properties
Property Typical Values Test Method Peel Adhesion
lb./in. (N/25mm)
180° on glass
- 24 hr.
4.1 - 5.9 (18 - 26)FTM - 1 Quick Tack, lb./in² (N/25mm)
Glass
4.3 - 6.2 (19 - 27)FTM - 9 Dimensional Stability, (%)
48 hours @ 158°F
max 0.2FTM - 14
10" x 10" Sample
Bonded to aluminumTemperature Ranges
Minimum Application:
End Use:
40°F (+5°C)
-40°F to 194°F (-40°C to 90°C)Light Transmission (%)
Transmission
Reflection
Absorption
27
66
7EN410
Varian Carry 5000Energy properties (%)
Transmission
Reflection
Absorption
32
55
13EN410 - Durability
The outdoor durability of the unprinted film is 5 to 7 years. Overlamination of the inkjet-printed material with IMAGin overlaminates delays eventual color fading that may occur over time. This color fading is mainly dependent upon the inks quality (see technical data sheets given by the ink manufacturers) and the pressure sensitive media being used. - Approved Printing Processes:
- Shelf Life
2 years from D.O.M. when stored at 60/77°F (15/25°C) and 50% relative humidity in the original package. - Glass Breakage
MACtac accepts no liability for glass breakage due to temperature differences across the glass which can be caused by sunlight on dark areas of the graphic. Size, thickness, quality of cut, edge treatment, tinting and frame design all effect temperature stress. - Limitations
1) The user is responsible for determining the product’s suitability, including adhesion and if needed, removal characteristics when used in applications other than listed specifically in this Performance Guide.
2) If there are any questions about applications, please contact your Mactac sales representative to discuss your requirements for recommendations.
3) If this is a printed Performance Guide it is an uncontrolled document. Please check the Mactac website for the latest, most up-to-date version.
- Recommendations
Always test your combination of JT5000 products, inks and laminating films prior to commercial use.
- 1) Printing Conditions: Print in conditioned pressroom at ±73°F (23°C) and 50% RH. The maximum allowable ink saturation is 270%
- 2) Drying Requirements: Solvent, Eco-solvent and Mild-solvent inkjet prints require 24 - 48 hr. drying time - open to the air. Inks do not dry when printed media is rolled up. The prints must be dry prior to lamination or application.
- 3) Transportation Conditions: To allow for easy transportation, IMAGin JT5000 series can be rolled up, with the image out, with a minimum diameter of 6 inches (15cm). When the image is not protected by an overlaminate, make sure the print is completely dry and protected in a plastic bag. During transportation or storage, avoid exposing them to extreme temperature and humidity changes.
-
- Values given are typical and are not necessarily for use in specification.
Approved Printing Processes: HP Indigo No
UV Cured No Off-set No
Solvent No UV Off-set No
Digital: UV Inkjet Yes Thermal Transfer No
Eco-solvent Yes Flexographic No
True solvent Yes Laser No
Latex Yes Jetrion Yes
To achieve the best possible print quality, please make sure that the correct ICC profiles or printer settings are used. Profiles can be obtained from our Distributors or can be downloaded from www.mactac.com . Printer and heater settings and ICC profiles can also be downloaded from some O.E.M. or software manufacturer’s websites.
The ICC profiles are provided solely as a customer resource. Print environments, the individual nature of printing systems, inks and software can significantly affect output. It is the customer’s responsibility to determine the suitability of any profile for use in their specific print environment.
Specifications
- Adhesive Type: Permanent Acrylic
- Color: White
- Films: Vinyl (PVC)
- Finish: Matte
- Length: 164'
- Width: 54"
- Liner Category: 86# White Kraft
- Outdoor Durability: 7 Years
- Precise Program: N
- Print Method: Latex, UV Inkjet
- Thickness: 3.1 mil
