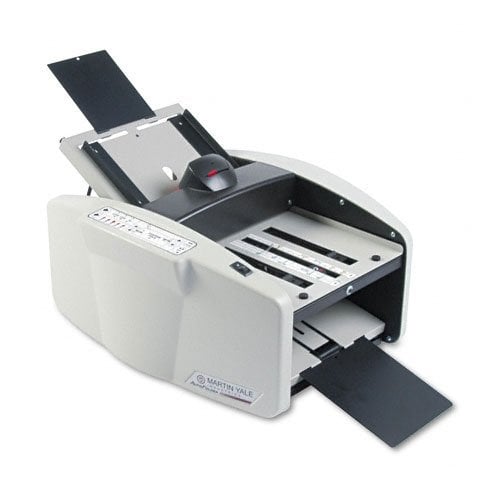

Product Description
The Martin Yale 1701 is perfect for churches, volunteer organizations, schools and businesses. Ready to fold straight out of the box. Handles sheet sizes from 3.5 x 5 to 8 and 3/4 x 14; 16 pound bond to 70 pound index. No paper fanning needed. Feed table holds up to 150 sheets. Operates at a speed of up to 9,000 sheets per hour. High speed machine automatically feeds and folds documents up to 8.5 x 14. Electronic controls automatically sets fold plates for letter, legal and A4 paper sizes with a total of 17 pre-set fold combinations with options for custom folds. Creates 6 fold types: letter, half, Z-fold, double parallel, right angle and baronial. Auto jam detection and auto shut-off. Stapled or unstapled set of up to 5 sheets can be folded through the by-pass tray.
Product Details
- Automatically feeds and folds up to 8 1/2" x 11".
- Easy to use electronic controls.
- 17 pre-set folds.
- Custom fold capable.
- Precision paper skew adjustable.
- No fanning needed, retarder is self adjusting.
- Stapled or unstapled sets up to 5 sheets can be folded by hand feeding documents.
- Conveyor exit table.
- Auto jam detect and auto shut-off.
- Removable roller cartridge.
Specifications
- Folding Speed: Up to 9,000 pieces/hr
- Fold Types: Letter fold, Z fold, Double Parallel fold, Half fold, Baronial (can do custom folds)
- Input Capacity: Up to approx. 150 Sheets
- Accepted Paper Weights: 16# to 28#
- Accepted Paper Sizes: From 3 1/2" x 5" (66mm x 86mm) to 8 1/2" x 11" (216 mm x 279 mm)
- Accepted Paper Types: Non-Glossy Finish
- Setup: Automatic
- Paper Feed: Automatic
- Volume Rating: High
- Dimensions (L,W,H): 20" x 15" x 17" (508mm x 381mm x 432mm)
- Shipping Weight: 47 lbs. (21.3 kg )
- Power Requirements: 115V 60Hz
- Warranty: 90-day warranty, does not include consumable parts, labor, or shipping.
Staff Review
Martin Yale 1701 Autofolder Paper Folding Machine Review
Martin Yale is known for delivering high quality office products and the 1701 Paper Folder is no exception. Designed to handle frequent medium to larger folding jobs, the 1701 is perfect for large mail rooms, churches, schools, and offices. Easy operation at high speeds provides an efficient folder that will save you money. Let’s take a closer look at the pros and cons of this machine.
Pros:
- This machine is easy to use right out of the box. No setup is necessary, other than plugging it in. The paper tray automatically feeds and folds a stack of documents as large as legal size paper. Once the feed tray is empty, an auto shut-off sensor cuts power to the motor. Preset options for legal, letter, and A4 size paper make switching a breeze. The retarder self-adjusts for various paper thicknesses and a precision paper skew adjustment mechanism helps to ensure all your documents come out precisely folded, not crooked. In the rare case of a paper jam, the automatic jam detector alerts the user right away. Neatly creased items emerge from the folder via conveyor belt exit.
- Six standard folds are created by this machine: “C” fold, single fold, “Z” fold, double parallel, baronial, and French or right angle fold. Seventeen preset fold and paper size combinations are pre-programmed into this device with additional options for custom folds.
- The hopper can hold up to 150 sheets at once. But with speeds up to 9000 sheets per hour, the tray will need to be refilled quickly. An additional manual bypass offers the insertion of up to five loose or stapled sheets for combined folding.
- This folder can handle items as small as 3-1/2″ x 5″ and as large as 8-3/4″ x 14″. Weights accepted range from 16lb bond to 70lb index.
- Martin Yale offers a one year warranty on this product. Be aware it doesn’t include consumable parts, labor, or shipping.
Cons:
- As with many folders, this one is not rated to handle glossy paper. Many offices don’t use coated materials for large folding jobs and won’t be affected by this downside. However, if your business prefers glossy or coated paper for mass mailings, we suggest you look into an air-feed machine, such as the 959AF. That model, though much more expensive, is rated to handle specialty paper types.
- This machine only folds as large as legal size paper. Often this is all the larger offices need to fold and this wouldn’t cause a problem for them. But if your company needs to be able to fold bigger sheets, an upgrade to the next model up, the 1217A, will satisfy this.
Overall, the Martin Yale 1701 is well-able to accommodate the folding needs of any medium to large office. The plethora of automatic features ensure simple, uncomplicated operation. Electronically adjusted fold plates add to the high convenience of this device. We think this paper folder is an excellent addition to any office.
