Product Description

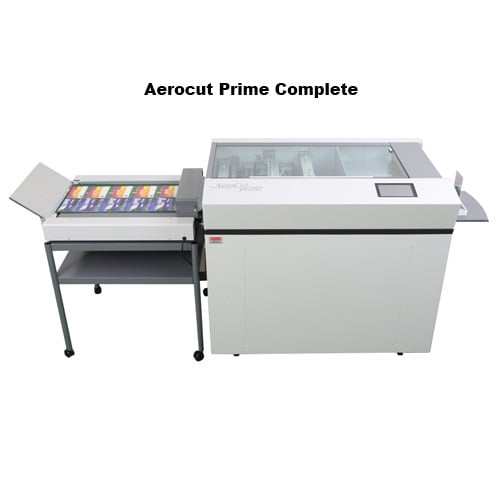

The Aerocut Prime is the perfect solution for finishing short-run digitally printed applications such as business cards, post cards, invitations, greeting cards, leaflets, tickets and more. The Aerocut Prime has the capability to perforate stocks both across and along feeding direction by adding on an optional perforating unit. Flex mode allows operators to cut multiple size cards from a page and add the desired number of creases on these; It enables designers and printers to create new aspects of applications. Channel creasing is equipped on every unit, allowing the machine to offer world-class creases on digitally printed stocks. Creasing pressure can be adjusted in 5 levels instantly by shifting the lever. The Aerocut Prime features 2 single blade slitters to trim top and bottom margins, and 2 double blade slitters for center gutters and precise accuracy. The durable blades cut stocks up to 400 gsm. The air-suction top feeding system easily feeds coated, digital, gloss and other stocks precisely without damage. Safety access cover—machine will not operate with cover in open position. This machine includes the Lytrod VisionDirect software to simplify the task of formatting, imposing, and adding personalized information to documents for fast and efficient cutting. The Aerocut Prime saves time and costs for any print shop, in-house printer, commercial printer, etc. The Prime Complete comes with a conveyor / stacker. It replaces the rear table for higher production output. Includes the new Lytrod Intellicut software to easily impose artwork + address data to seamlessly create PDF layouts with job barcodes and cut marks for the Prime.
Product Details
- Basic Functions:
- Creasing Unit. Channel creasing is equipped on the AeroCut Prime, allowing the machine to offer world-class creases on digitally printed stocks. Creasing pressure can be adjusted in 5 levels instantly by shifting the lever.
- Slitting / Cutting Units. The AeroCut Prime features 2 single blade slitters to trim top & bottom margins of sheets, and 2 double blade slitters, bleed centre gutters and deflect wastes into a waste bin. The durable guillotine cuts stocks up to 400gsm in weight. All the slitter and guillotine blades are self-sharpening.
- Feeding Unit. The AeroCut Prime feeds printed stocks one-by-one from the top of the ream on the feed tray. The air-suction top feed system feeds even coated stock precisely without damage. There are several features to ensure feeding several weights and qualities of stocks every time.
- Features:

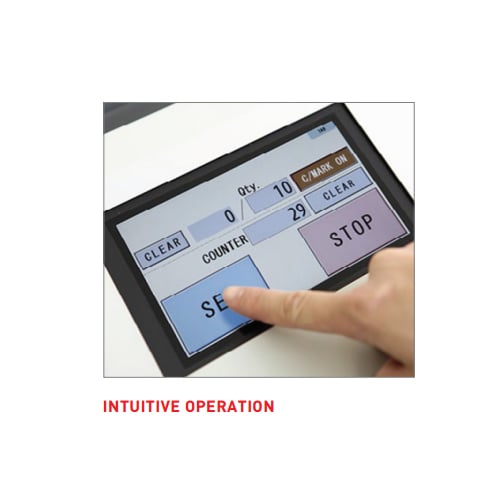

- Intuitive Operation. The 7" touch screen allows operators to set job programs and run the machine intuitively and instantly.

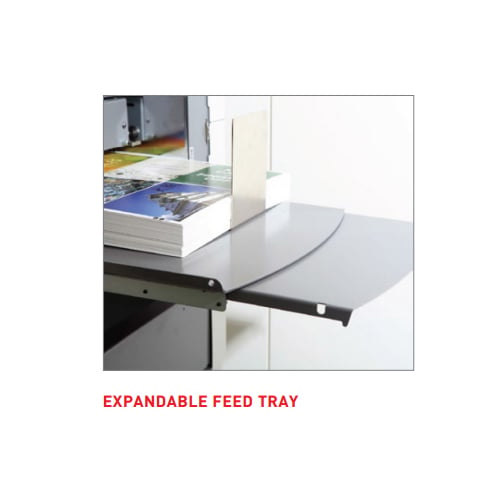

- Expandable Feed Tray. Expandable tray is capable of feeding stocks up to 26.75" in length. Most stocks for today’s digital print can be finished on the Prime. The stacking capacity is 4".

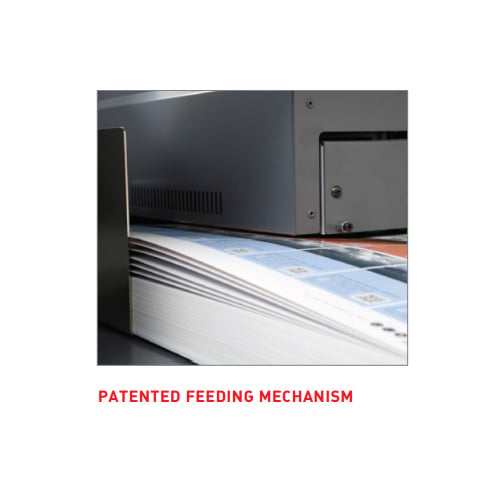

- Patented Feeding Mechanism. The patented "Tri-Suction Feeding Mechanism" reduces risks of double feeds and mis-feeds drastically, therefore it prevents paper jams and enhances productivity.

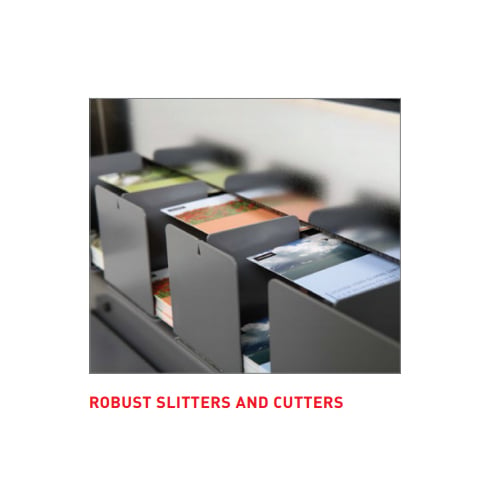

- Robust Slitters and Cutters. The self-sharpening slitter and blade unit allows the machine to cut up to 400 gsm with no wear.

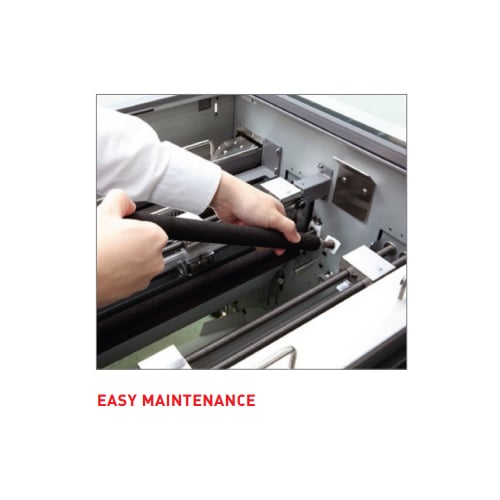

- Easy Maintenance. The Prime now has detachable rollers, not only making cleaning easy, but it gives better access to components in case of a paper jam.
- Has the capability to perforate stocks both across and along feeding direction.
- Flex mode allows operators to cut multiple size cards from a page and add the desired number of creases on these.
- All-metal construction.
- Mounted on lockable, heavy-duty casters.
- Safety access cover — machine will not operate with cover in open position.
- Includes the Lytrod VisionDirect software to simplify the task of formatting, imposing, and adding personalized information to documents for fast and efficient cutting.
- Includes cross perforator that enables the machine to perforate sheets across feeding direction. Both strike and partial perforation.
- Includes jump perforator that enables the machine to perforate sheets along feeding direction. Both full length and jump perforation.
- Includes Bar Code Reader that allows the machine to read barcodes for job changing.

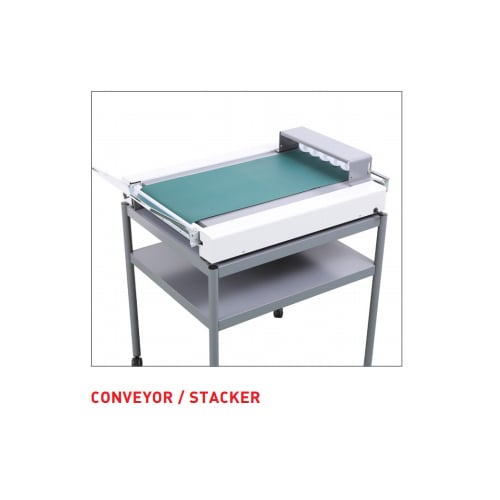

- Includes Conveyor Stacker Unit. Finished products will be neatly delivered.
Specifications
- Speed: 24 Sheets Per Minute
- Sheet Capacity: 4"
- Paper Weight: 120 - 400 gsm
- Paper Size: 8.27" x 8.27" to 14.5" x 26.75"
- Power Supply: 100 - 120 V, 50/60 Hz
- Actual Machine Weight : 597
- Shipping Length : 59
- Shipping Width: 39
- Shipping Height: 66
- Shipping (Web) Weight: 612 lbs
