Product Description

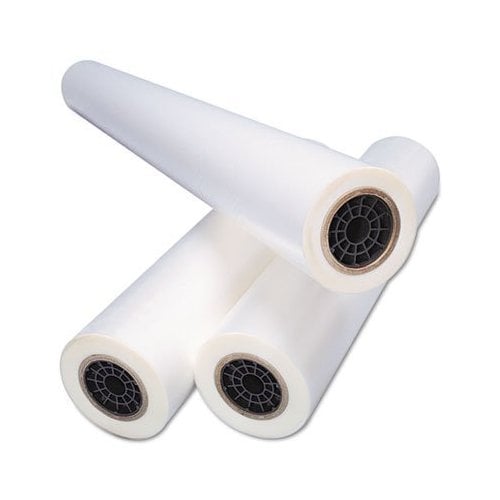

MediaShield EmeryTex UV 5mil 51" x 164' is a scuff resistant PVC overlaminating film with a pebble-textured matte finish (a similar finish to velvet matte polycarbonate). This film is coated with a solvent acrylic adhesive and is protected by a single moisture-stable paper release liner. MediaShield Emerytex UV is an excellent alternative to Lexan and is the optimum film for laminating prints that will be placed in high traffic, indoor display areas such as POP display, trade show and floor graphics. It is also suitable for laminating mousepads, counter graphics and other similar applications. Get 51" x 164' of 5mil MediaShield Heatset Emerytex UV film with every order. Product number ET51164.
Product Details
- Film Width: 51"
- Film Length: 164'
- Film Thickness: 5.0mil
- Core Size: 3"
- Finish: Pebble-Textured Matte
- Base Film: 4.0mil (75 micron) PVC (vinyl)
- Adhesive: 1.0 mil (25 micron) solvent acrylic
- Initial Tack: Low
- Application Speed: 1' - 6' per minute
- Application Temperature: 185 F - 210 F
- Release Liner: Moisture Stable Paper (70gsm)
- Coefficient of Friction (ASTM Test Method d2047-99: Dry Condition 0.83 / Wet Condition 0.92
Specifications
- A hybrid between thermal and pressure sensitive films.
- Co-extruded for a carefully balanced ratio of polyester film to adhesive.
- Bond well to inkjet output with high ink coverage - even on photo gloss paper and digital photo laser output (Lambda / Lightjet).
- Image can be trimmed flush, or even die-cut without fear of delamination.
- Due to its quick setup / curing time, MediaShield laminated graphics can be handled or rolled immediately after processing.
- Protected by a release liner because the adhesive on these films is slightly tacky when cool.
Tips
Tips For Applying MediaShield UV Heatset Films:
- MediaShield UV Heatset films are an excellent choice for laminating multiple images which have been mounted onto a single board or substrate because they minimize air entrapment around the edges of each image.
- To keep the film from stretching as it becomes soft and pliable when heated, apply only minimal brake tension to the unwind supply shaft and the release liner take-up.
- Mediashield and thermal overlaminating films can be combined when encapsulating a graphic. For example: MediaShield Emerytex on the front and MHL White Backing on the back of the image is an ideal combination for trade show applications.
- Adjust the take up shaft so that the release liner is removed just prior to entering the nip rollers. By reducing the adhesive's exposure to the air, there is less chance of picking up dust particles.
