Product Description

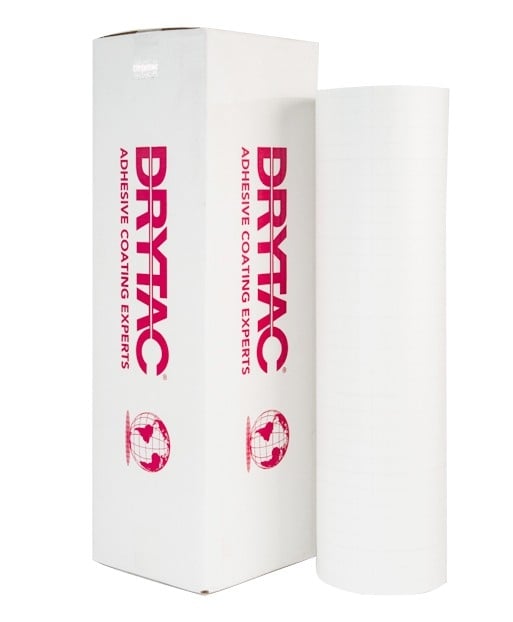

MediaShield Matt UV 4mil 25.5" x 328' overlaminating film offers a non glare, matte finish without sacrificing color definition. It is perhaps the highest quality matte laminating film on the market today. MediaShield Matt UV is a PVC (vinyl) overlaminating film coated with a solvent acrylic adhesive. MediaShield Matt UV is recommended for situations where a non glare finish is required or specific lighting conditions cannot be controlled. It is ideal for images such as trade show and POP displays that will be viewed under direct lighting from many different angles. Get 25.5" x 328' of 4mil MediaShield Heatset Matt UV film with every order. Product number MT25328.
Product Details
- A hybrid between thermal and pressure sensitive films.
- Co-extruded for a carefully balanced ratio of polyester film to adhesive.
- Bond well to inkjet output with high ink coverage - even on photo gloss paper and digital photo laser output (Lambda / Lightjet).
- Image can be trimmed flush, or even die-cut without fear of delamination.
- Due to its quick setup / curing time, MediaShield laminated graphics can be handled or rolled immediately after processing.
- Protected by a release liner because the adhesive on these films is slightly tacky when cool.
Specifications
- Film Width: 25.5"
- Film Length: 328'
- Film Thickness: 4.0mil
- Core Size: 3"
- Finish: Dead Matte
- Base Film: 3.0mil (75 micron) PVC (vinyl)
- Adhesive: 1.0mil (25 micron) solvent acrylic
- Initial Tack: Low
- Application Speed: 1' - 6' per minute
- Application Temperature: 185 F - 210 F
- Release Liner: Moisture Stable Paper (70gsm)
- Compatible Equipment: 3" Core Thermal Roll Laminators
Tips and Technical Data
Tips For Applying MediaShield UV Heatset Films:
- MediaShield UV Heatset films are an excellent choice for laminating multiple images which have been mounted onto a single board or substrate because they minimize air entrapment around the edges of each image.
- To keep the film from stretching as it becomes soft and pliable when heated, apply only minimal brake tension to the unwind supply shaft and the release liner take-up.
- Mediashield and thermal overlaminating films can be combined when encapsulating a graphic. For example: MediaShield Emerytex on the front and MHL White Backing on the back of the image is an ideal combination for trade show applications.
- Adjust the take up shaft so that the release liner is removed just prior to entering the nip rollers. By reducing the adhesive's exposure to the air, there is less chance of picking up dust particles.
Technical Data
MediaShield Matte is a 3 mil (75µ) plasticized, UV stabilized, clear PVC laminating film with a matte finish, coated on one side with a heat activated solvent acrylic adhesive that is protected by a moisture stable bleached Kraft gridded release paper coated on one side with siliconized PE.
Typical Applications
- Recommended for situations where a non-glare finish is required or specifi c lighting conditions cannot be controlled.
- Ideal for images used for exhibitions and POP displays that will be viewed under direct lighting from many different angles.
- Recommended for photographs and plaques.
Product Structure
| Film | Matte Monomeric Soft Calendared PVC |
|---|---|
| Adhesive | Solvent Acrylic (Heat Activated) |
| Release Liner | 1 Side PE Coated Bleached Kraft Grid Paper (Moisture Stable) |
Physical Characteristics
| Film Thickness | 3 mil (75µ) |
|---|---|
| Adhesive Layer | 1 mil (25µ) |
| Film/Adhesive Ratio | 3:1 |
| UV Protection Factor | Film contains UV stabilizers, which prevent film degradation and provide UV protection to the underlying image |
| Outdoor Durability | Not Applicable |
| Service Temperature Range | -4°F to 203°F (-20°C to 95°C) |
| Peel Strength (20 min, FTM1) | 18 N/25mm |
| Shelf Life | Use within 1 year after opening original box |
| Storage Conditions | 59°F to 72°F (15°C to 22°C); 50 - 55% Relative Humidity |
Process Settings
| Equipment Type | Temperature | Dwell Time |
|---|---|---|
| Roller Laminator | 185°F to 215°F (85°C to 102°C) | 1 ft to 8 ft (0.3m to 2.5m) per minute |
| Press | 185°F to 210°F (85°C to 99°C) Dwell Time: 2-8 minutes | |
