Product Description

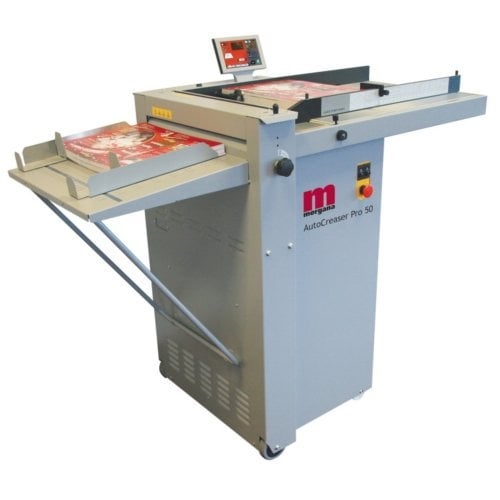

This machine is only available for delivery to our customers in Oregon, Washington & Utah. This product requires installation and training. Please contact us for a quote before purchasing. The Morgana AutoCreaser Pro 50 is a high speed creasing machine that runs at 8,500 8.5" x 11" sheets per hour, and an astonishing 11,000 6.5" x 8.5" sheets per hour. The increased sheet size of 27.5" x 19.6" can be extended with an optional tray making sheet lengths of 35.4" possible. The AutoCreaser Pro 50 has the new intuitive 7" SmartScreen that controls all its main functions. This creaser is very easy to use. Just key in the sheet length (popular sizes are pre-set), touch the fold type for the finished produc (letter, gate etc) and press the green button. The AutoCreaser Pro 50 will automatically calculate where the creases need to be and set them accordingly. Any minor changes to the crease position can be made by touching an arrow in the relevant direction.The AutoCreaser Pro 50 has the new Morgana PosiFeed feeding system. The drum stops as the vacuum pulls the sheet down before the drum starts to feed. This significant change will enable the feeder to be piled higher and feed the most difficult of stocks.All settings and adjustments are made using the new SmartScreen and as only symbols are used, operation couldn’t be simpler. An alpha-numeric memory allows an unlimited number of jobs to be stored and named as you choose. This makes job recall much easier as you can use your own job name and numbers for storage. Any changes to the suction drum, feed method, crease position and engineering settings are all made through the SmartScreen which we have developed and designed to make the AutoCreaser Pro 50 the easiest machine to operate whilst offering levels of sophistication never before seen at this price point. Speed up your creasing job and increase your productivity with Morgana AutoCreaser Pro 50 High Speed Creasing Machine.
Product Details
- 7" SmartScreen touch screen.
- 27.5" x 19.6" sheet size.
- Intuitive and easy to use.
- Fully automatic.
- Up to 16 creases per sheet.
- Takes stock up to 0.015" (approx 150lb cover)*.
- Rule and matrix guaranteed for life.
- 8500 sheets per hour.
- Unlimited alpha numeric memory.
- Adjustable crease depth & square.
- Perforating as standard.
- Crease without cracking.
Specifications
- Maximum sheet size: 27.5" x 19.6" (35.4" x 19.6" with optional extension table)
- Minimum sheet size: 8.2" x 5.5"
- Maximum paper thickness: 0.015" (approx 150lb cover)* including laminated material
- Minimum paper thickness: 0.004" (approx 20lb bond)*
- Maximum number of creases per sheet: 16
- Maximum number programmed applications :Unlimited alpha numeric
- Minimum repeat crease distance: 0.03" (depending on paper weight)
- Minimum crease distance from lead edge: 0.09"
- Minimum crease distance from tail edge: 1.37"
- Speed per hour: 8500 sph (8.5" x 11"), 11,000 sph (6.5" x 8.5")
- Dimensions: L 59" x W 26.8" x H 48"
- Weight: 344lb
- Power requirement: 240v 50/60hz
- Options: Narrow creasing blade, Narrow sheet guide
- Options: the production speed varies according to material size and the number of creases on the sheet
