Product Description

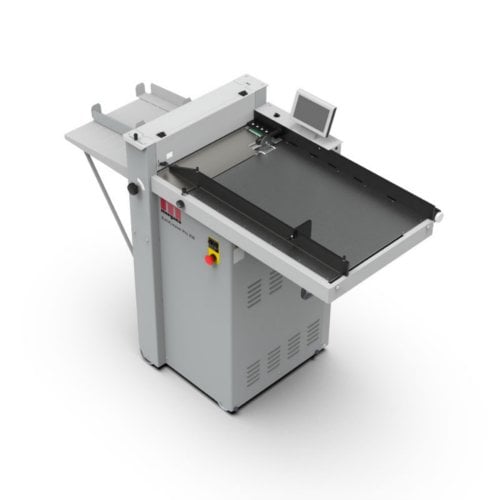

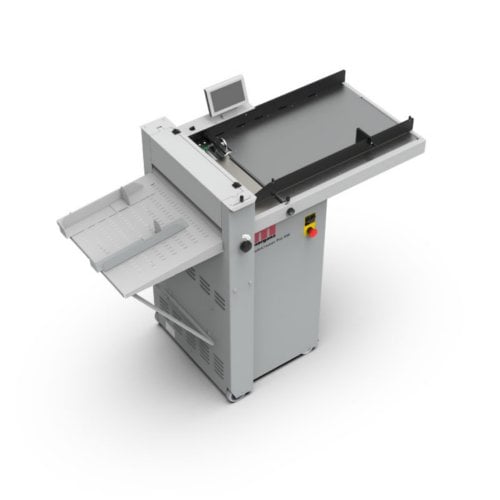

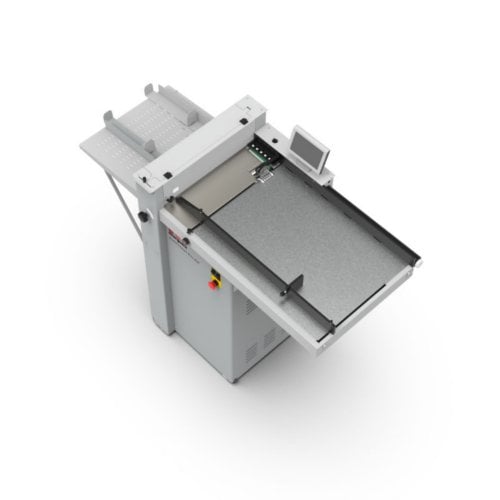

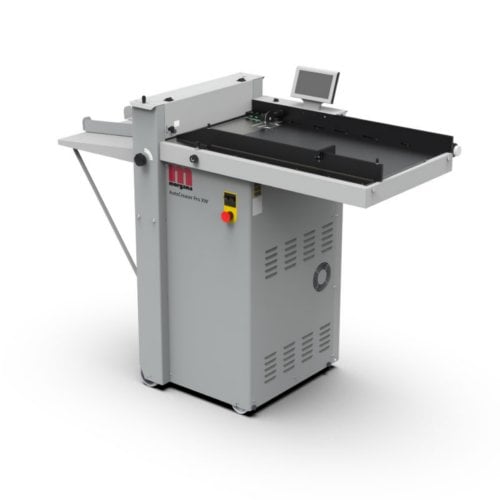

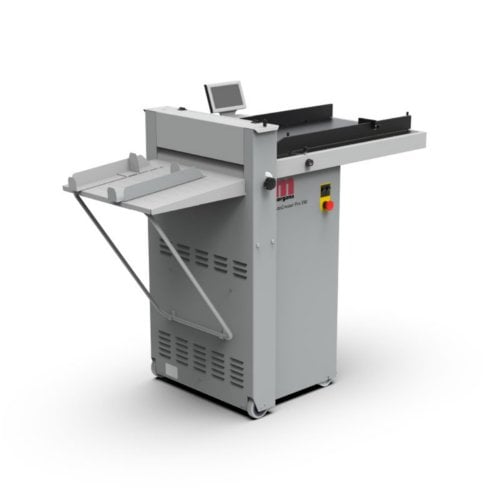

The AutoCreaser Pro XW is the latest in the market for high-speed creasers, running at speeds of up to 8,500 A4 sheets per hour. It is designed to create creases without the cracks that come with folding digitally printed media. A 7” SmartScreen gives access to main functions and adjustments. Creases are auto-calculated once the sheet length and fold type is selected. Store an unlimited number of jobs in the alpha-numeric memory for easy recall and fast programming. Blade removal is easy and tool-free with the Morgana EasyBlade system, it has a quick-release mechanism that allows easy blade removal and changing between jobs in less than 30 seconds. The AutoCreaser Pro XW processes a maximum sheet size of 500mm x 700mm / 19.7” x 27.5” up to 0.4mm / 0.015” thick.
Product Details
- 7" SmartScreen touch screen.
- 27.5" x 19.7" sheet size.
- Intuitive and easy to use.
- Fully automatic.
- Up to 16 creases per sheet.
- Takes stock up to 0.015" (approx 400 gsm).
- Rule and matrix guaranteed for life.
- 8500 sheets per hour.
- Unlimited alpha numeric memory.
- Adjustable crease depth & square.
- Full Cross perf capability up to 19.7" (optional).
Specifications
- Max. Sheet Size: 700 x 500mm / 27.5" x 19.7"
- Min. Sheet Size (in automatic mode): 210 x 140mm / 8.5" x 5.5" (100mm / 3.9" wide sheets supported with 'Narrow Sheet Kit')
- Max. Paper Thickness: 0.4mm / 0.0157" (varies according to hardness, type of fold, and substrate)
- Max. no. Creases Per Sheet: 16
- Min. Distance Between Creases: 0.1mm / 0.004"
- Max. no. Stored Programmes: Unlimited
- Min. Crease Distance from Leading Edge: 2.5mm / 0.1"
- Speed per hour (A4 in half): 8500
- Speed per hour (A5 in half): 11000
- Feeding System: bottom suction feed
- Dimensions: L:1500mm / 59" H: 1224mm / 48.2" W: 682mm / 26.8"
- Weight: 166kg / 365.9lb (+ 50kg / 110.2lb packing)
- Power Requirement: 1 phase 230v 50/60Hz
- Sound Power Level: 78 dB(A)
