Product Description

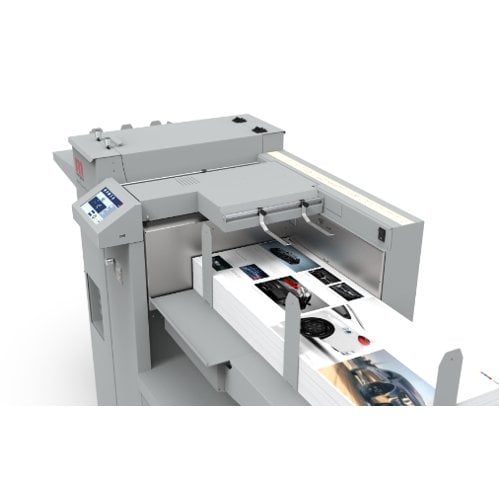

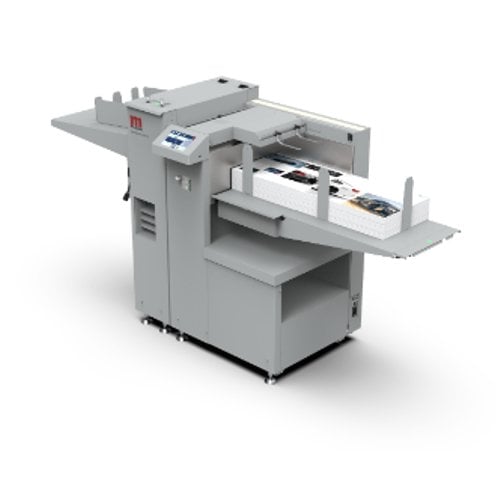

The AutoCreaser Pro XL is a user-friendly paper creasing system with a cost-efficient vacuum top feeder. It features a unique creasing rule that eliminates paper tearing and cracking, leaving a flawless finish. The new Adaptive Process Control (APC) monitors sheet feeding in a closed-loop process to deliver outstanding performance and reliability. Designed to handle the widest range of media, the AutoCreaser XL has an extendable that goes up to 1300mm / 51’’ to support popular longer-sheet applications. Operators of all skill levels can handle the AutoCreaser Pro XL with the help of the intuitive user interface where all settings and adjustments can be made, creases are auto-calculated once the sheet length and fold type is selected. Rotary perforation comes standard on the AutoCreaser Pro range with a wide variety of wheels available to suit all requirements. An optional cross-perforating unit can be added for more complex jobs, and multiple perforation layouts can be achieved with the cross-perforation option.
Product Details
- Edge registered vacuum top feeder with an outstanding load capacity of 7.9”.
- New sheet separation controlled by optical sensor array - automatically adapts to different media, weights and types.
- Automatic feeding parameter selection based on paper size and thickness - simplifies set up regardless of operator skill.
- Ultrasonic double sheet detection.
- Table extendible up to 51" to support popular longer sheet applications.
- Powerful creasing unit can accept standard and narrow creasing blades as well as optional cross perforation blades.
- Optional second creaser enables up/down creasing in one pass.
- Simplified adjustments and blade changeovers without special tools.
- Inline rotary perforation.
- Optional cross perforation unit available.
Specifications
- Max Loading Capacity: 200mm / 7.8" (100mm / 4" for sheet lengths above 700mm / 27.5")
- Max Paper Size W x L: 385mm / 15" x 700mm / 27.5"(385mm / 15" x 1300mm / 51" with extension table)
- Min Paper Size W x L: 93mm / 3.89" x 210mm / 8.25"
- Max Paper Thickness: 400gsm / 0.015"
- Min Paper Thickness: 80gsm / 0.0035"
- Max Sheets Per Hour: 8500
- Max Number of Creases Per Sheet: 30
- Min Crease to Crease Distance: 0.1mm / 0.0039"
- Stacker Capacity: 120
- Stacker Max Paper Size W x L: 385mm / 15" x up to 900mm / 40"
- Footprint with Table Extension: L2540mm / 100" x W730mm / 28.7" x H 1074mm / 45.5"
- Options:
- Cross Perforation Kit
- Narrow creasing blade
- Ultra narrow creasing blade
- Standard Static Creaser Blade (2nd crease blade kit including cross perforation kit)
