Product Description

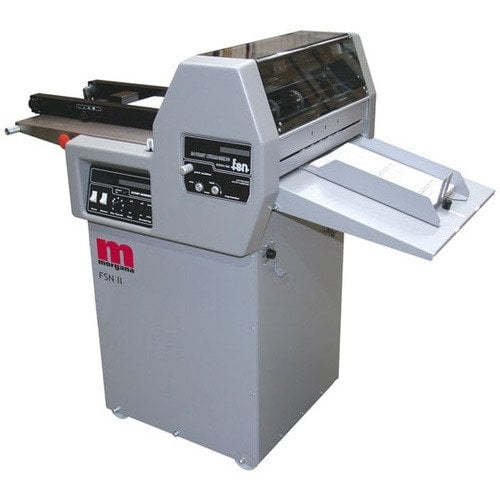

The Morgana FSN Suction Feed Rotary Numbering Machine offers state-of-the-art design, rugged construction and stand-alone operation - freeing you from time consuming numbering on-press. The rotary action is far more productive than that of impact numbering machines because numbering, perforating, scoring or slitting can be accomplished in one pass and without the sheet stopping. The operating principles are similar to those used on litho presses. ‘Point contact’ ensures superb quality on single sheets and unmatched definition when crashing through multi-part sets. Simple adjustment to the platen pressure compensates for varying stock thicknesses. With Morgana FSN, you are assured of sequential numbering because it will not operate until the sheets or sets are correctly presented. This numbering machine has a production speed of 72,000 impressions per hour when using 8 heads,and it has the ability to feed up to 17.9" x 17.9" sheets. The FSN has a powerful suction feeder which will feed a wide range of paper weights. Positive control of the paper from feed to delivery ensures unmatched and consistent register of numbering action.The suction feed system uses electronic pulsing, while feeding from the bottom of the stack allows loading on the run for non-stop production. The FSN control panel allows for fast simple operation with make ready from job to job is accomplished in seconds. Slitting perforators give flat perforating on a wide range of stocks. With the high productivity and unmatched numbering quality, it is no surprise that Morgana FSN Suction Feed Rotary Numbering Machine can make a great impression on your profitability.
Product Details
- Precision-feeding and sheet control.
- Up to 8 parallel or convex heads.
- Full safety enclosures and interlocks.
- High power vacuum and air pump.
- Fast, simple make-ready.
- Imprinting capability.
- Micro-porous ink roll system.
- Perforates & numbers anywhere on the sheet in one pass.
- Adjustable platen pressure.
- 2 perforators & a scorer as standard.
- Electronic sheet spacing.
- Continuous operation.
- Fully mobile.
- Feeds carbonless sets with open & closed edge leading.
Specifications
- Maximum sheet size: 17.9" x 17.9"
- Minimum sheet size: 8.2" x 4.9"
- Maximum paper weight: 7 part carbonless
- Minimum paper weight: 16lb bond
- Speed per hour: 9000
- Maximum number of heads: 8
- Minimum spacing of heads on same collar: 1.96" Parallel head
- Minimum spacing of heads on same collar: 2.89" Convex head
- Minimum spacing of adjacent heads: 2.44" Parallel head
- Minimum spacing of adjacent heads: 1.88" Convex head
- Dimensions: L 35.4" x W 30.7" x H 43.7"
- Weight: 324 lb
- Power requirement: 240v 50/60hz
- Options: Parallel & convex numbering boxes, Black & Red ink, Oscillating inking, Jogger
- Note: the production speed varies according to material size
