Product Description

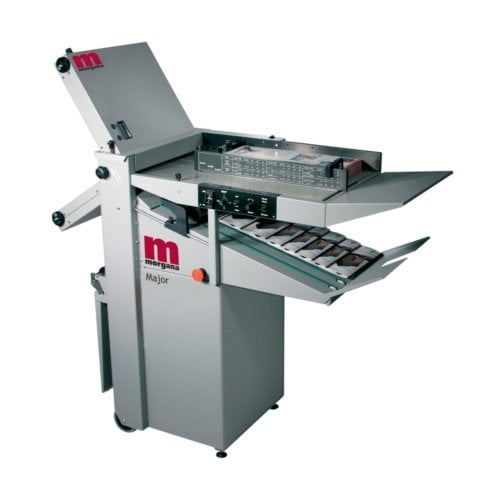

The Morgana Major is a simple to operate air-suction feed folding machine that handle a wide range of paper weights and types of fold. This paper folder will take sheets with dimensions from 5.8" x 5.5" to 25.5" x 14.3" , and will operate at a speed of up to 27,000 sheets (A4 Size) per hour. Its powerful suction feeder handles a wide range of coated or non-coated material and incorporates side lay alignment of the sheets before they enter the fold plates. Its low pressure suction chamber controls curled paper before it enters the fold rollers. Its fold-plate has ‘dial-a-fold’ which enables all adjustments to be made without removing the covers. A LED display accurate to 0.1mm shows the fold plate position and allows easy and accurate repeat job settings. The plug-in perforator/scorer is a standard feature of the Morgana Major and work is delivered into a catch tray. The plug-in unit can be used to act as a roller bypass facility, allowing cover stock to be folded and delivered flat. An optional rear delivery belt stacker is available for longer runs, when used with the roller bypass unit. Completed work is delivered back to the loading position via a long delivery belt stacker. The delivery roller can be adjusted to the optimum position for the sheet size or fold. An operator can easily load or off-load the machine from the same standing position. The fold rollers are extremely durable and have the ability to handle a wide variety of stock without adjustment. Not affected by paper dust, their unique composite material will positively grip high gloss papers or work from digital print engines. With these awesome features stated above, surely the Morgana Major Air-Suction Feed Paper Folder sets the standards in paper folding technology.
Product Details
- Powerful suction feeder handles a wide range of paper weights & sizes.
- Side lay alignment of the sheets, prior to folding.
- Low pressure suction chamber to control curled paper before it enters the fold rollers.
- Fully enclosed fold plates with ‘dial-a-fold’ and LED display, fitted with anti-static brushes, skew and micro adjustments.
- Plug in perforating and scoring attachment.
- Variable speed.
- Tray to catch work when perforating or scoring.
- Long delivery belt stacker.
- Counting & batching.
- Double sheet, anti jam detector.
Specifications
- Maximum sheet size: 25.5" x 14.3"
- Minimum sheet size: 5.8" x 5.5" (3.7" with optional narrow sheet attachment)
- Maximum paper weight: 90lb cover (varies according to material and grain direction)
- Minimum paper weight: 16lb bond
- Load capacity: 500 sheets 22lb bond
- Maximum number programmed applications: 6
- Speed per hour (A4): 0 to 27,000
- Dimensions: L 45.9" x W 19.4" x H 38.9"
- Weight: 264.5 lb
- Power requirement: 240v 50/60hz
- Options: Electric rear delivery, Cross-fold, Narrow sheet guide
- Note: the production speed varies according to material size
