Product Description

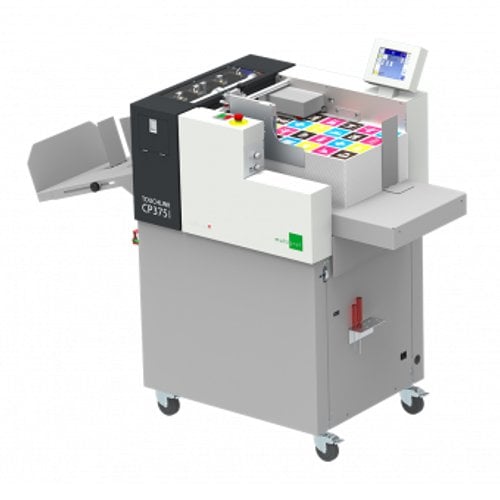

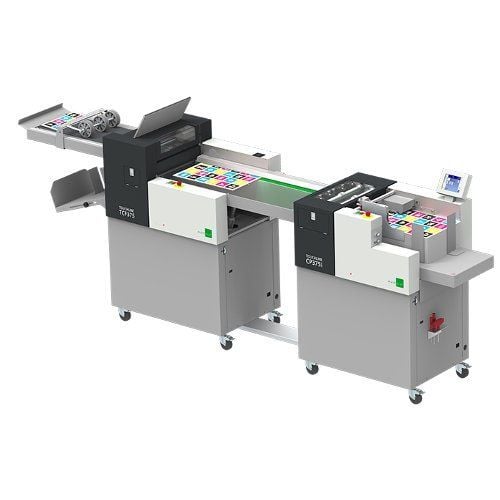

With Multigraf Touchline CP375 Mono and TF375 Folding, you can automate and expand your business. The Multigraf Touchline CF375 MONO is a versatile device that combines perforating and creasing functions into a single machine. It simplifies the process by allowing users to input the required information through a touch screen interface, which then automatically configures the machine settings accordingly. This feature enables a fast production start and eliminates the need for manual adjustments. The machine includes a pile feeder with a vacuum belt and air knife control. This combination ensures a seamless separation of paper without requiring an additional air compressor. One notable feature of the CF375 MONO is the implementation of the Multigraf Swingbar System for creasing. This system enables creasing without causing any breakage in the paper, resulting in clean and professional-looking creases. Additionally, the CF375 MONO can easily switch between being a creasing or perforating machine using interchangeable tools. This versatility allows for quick transitions between different tasks without significant downtime. In terms of its creasing and perforating capabilities, the Touchline CP375 MONO is capable of handling stocks up to 400 gsm (grams per square meter). This means it can efficiently process a wide range of paper and cardstock thicknesses, providing versatility in finishing various print materials.By combining the TF375 Folder even more complex jobs can be done easily. In a single operation, fold documents that have already undergone a two-way micro-perforation on the CP375 DUO.
Product Details
- Simple menu-driven operation. All important settings can be made centrally, directly via the touchscreen.
- For operation, all models are fitted with an automatic, ergonomic control panel during production.
- The inserted tools are detected electronically and the required pressure is automatically adjusted.
- Options:
- Table extension.
- For longitudinal perforation CP375 DUO can be equipped with up to 4 perforating heads. Touchscreen operated.
Specifications
- Feeding:
- Feeding System: Suction feeding
- Feeding Capacity: 180 mm (7.09")
- Minimum Paper Size: 105 x 148 mm (4.13 x 5.83")
- Maximum Paper Size: 375 x 660 mm (14.76 x 25.98"), 375 x 1050 mm (14.76 x 41.34") with the extension table
- Double Sheet Detection: Ultra sonic
- Perforation:
- Recommended Paper Weight for Perforation: 80 to 300 gsm or up to 0.3mm (Depends on material quality.)
- Perforating System: Multigraf Quick-Set interchangeable tool
- Perforation Cross Tools:
- Tool Detection: Automatic
- Pressure Adjsutment: 3 depth settings
- Standard Tool: 1 perforation tool, 11 TPI
- Additional Tool: Perforation blade 17 TPI and 26 TPI (option), Selective perforation (en option)
- Amount of Application: Up to 20 per sheet
- Minimum Distance Between 2 perforations: 3 mm
- Selective Job: yes (option)
- Perforation Longitudinal Tools:
- Perforation Max. 4 tools that can be used simultaneously
- Standard Perforation: 11 TPI (option: 17 TPI / 26 TPI)
- Minimum Distance: 30 mm (1.18"), between 2 tools
- Minimum Distance in Selective: 5 mm
- Amount of Application in Selective: 1-5 per head
- Creasing:
- Recommended Paper Weight for Creasing: 80 to 400 gsm or up to 0.4mm (Depends on material quality)
- Creasing System: Multigraf Quick-Set interchangeable tool
- Creasing Cross Tools:
- Tool Detection: Automatic
- Pressure Adjsutment: 3 depth settings
- Standard Tool: 1 negative creasing tool
- Additional Tool: Positive creasing (option on CP Mono)
- Amount of Creases: Up to 20 per sheet
- Minimum Distance Between 2 Creases: 1 mm
- Machines:
- Operating Unit: Color touch screen
- Output Conveyor: L = 1 100 mm (article number 482.112: option)
- Reception Capacity: 120 mm (4.72")
- peed (Sheet/Hour): Up to 6 000, depends on the application
- CP375 Mono Dimensions (L x W x H): 1560 x 610 x 1200mm (61.42 x 24.02 x 47.24")
- CP375 Duo Dimensions (L x W x H): 1650 x 610 x 1200mm (65 x 24.02 x 47.24")
- CP375 Mono Weight: 140 kg (308.65 lbs)
- CP375 Duo Weight: 164 kg (361.56 lbs)
- Power Supply: 100-240V, 50/60 Hz
