Product Description

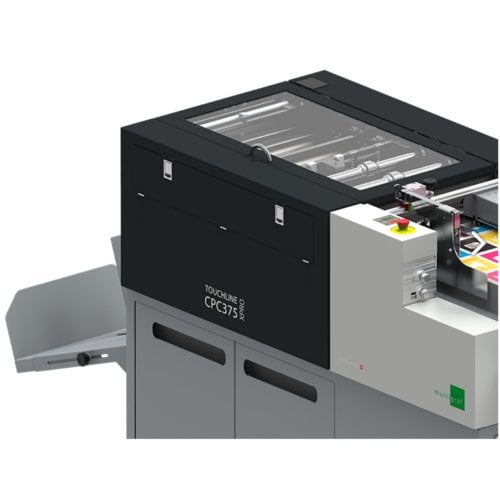

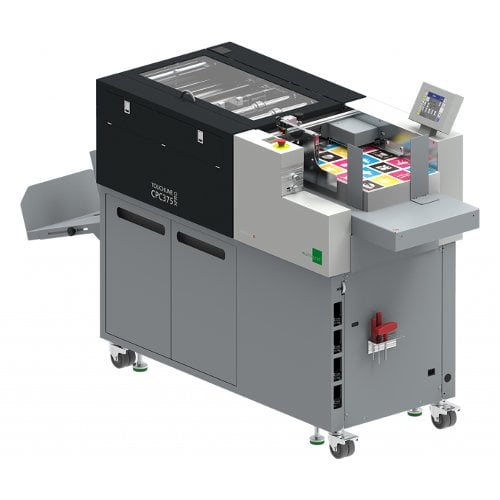

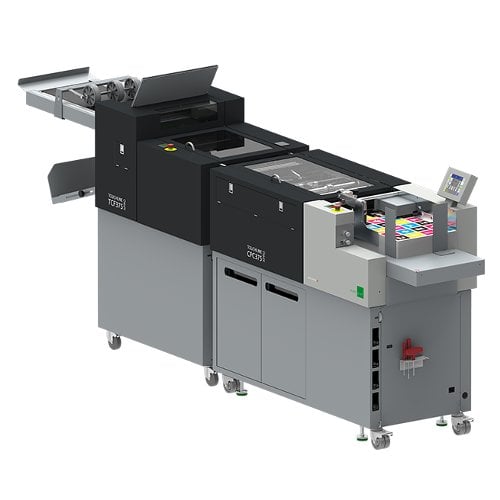

The Multigraf Multifinisher Touchline CPC375 XPRO plus TF375 Folder is an advanced machine that revolutionizes the industry with its wide range of capabilities and efficient design. The Multifinisher Touchline CPC375 XPRO offers a comprehensive set of finishing options, including up and down creasing, perforating crossways and lengthways, cutting and slitting, and folding (including 2 or 3-up configurations). The CPC375 XPRO operates at high speed, enabling rapid production. It can finish an 8-page brochure in just a few seconds, demonstrating its exceptional speed and efficiency. With a capacity ranging from 80 to 400 gsm (grams per square meter), the machine can handle a wide range of paper weights. It also incorporates a barcode reader, which interprets job information encoded in barcodes. This feature eliminates the need for manual intermediate steps by automating job interpretation and ensures accurate and efficient processing. The setup process is simplified and time-efficient, thanks to the touch screen control panel. Within a few seconds, users can configure the machine for specific jobs. By combining the TF375 Folder even more complex jobs can be done easily. In a single operation, fold documents that have already undergone a two-way micro-perforation on the CP375.
Product Details
- Cutting, slitting, perforating and creasing in one pass!
- Time perforation in both directions.
- Length and cross perforations.
- Up & down creasing.
- Dynamic job creator.
- Barcode reader.
Specifications
- Operating Unit: Color touch screen
- Deliveries:
- Delivery tray
- Business card module
- Stream delivery with stop and go function
- Capacity of business card tray: 3 x 100 mm / 1000 cards (thickness 0.3 mm)
- Job storage: 200
- Speed (sheet/hour): Up to 6 000, depends on the application
- Automatic job detection: Barcode reader
- Machine Dimensions (L x W x H): 2010 x 600 x 1200mm (79.13 x 23.62 x 47.24")
- Machine Weight: 265 kg (584.23 lbs)
- Power supply: 100-240V, 50/60 Hz
- Feeding:
- Feeding system: Vacuum infeed belts
- Feeding capacity: 180 mm (7.09")
- Minimum paper size: 105 x 148 mm (4.13 x 5.83")
- Maximum paper size: 375 x 660 mm (14.76 x 25.98") or 375 x 1050 mm (14.76 x 41.34") with the extension table
- Double sheet detection: Ultra sonic
- Creasing and Perforating:
- Recommended paper weight for creasing: 80 to 400 gsm or up to 0.4mm (Depends on material quality.)
- Recommended paper weight for perforating: 80 to 300 gsm or up to 0.3mm (Depends on material quality.)
- Perforating knife: 11 TPI - Optional: 17/26 TPI
- Perforating blade: 11 TPI - Optional: 17/26 TPI
- Creasing: Negative crease standard (Optional: positive crease)
- Tool detection: Automatic
- Tool calibration: Automatic
- Creasing depths: 3 different positions - adjustable on screen
- Creasing options: Turnable creasing bar with two options - Total of 6 creasing options
- Minimum distance between 2 creases: 1 mm
- Minimum distance between 2 perforations: 3 mm
- Perforating heads: 1-4 (optional)
- Perforating min. distance from head to head: 30 mm (1.18")
- Min. length of time perforation: 5 mm - Programmable on screen
- Amount of time perforation: Up to 5 - Programmable on screen
- Cutting and Slitting:
- Cross Cutter:
- Front edge - 3 to 120 mm (0.12 to 4.72")
- Trailing edge - 3 to 80 mm (0.12 to 3.15")
- Gutter cut - 3 to 40 mm (0.12 to 1.57")
- Slitting Heads:
- Max. amount of slitters - 6 (Fully automatic setting)
- Margin OP - 3 to 70 mm (0.12 to 2.76")
- Margin NOP - 3 to 45 mm (0.12 to 1.77")
- Gutter - 5 to 25 mm (0.2 to 0.98")
- Capacity of waste bin - 88 liter
- Cross Cutter:
