Product Description

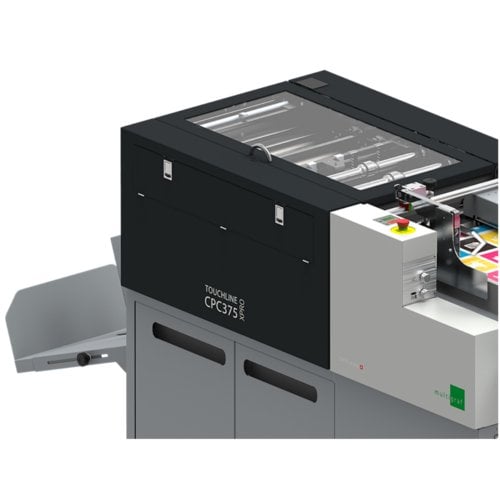

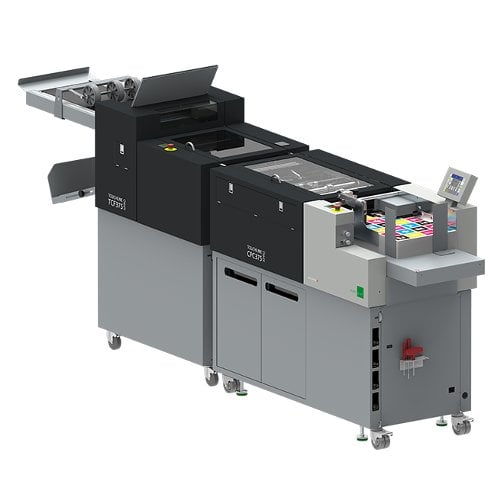

The Multigraf Touchline TCF375 Creasing & Folding Machine is intended to be used in conjunction with the Multigraf Touchline CP375 Mono or Duo creasing and perforating machine. This combination allows for easy execution of more complex jobs. In a single operation, documents that have undergone a two-way micro-perforation or creasing on the CP375 can be further creased and folded. This application is ideal and recommended for production of photo books, coupons and reply cards, postcards, entrance tickets, vouchers, and other similar items.
Product Details
- Cutting, slitting, perforating and creasing in one pass!
- Time perforation in both directions.
- Length and cross perforations.
- Up & down creasing.
- Dynamic job creator.
- Barcode reader.
- Expandable with a folding machine TCF375 XPRO.
Specifications
- Operating Unit: Color touch screen
- Deliveries:
- Delivery tray
- Business card module
- Stream delivery with stop and go function
- Capacity of business card tray: 3 x 100 mm / 1000 cards (thickness 0.3 mm)
- Job storage: 200
- Speed (sheet/hour): Up to 6 000, depends on the application
- Automatic job detection: Barcode reader
- Machine Dimensions (L x W x H): 2010 x 600 x 1200mm (79.13 x 23.62 x 47.24")
- Machine Weight: 265 kg (584.23 lbs)
- Power supply: 100-240V, 50/60 Hz
- Feeding:
- Feeding system: Vacuum infeed belts
- Feeding capacity: 180 mm (7.09")
- Minimum paper size: 105 x 148 mm (4.13 x 5.83")
- Maximum paper size: 375 x 660 mm (14.76 x 25.98") or 375 x 1050 mm (14.76 x 41.34") with the extension table
- Double sheet detection: Ultra sonic
- Creasing and Perforating:
- Recommended paper weight for creasing: 80 to 400 gsm or up to 0.4mm (Depends on material quality.)
- Recommended paper weight for perforating: 80 to 300 gsm or up to 0.3mm (Depends on material quality.)
- Perforating knife: 11 TPI - Optional: 17/26 TPI
- Perforating blade: 11 TPI - Optional: 17/26 TPI
- Creasing: Negative crease standard (Optional: positive crease)
- Tool detection: Automatic
- Tool calibration: Automatic
- Creasing depths: 3 different positions - adjustable on screen
- Creasing options: Turnable creasing bar with two options - Total of 6 creasing options
- Minimum distance between 2 creases: 1 mm
- Minimum distance between 2 perforations: 3 mm
- Perforating heads: 1-4 (optional)
- Perforating min. distance from head to head: 30 mm (1.18")
- Min. length of time perforation: 5 mm - Programmable on screen
- Amount of time perforation: Up to 5 - Programmable on screen
- Cutting and Slitting:
- Cross Cutter:
- Front edge - 3 to 120 mm (0.12 to 4.72")
- Trailing edge - 3 to 80 mm (0.12 to 3.15")
- Gutter cut - 3 to 40 mm (0.12 to 1.57")
- Slitting Heads:
- Max. amount of slitters - 6 (Fully automatic setting)
- Margin OP - 3 to 70 mm (0.12 to 2.76")
- Margin NOP - 3 to 45 mm (0.12 to 1.77")
- Gutter - 5 to 25 mm (0.2 to 0.98")
- Capacity of waste bin - 88 liter
- Cross Cutter:
