Product Description

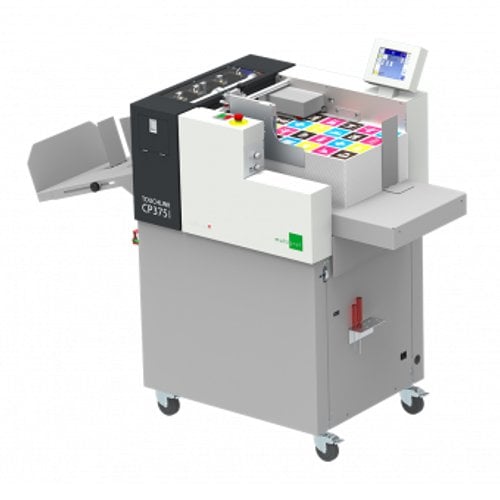

The Multigraf Touchline CP375 offers creasing, perforating and partial cutting in both directions. This opens the way for many applications demanded by the market: coupons and response cards, postcards, entrance tickets, vouchers. The possibilities are vast. The system enables perforating (standard and stop perforation, longitudinally or crosswise) and professional creasing. Positive and negative creasing are also possible. Tool changing is a formality thanks to the patented, fully-automatic changing device. The inserted tools are detected electronically and the required pressure is automatically adjusted.
Product Details
- Simple menu-driven operation. All important settings can be made centrally, directly via the touchscreen.
- For operation, all models are fitted with an automatic, ergonomic control panel during production.
- The inserted tools are detected electronically and the required pressure is automatically adjusted
- Options:
- Available with High Pile Feeder (26in)
- Table extension
- For longitudinal perforation CP375 DUO can be equipped with up to 4 perforating heads. Touchscreen operated
Specifications
- Feeding:
- Feeding System: Suction feeding
- Feeding Capacity: 180 mm (7.09")
- Minimum Paper Size: 105 x 148 mm (4.13 x 5.83")
- Maximum Paper Size: 375 x 660 mm (14.76 x 25.98"), 375 x 1050 mm (14.76 x 41.34") with the extension table
- Double Sheet Detection: Ultra sonic
- Perforation:
- Recommended Paper Weight for Perforation: 80 to 300 gsm or up to 0.3mm (Depends on material quality.)
- Perforating System: Multigraf Quick-Set interchangeable tool
- Perforation Cross Tools:
- Tool Detection: Automatic
- Pressure Adjsutment: 3 depth settings
- Standard Tool: 1 perforation tool, 11 TPI
- Additional Tool: Perforation blade 17 TPI and 26 TPI (option), Selective perforation (en option)
- Amount of Application: Up to 20 per sheet
- Minimum Distance Between 2 perforations: 3 mm
- Selective Job: yes (option)
- Perforation Longitudinal Tools:
- Perforation Max. 4 tools that can be used simultaneously
- Standard Perforation: 11 TPI (option: 17 TPI / 26 TPI)
- Minimum Distance: 30 mm (1.18"), between 2 tools
- Minimum Distance in Selective: 5 mm
- Amount of Application in Selective: 1-5 per head
- Creasing:
- Recommended Paper Weight for Creasing: 80 to 400 gsm or up to 0.4mm (Depends on material quality)
- Creasing System: Multigraf Quick-Set interchangeable tool
- Creasing Cross Tools:
- Tool Detection: Automatic
- Pressure Adjsutment: 3 depth settings
- Standard Tool: 1 negative creasing tool
- Additional Tool: Positive creasing (option on CP Mono)
- Amount of Creases: Up to 20 per sheet
- Minimum Distance Between 2 Creases: 1 mm
- Machines:
- Operating Unit: Color touch screen
- Output Conveyor: L = 1 100 mm (article number 482.112: option)
- Reception Capacity: 120 mm (4.72")
- peed (Sheet/Hour): Up to 6 000, depends on the application
- CP375 Mono Dimensions (L x W x H): 1560 x 610 x 1200mm (61.42 x 24.02 x 47.24")
- CP375 Duo Dimensions (L x W x H): 1650 x 610 x 1200mm (65 x 24.02 x 47.24")
- CP375 Mono Weight: 140 kg (308.65 lbs)
- CP375 Duo Weight: 164 kg (361.56 lbs)
- Power Supply: 100-240V, 50/60 Hz
