Product Description

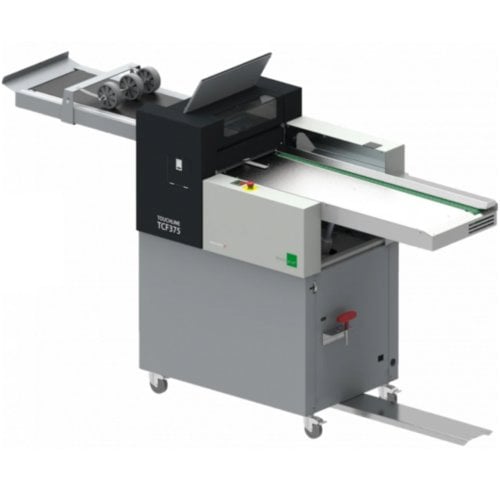

The Multigraf Touchline TCF375 Creasing & Folding Machine is intended to be used in conjunction with the Multigraf Touchline CP375 Mono or Duo creasing and perforating machine. This combination allows for easy execution of more complex jobs. In a single operation, documents that have undergone a two-way micro-perforation or creasing on the CP375 can be further creased and folded. This application is ideal and recommended for production of photo books, coupons and reply cards, postcards, entrance tickets, vouchers, and other similar items.
Product Details
- Exit conveyor: 820 mm (32.28")
- Reception capacity: 120 mm (4.72")
- Speed (sheet/hour): 6000
- TCF375 dimensions (L x W x H): 1860 x 610 x 1320 mm (73.23 x 24.02 x 52")
- TCF375 + CP375 dimensions (L x W x H): 3170 x 610 x 1320 mm (124.8 x 24.02 x 52")
- TCF375 weight: 180 kg (396.83 lbs)
- TCF375 + CP375 weight: 365 kg (804.69 lbs)
- Power supply: 100-240V, 50/60 Hz
- Feeding:
- Feeding system: Vacuum Belt
- Minimum paper size: 105 x 148 mm (4.13 x 5.83")
- Maximum paper size: 375 x 660 mm (14.76 x 25.98") 375 x 1050 mm (14.76 x 41.34") with the extension table
- Creasing:
- Recommended paper weight for creasing: 80 to 400 gsm or up to 0.4mm
- Creasing system: Creasing Bar
- Creasing types: 2
- Creasing depth: 3, automatic adjustment for each type
- Amount of creases: 20
- Distance between 2 creases: 30 mm
- Folding:
- Folding system: Multigraf Pro-Knife
- Amount of folds: 2
- Minimum length of the fold: 30 mm
- Maximum length of the fold: 500 mm
